Allen-Bradley 2707-MVP232 - Catalog No. 1761-CBL-HM02, 2707-NC11

Publication 2707-UM005B-EN-P
MicroView Cable Diagrams B-3
Catalog No. 1761-CBL-HM02, 2707-NC11

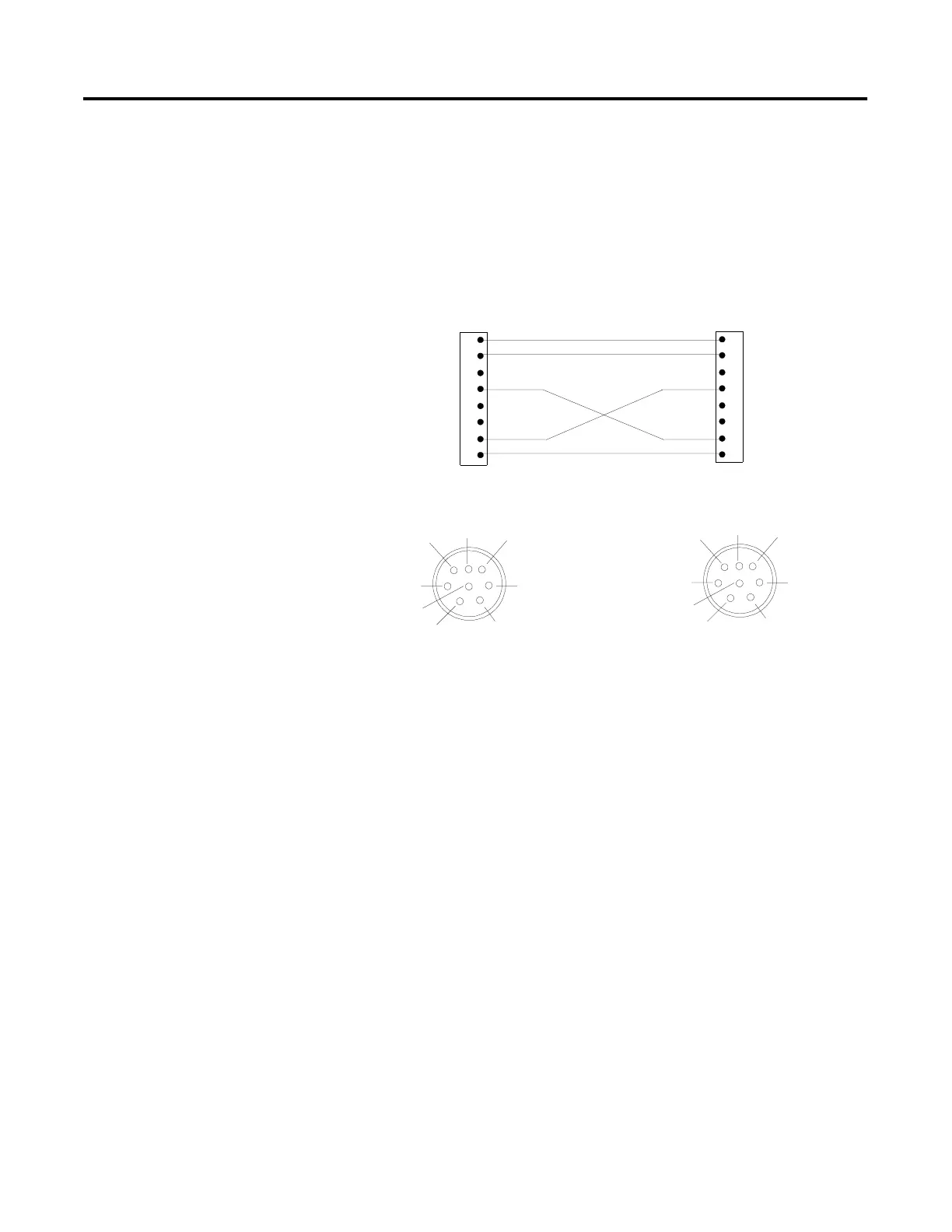

Use the MicroLogix communications cable to connect the MicroView
to the MicroLogix controller for run-time operations. This cable is
wired the same as Catalog No. 2707-NC9 except it is 2 meters long.
Connects to MicroView
Communications Port
Connects to MicroLogix Controller
Communications Port
+24V dc
DC Com
Data In (RXD)
Data Out (TXD)
Signal Ground
+24V dc
DC Com
Data In (RXD)
Data Out (TXD)
Signal Ground
8-Pin Male C DIN Connector
8-Pin Male C DIN Connector
1
2
5
8
7
6
3
4
1
2
5
8
7
6
3
4
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
