Publication 1785-UM012D-EN-P - July 2005

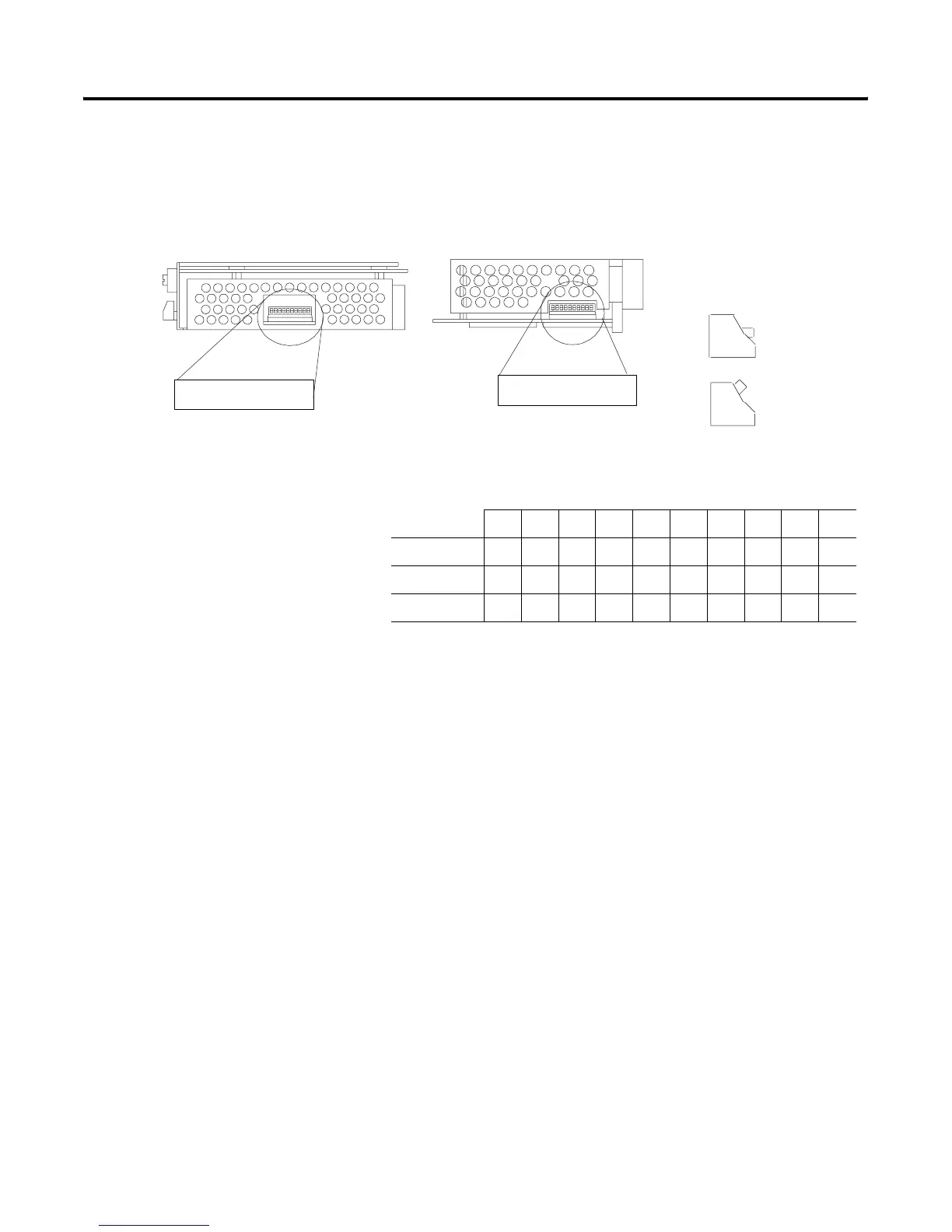

Switch Setting Reference E-3

Switch 2

Front of

Processor

Front of

Processor

Bottom View of PLC-5/11, -5/20, -5/26, and

-5/20E processors Switch Assembly SW2

Bottom View of PLC-5/30, -5/40, -5/46 -5/40L, -5/60, -5/60L, -5/80,

-5/86, -5/40E, and -5/80E processors Switch Assembly SW2

toggle pushed

off

Side View

toward bottom

toward top

12345 678 9 10

12 3 4 5 6 7 8 9 10

To Specify: Set Switches:

1 2 3 4 5 6 7 8 9 10

RS-232C on on on off off on on off on off

RS-422A off off on off off off off off on off

RS-423 on on on off off on off off on off
