Allen-Bradley SLC 500 Series User Manual

Publication 1747-RM001G-EN-P - November 2008
Understanding Interrupt Routines 11-5

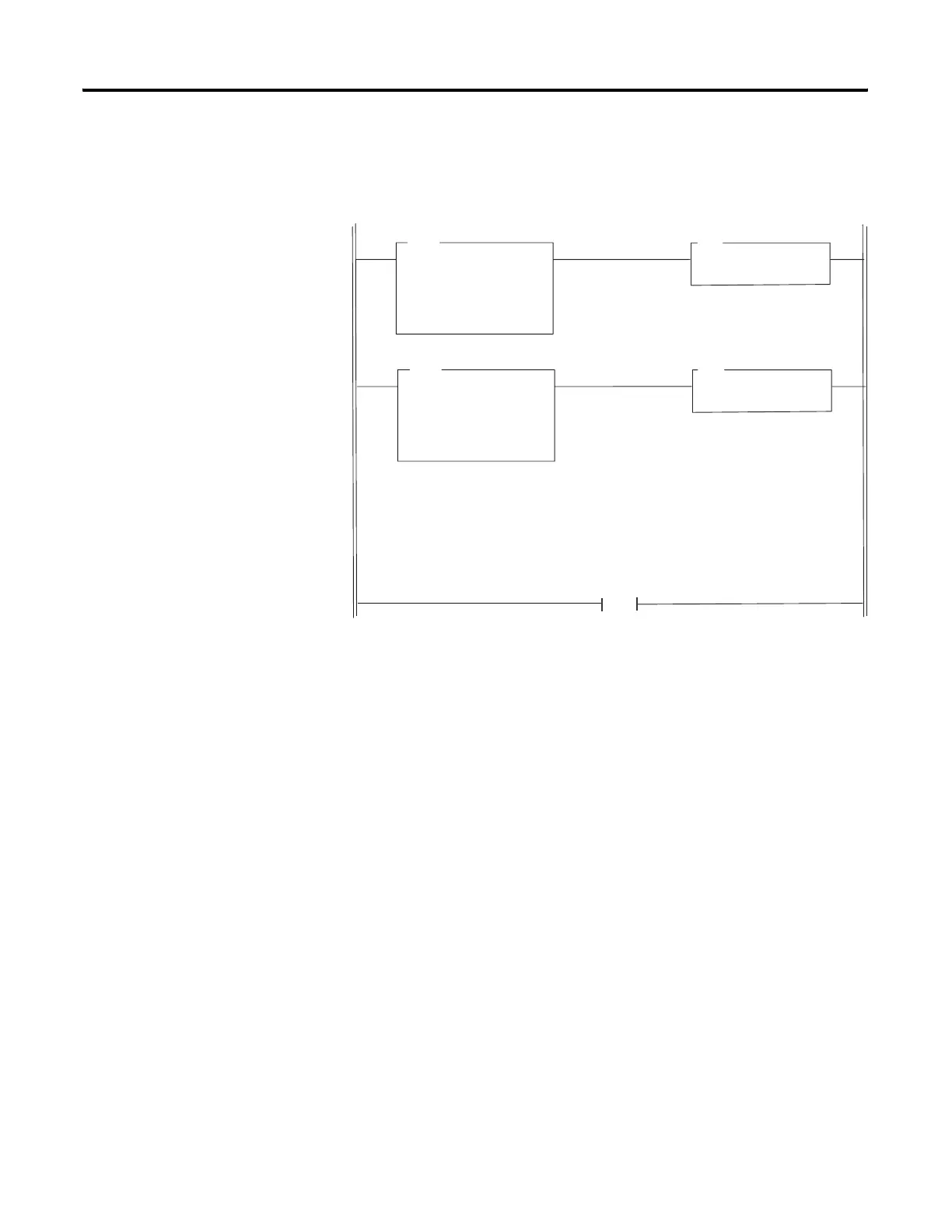

Fault Routine - Subroutine File 3
EQU
EQUAL
Source A S:6
0
Source B 52
END
JSR
JUMP TO SUBROUTINE
SBR file number 5
EQU
EQUAL
Source A S:6
0
Source B 32
JSR
JUMP TO SUBROUTINE
SBR file number 4
Word S:6 is the fault code (in decimal).
Fault Code 0020
(Enter &H20. Decimal
equivalent 32 appears.)
Fault Code 0034
(Enter &H34. Decimal
equivalent 52 appears.)

Allen-Bradley SLC 500 Series Specifications

General

Programming Software	RSLogix 500
Series	SLC 500
Category	Controller
Manufacturer	Allen-Bradley (Rockwell Automation)
I/O Capacity	Up to 4096 I/O points
Communication Ports	DH-485
Programming Languages	Ladder Logic
Operating Temperature	0 to 60 °C (32 to 140 °F)
Relative Humidity	5% to 95% (non-condensing)
Memory	4K to 64K words (depending on the processor)
Power Supply	AC or DC (depending on the module)
