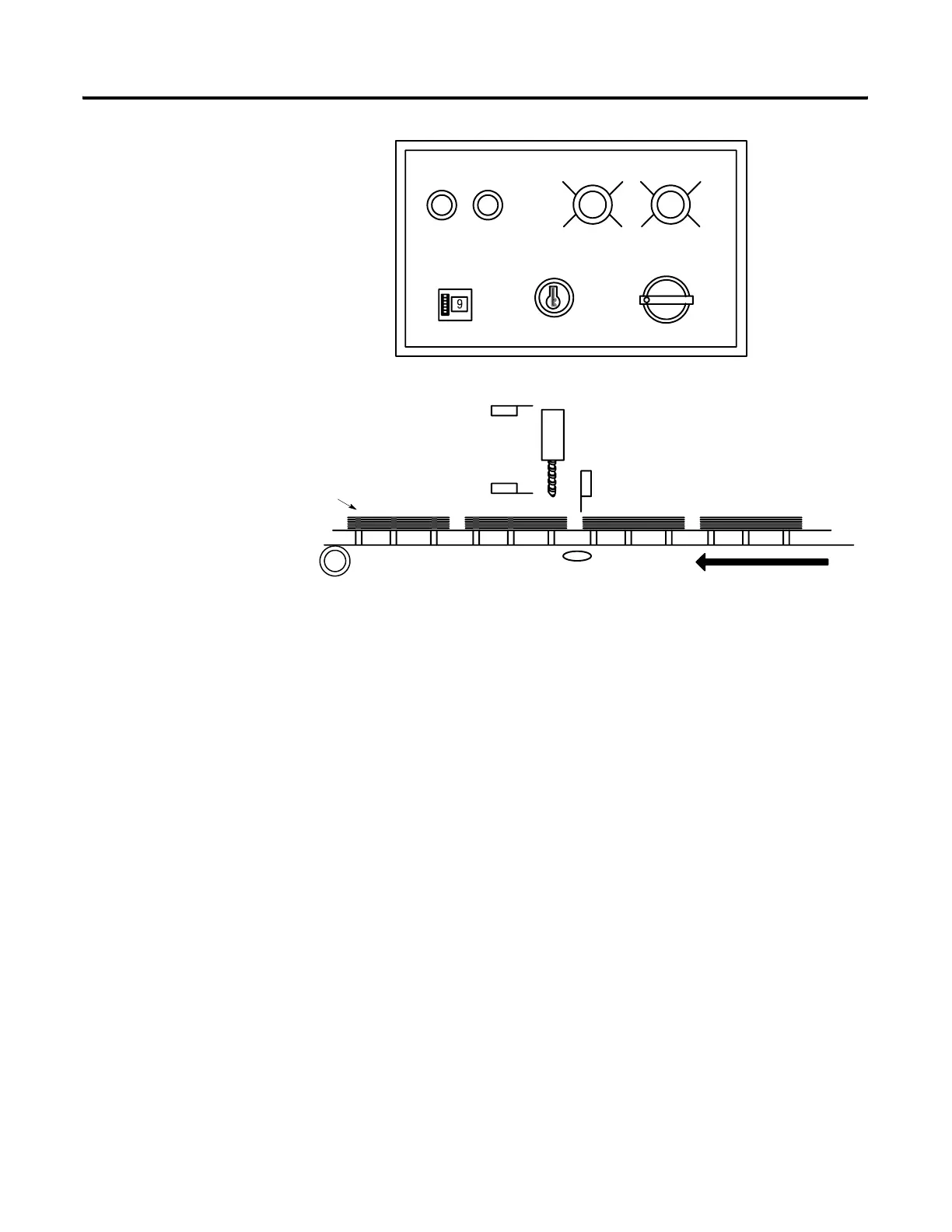

G-2 Application Example Programs
OPERATOR PANEL
Start I:1/6
Stop I:1/7
Change Drill Soon
O:3/4
Change Drill Now
O:3/6
Thumbwheel for
Thickness in 1/4 in.
Drill Change Reset
5 Hole
7 Hole
3 Hole
I:1/9-I:1/10
(Keyswitch)
I:1/8
I:1/11-I:1/14
Drill On/Off O:3/1
Drill Retract O:3/2
Drill Forward O:3/3
Drill Home
I:1/5
Drill Depth
I:1/4
Photo-Eye Reset I:1/2
Counter Hold I:1/3
Drilled
Holes
Quadrature A-B Encoder and Drive
I:1/0 I:1/1
Photo-Eye
Reflector
Conveyor Enable wired in series to the Drive O:3/5
Conveyor Drive Start/Stop wired in series to the Drive O:3/0
