G-4 Application Example Programs

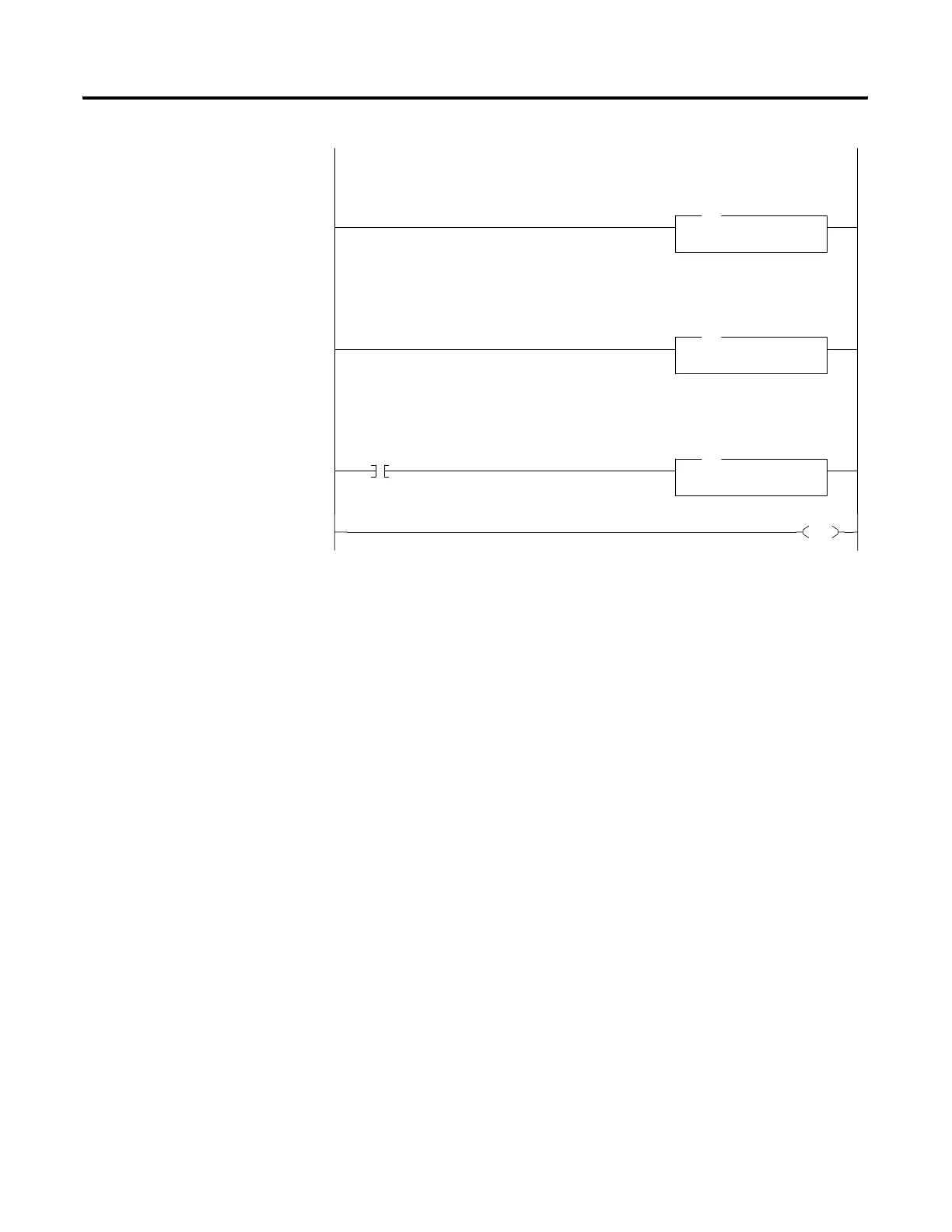

The following rung will call the drill sequence subroutine. The subroutine manages the operation of
the drilling sequence and will restars the conveyor upon completion of the drilling
sequence.
0003
JSR
Jump T o Subroutine
SBR File Number U:6
JSR
The following rung will call the subroutine that is used to track the amount of wear on the current
drill bit.
0004
JSR
Jump T o Subroutine
SBR File Number U:7
JSR
The following rung will call the subroutine used to initialize logic neseccary for the DII on power up.
0005
S:1
15
First Pass
JSR
Jump T o Subroutine
SBR File Number U:4
JSR
0006
END
To Next Page
