Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 357

Configure Switch Features Chapter 7

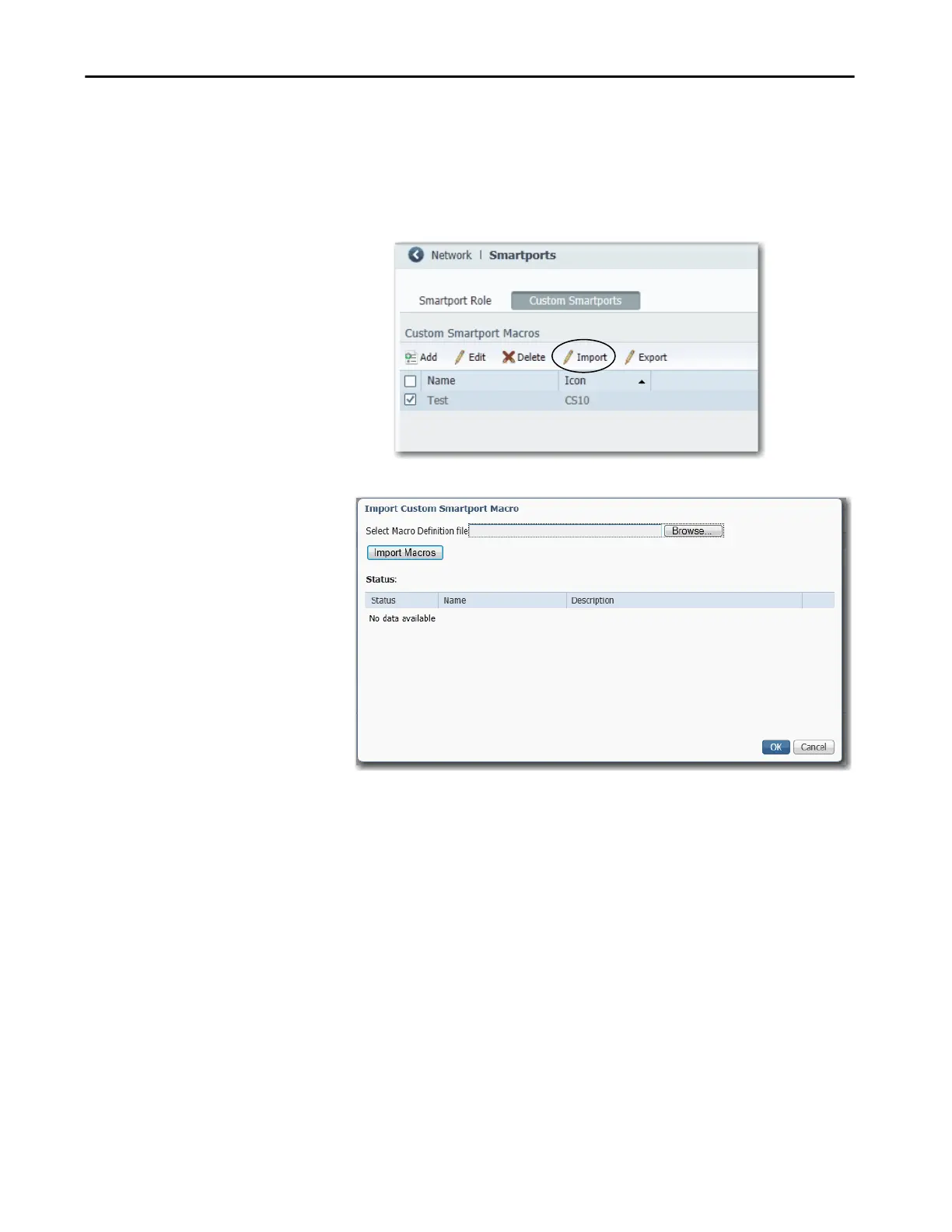

Import a Custom Smartports Macro

1. From the Configure menu, choose Smartports.

2. Click the Custom Smartports tab.

3. Click Import.

4. Click Browse.

5. Select the macro file on your computer or network drive.

The file must be an appropriately formatted .xml file.

6. Click Import Macros.

7. Click OK.
