Manage the Switch via the Device Manager Web Interface Chapter 3

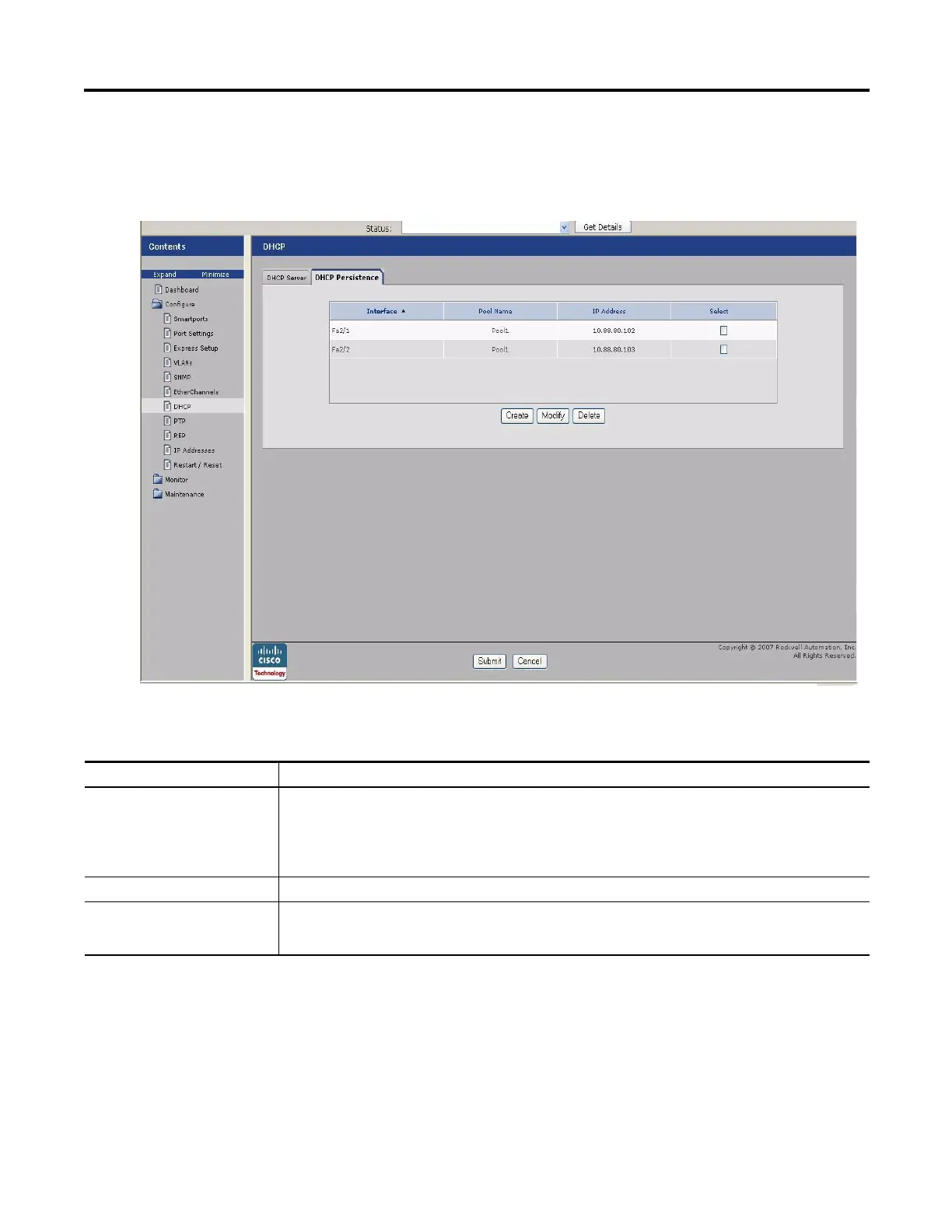

Use the DHCP Persistence dialog box to assign, modify, or delete a switch port
IP address.
1. Click the DHCP Persistence tab.
2. Enter DHCP Persistence settings, as appropriate.
D
3. Click Done.
DHCP Persistence Settings
Setting Description
Interface The number of the switch port, including port type (such as Fa for Fast Ethernet and Gi for Gigabit Ethernet), the
base switch or the switch expansion module number (1, 2, or 3), and the specific port number. For example:
Fa1/1 is Fast Ethernet port 1 on the base switch.
Fa2/1 is Fast Ethernet port 1 on the first switch expansion module.
Fa3/1 is Fast Ethernet port 1 on the second switch expansion module.
Pool Name The name of the DHCP IP address pool configured on the switch.
IP Address The IP address assigned to the switch port. The IP address that you assign is reserved for the selected port and is
not available for normal DHCP dynamic assignment. The IP address must be an address from the pool specified in
the DHCP Pool Name field.
