3–22 Copyright © 1996 General Motors Corp.
AT 500, 1500 SERIES AUTOMATIC TRANSMISSIONS

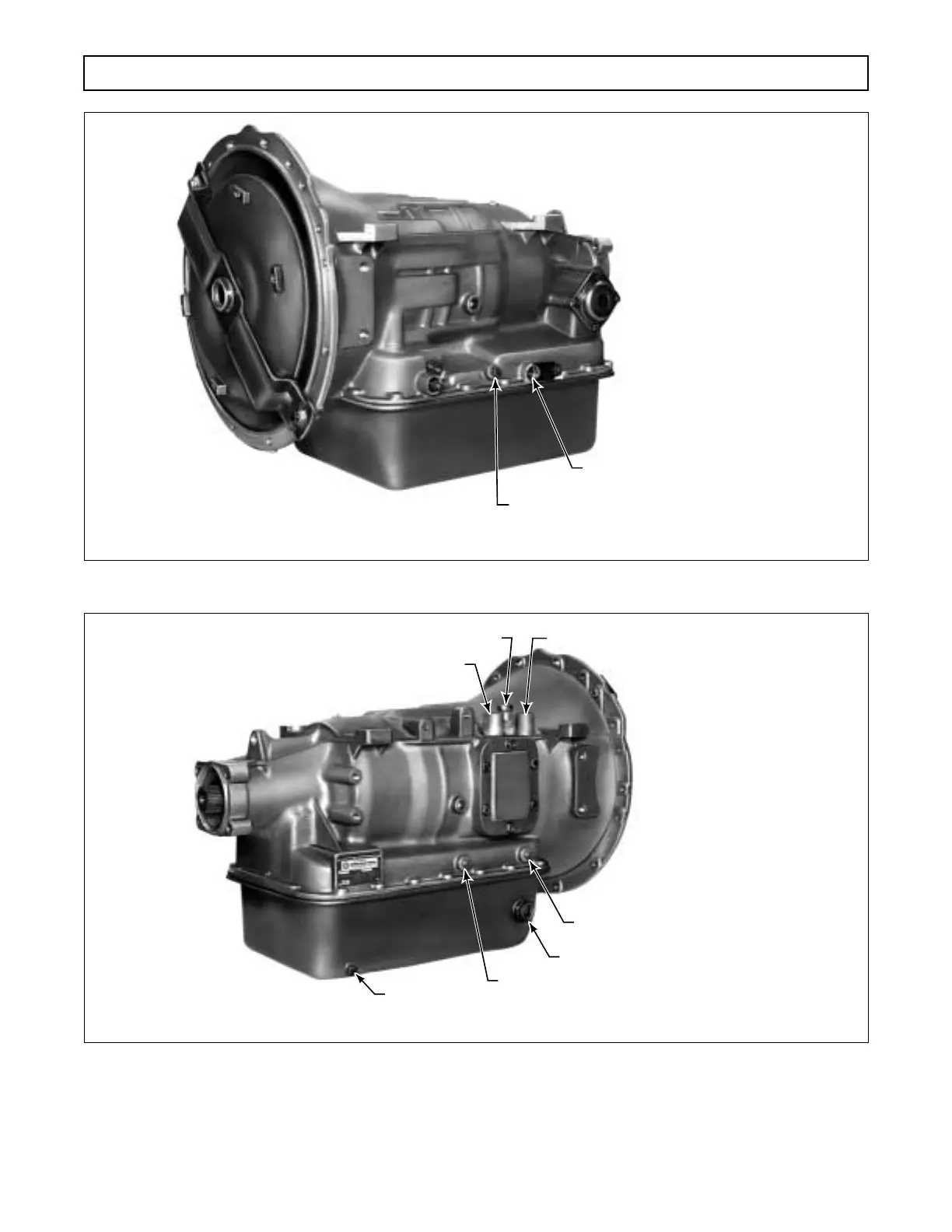

Figure 3–11. Transmission Check Points
Figure 3–12. Transmission Check Points (Models Without Retarder)
H02887
MODULATOR ACCESS
(MECHANICAL OR VACUUM)
MAIN PRESSURE
H02888
REVERSE SIGNAL
PRESSURE
LOCKUP PRESSURE
(AT 1500 SERIES)
OIL FILL TUBE
DRAIN PLUG
TO COOLER
FROM COOLER
(AUXILIARY FILTER)
BREATHER
