6–4 Copyright © 1996 General Motors Corp.
AT 500, 1500 SERIES AUTOMATIC TRANSMISSIONS
(10) Remove the needle bearing assembly and
bearing race from the converter pump (Figure 6–8).
(11) Flatten the corners of lockstrips 29
(Foldout 7,A). Remove eight bolts 28 and the lock-
strips.
(12) Remove hub 30 and gasket 31 from con-
verter pump 35.
(13) Do not remove bolts 36 unless new bolts
are needed.
NOTE:
•
If needle bearing assembly 24 needs replacement
but stator assembly 16 does not need to be re-
placed, proceed to Paragraph 6–4
c
.
•
If stator and bearing assembly 15 is damaged,
replace the assembly.
c. Replacement of Needle Bearing
Assembly in Stator Assembly
(1) Place the stator assembly on a work table
front side upward. Tap the bearing gently from its
bore. Do not nick or scratch the aluminum bore during
removal.

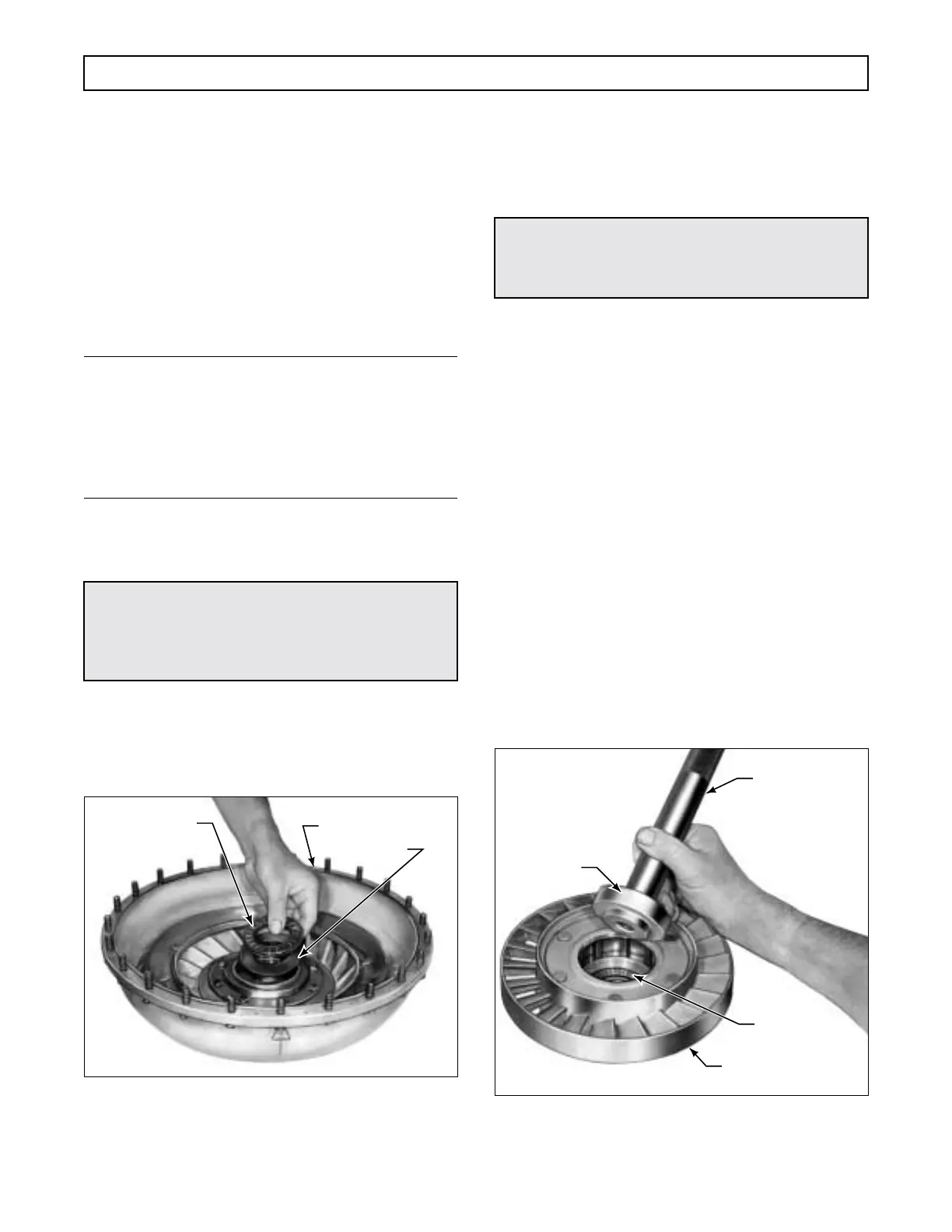

Figure 6–8. Removing (or Installing) Torque Converter
Pump Bearing and Race (AT 543)
(2) Place a new bearing assembly into the
aluminum bore of the stator. Using bearing installer
tool J 23549 and handle J 24202-4, install the thrust
bearing (Figure 6–9).
(3) Drive the bearing assembly to a height of
0.025–0.035 inch (0.64–0.89 mm) above the shoulder
in the side plate (Figure 6–10). The installing tool will
seat on the stator area surrounding the bearing when
the bearing is properly installed.
d. Assembly
(Foldout 7,A)
(1) Install new gasket 31 onto converter
pump 35. Install hub 30 into pump 35. Align the holes
in the hub and gasket with the holes in the pump.
(2) Install four new lockstrips 29 and eight
1
⁄
4
-20 x
5
⁄
8
inch bolts 28 through hub 30 and into pump
35. Tighten the bolts to 9–11 lb ft (12–15 N·m). Bend
the corners of the lockstrips against the bolt heads.
(3) Replace any converter pump flange bolts
36 necessary and make sure any weights are in their
original positions if pump bolts have been removed.
Figure 6–9. Installing Stator Thrust Bearing (AT 543)
CAUTION:
Do not scratch or nick any stator bores. Do not
attempt to disassemble the stator and cam as-
sembly unless replacement is required.
H02919
NEEDLE BEARING
ASSEMBLY
BEARING RACE
CONVERTER PUMP
CAUTION:
Apply the load only to the outer shell of the bear-
ing during installation (Figure 6–9).
J 24202-4
J 23549
BEARING
ASSEMBLY
STATOR
H00349
