4–1. SCOPE
This section provides general information for over-
haul, cleaning, inspection, and general assembly pro-
cedures for the transmission. It provides illustrations
and explanations for the fabrication of improvised
tooling. A listing and illustration of special tools is in-
cluded for your convenience.
4–2. TOOLS AND EQUIPMENT
a. Improvised Tools and Equipment
. The fol-
lowing items may be improvised.
•
Work table — 1500 pound (700 kg)
capacity (Figure 4–1)
•
Gauge for comparing vacuum modulator
(Figure 3–9).
NOTE:
The transmission holding fixture (Figure 5–1) may
be mounted on the work table.
b. Special Tools
. Special tools are illustrated in
Figures 4–2 through 4–4. They are identified in the ta-
ble following the illustrations. These special tools are
available from:
Kent-Moore Tool Division*
29784 Little Mack
Roseville, Michigan 48066
Aidco, Inc.*
800 Liberty Street
Adrian, Michigan 49221
Section 4 – GENERAL OVERHAUL INFORMATION

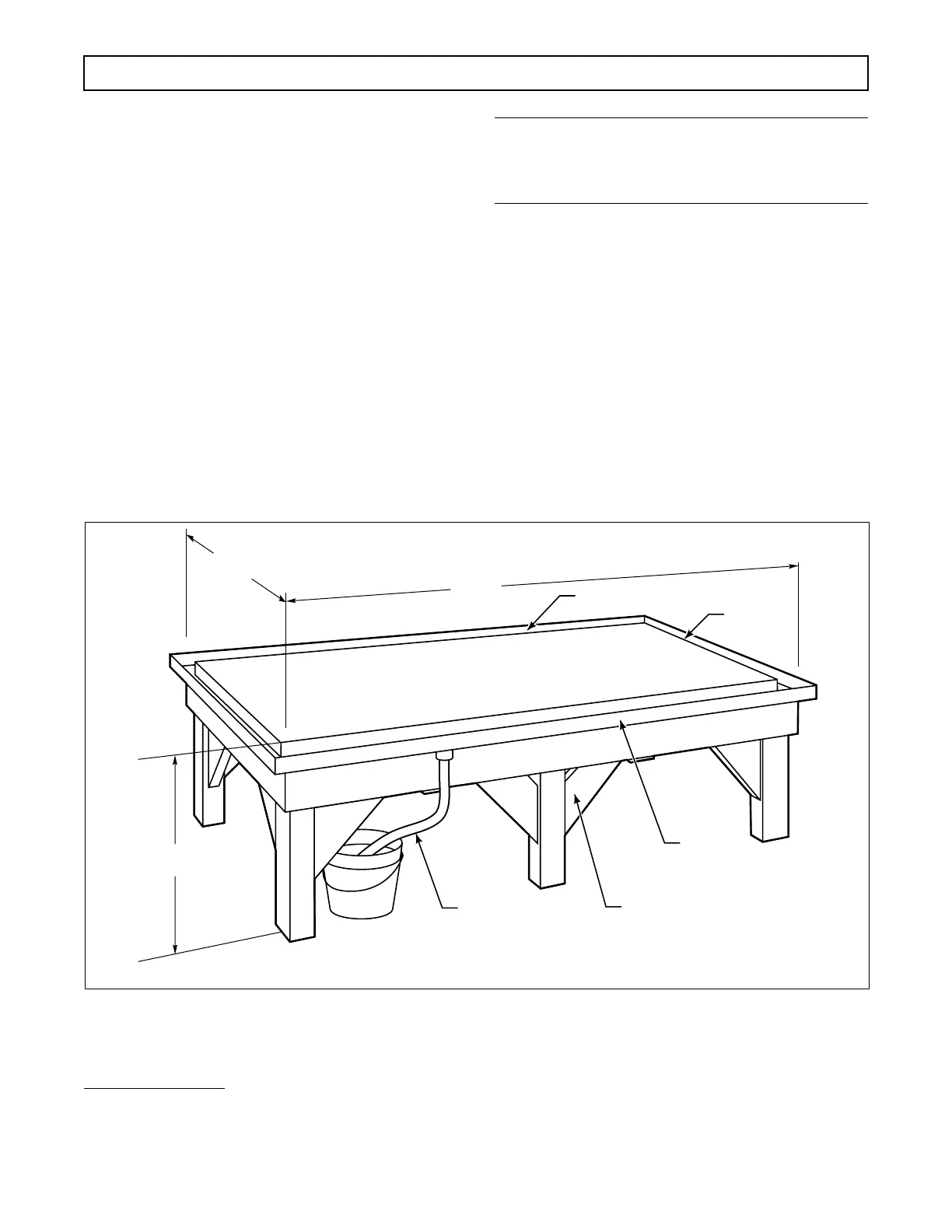

Figure 4–1. Typical Work Table
48 in.
(120 cm)
78 in.
(200 cm)
24 in.
(60 cm)
4 x 4 in. LEGS
(10 x 10 cm)
2 x 6 in. BOARD
(5 x 15 cm)
FOR TOP FRAME
AND LEG BRACKETS
TRANSMISSION FLUID DRAIN
STEEL TOP
TRANSMISSION
FLUID DRAIN
(BOTH SIDES)
TROUGH
16-GAUGE SHEET STEEL
1
1
⁄2 in. (35 mm) DEEP
1
1
⁄2 in. (35 mm) WIDE
V02733
*
We believe these sources and their tools to be reliable
. There may be additional manufacturers of such a tool. General Motors does not
endorse, indicate any preference for, or assume any responsibility for the products or tools from these firms, or for any such items which
may be available from other sources.
