Copyright © 1996 General Motors Corp. 6–7
REBUILD OF SUBASSEMBLIES

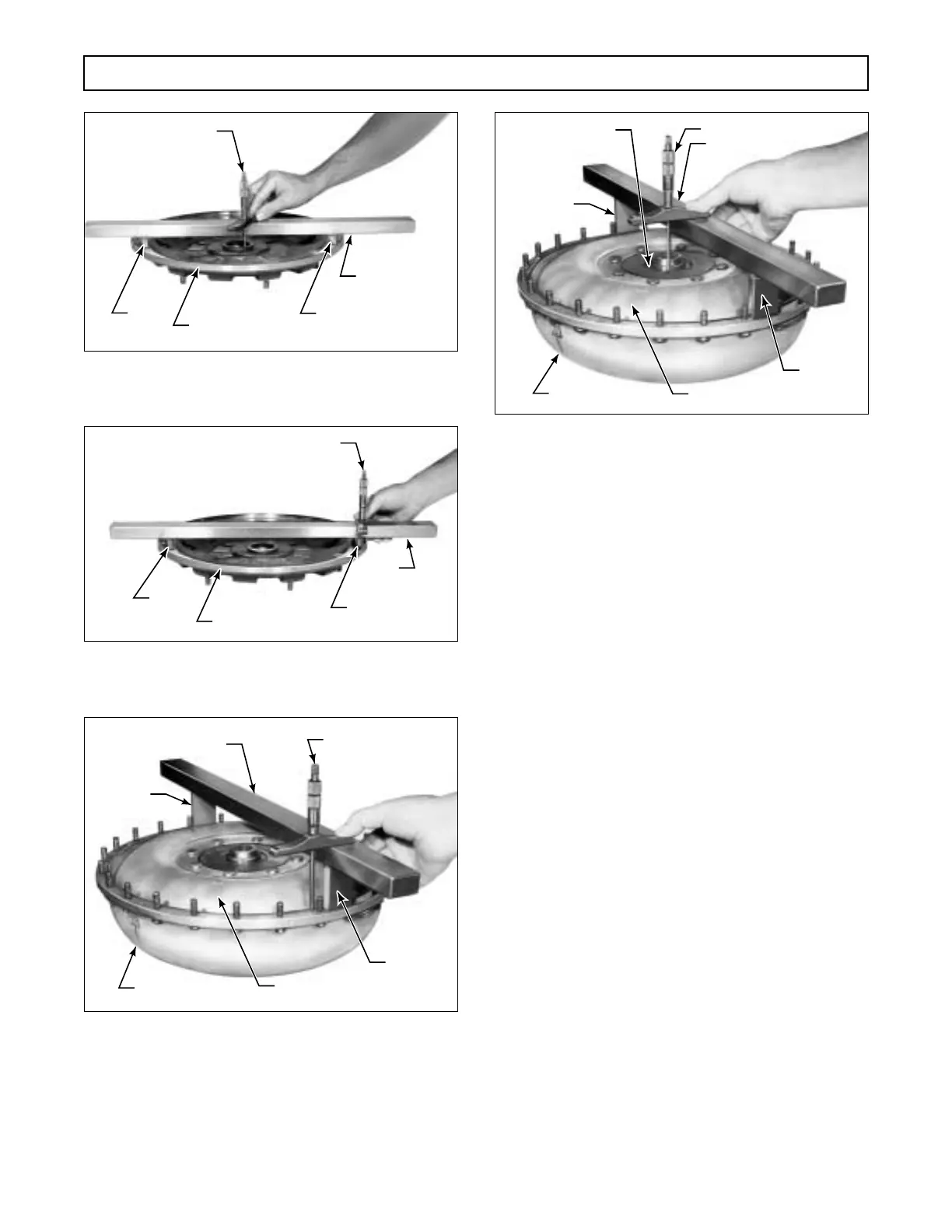

Figure 6–13. Measuring Dimension A for Selection of
Converter Spacer (AT 543)
Figure 6–14. Measuring Dimension B for Selection of
Converter Spacer (AT 543)
Figure 6–15. Measuring Dimension C for Selection of
Converter Spacer (AT 543)
(24) Using the dimensions recorded in Steps
(20) through (23) in the formula
X = (A–B) – (C–D)
,
find
X
.
Figure 6–16. Measuring Dimension D for Selection of
Converter Spacer (AT 543)
(25) From the following table, select the
proper spacer.
(26) Remove the two bearing races and bearing
installed in Steps (18) and (19). Install the selected spacer
onto the torque converter pump hub (Figure 6–5).
(27) Complete the assembly of the torque
converter by following Steps (11) through (17).
6–5. GOVERNOR
a. Disassembly
(Foldout 12,A)
(1) Governor 18 may be disassembled for
cleaning and inspection. Inspect governor driven gear
for scuffed, nicked, burred or broken teeth, any dam-
age or wear will require governor assembly replace-
ment. Do not disassemble the governor unless the kit
H02926
DEPTH MICROMETER
BLOCK
BLOCK
CONVERTER COVER
BAR,
1 x 1 x 24
in.
H02927
DEPTH MICROMETER
BLOCK
BLOCK
CONVERTER COVER
BAR,
1 x 1 x 24
in.
H02928
DEPTH MICROMETER
BLOCK
BLOCK
CONVERTER PUMP
CONVERTER TURBINE
BAR, 1 x 1 x 24
in.
X Use Part No. Color
0.017–0.034 inch 6837429 Gold
(0.44–0.86 mm)
0.034–0.049 inch 6837430 Silver
(0.86–1.24 mm)
0.049–0.062 inch 6837431 Plain
(1.24–1.57 mm)
0.062–0.079 inch 6837432 Black
(1.57–2.00 mm)
0.079–0.093 inch 6837433 Copper
(2.00–2.36 mm)
H02929
DEPTH MICROMETER
BLOCK
BLOCK
NEEDLE THRUST
BEARING,
TWO RACES
CONVERTER PUMP
CONVERTER TURBINE
BAR, 1 x 1 x 24
in.
