Based on the height of the basket and the width of the track (platform levelling), the various
movements are possible.

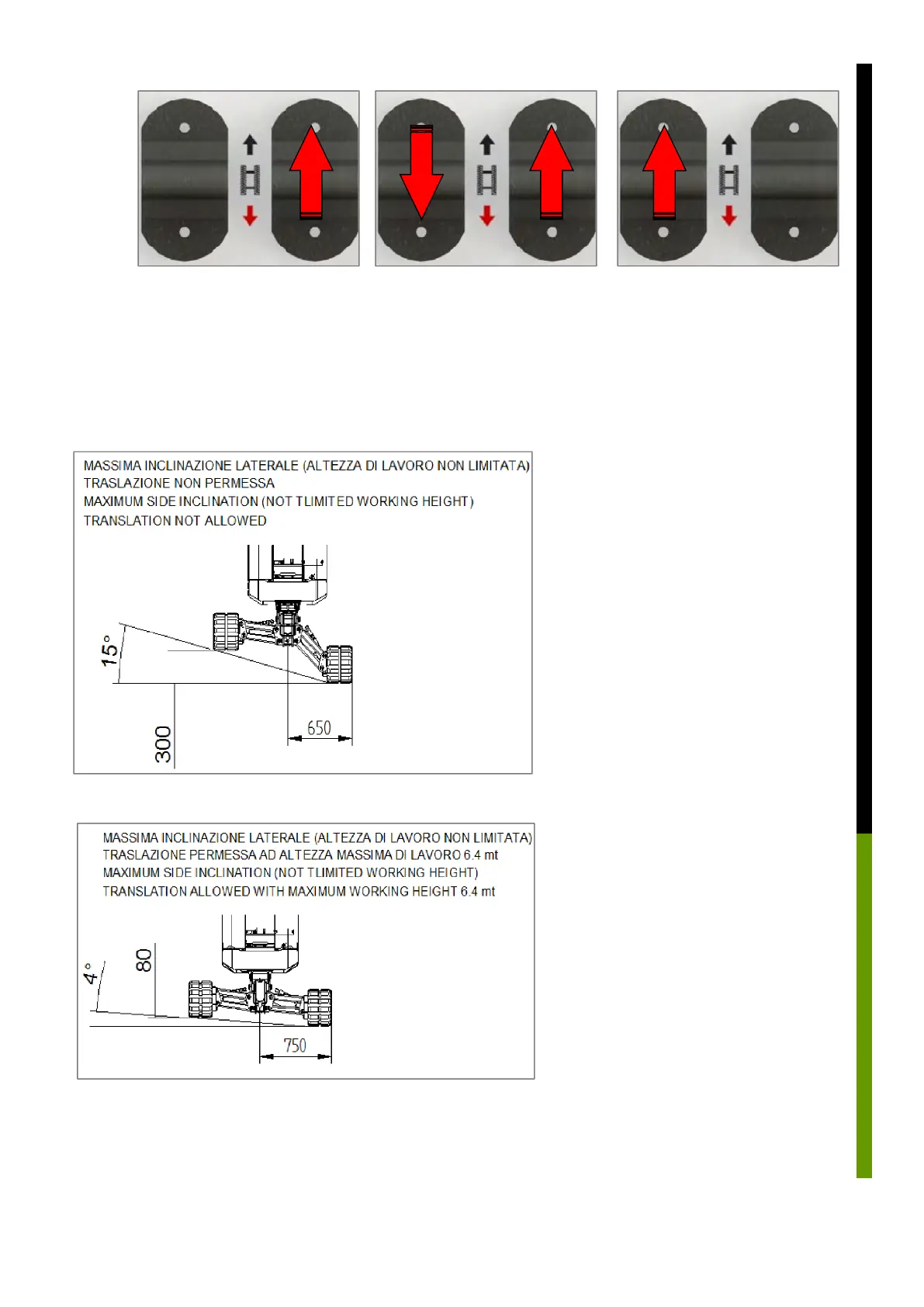

In the figure below you can see the fields involved that differentiate the "widened track" from
the "reduced track".
In these conditions, the maximum
work height can be reached but
MOVING BEYOND THE
TRANSPORT HEIGHT IS NOT
POSSIBLE
(floor surface < 2 m)
In these conditions, the maximum
work height can be reached and
MOVING IS ONLY POSSIBLE AT
REDUCED SPEED UP TO A
WORK HEIGHT OF 6.4 m.
Beyond this level movement IS
PREVENTED DEFINITIVELY.
Left
turn
Rig
ht
turn
Turn aro
und
