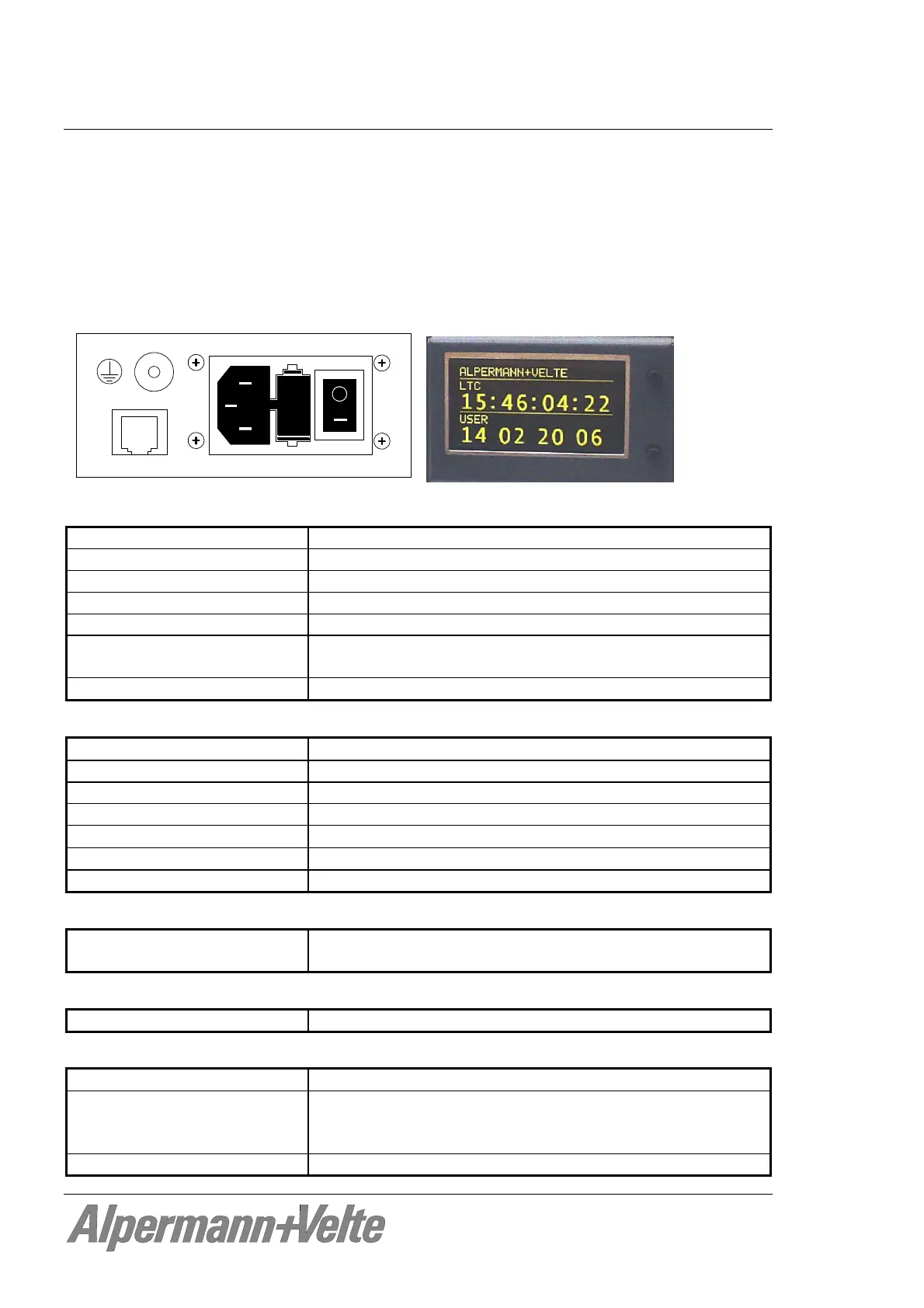

3.3 PQ: 60 W Power Supply with OLED Display
RUB1 frames only.
This module consists of two physical parts: As a power supply it provides the power for all the
modules in the frame, as a Time Code reader it visibly displays the decoded time and user or
date data. The PQ module has all the features of the PS module. Additionally it reads LTC and
TC_link time code, and it visibly displays the decoded time and user or date data.
Fuse: 1 A T / 250 V
Fuse
90 - 264 VAC, 47 - 63 Hz, 0.8 A
LTC IN
Input:
Inlet socket According to IEC/EN 60320-1/C14, protection class 1
Line voltage range 90 - 264 VAC, auto-ranging
Power line frequency 47 - 63 Hz
Input current 800 mA maximum at 90 VAC
Inrush current 50 A maximum @ 264 VAC
Efficiency 86 % typical @ 75 % load, 25 °C, nominal line, after 5 mins
warm-up
Line regulation
 0.5
%
Output:
Output voltage
23.7 VDC  5
%
Output current 0.05 A minimum, 2.5 A maximum
Turn-on delay 4 secs maximum
Ripple & Noise 1 %
Load regulation
 1
%
Temperature coefficient
 0.05
% / °C
Hold-up time at 100% load 8 ms typical
LTC:
LTC input According to ANSI/SMPTE 12M-1-2008, balanced,
100 mV
pp
- 5 V
pp
, 20 - 37 frames/s.
Failure relay:
FAIL signal threshold voltage If the output voltage (nominal 23.7 V) falls below ≈ 20 V.
Others:
Weight 0.5 kg
Mechanical Circuit board (W x D): 100 x 160 mm / 3.94 x 6.30 inch
Rear panel: RUB H1: 103 x 44 mm / 4.06 x 1.73 inch
RUB H3: 8HP, 3RU
Power consumption 9.4 W maximum
