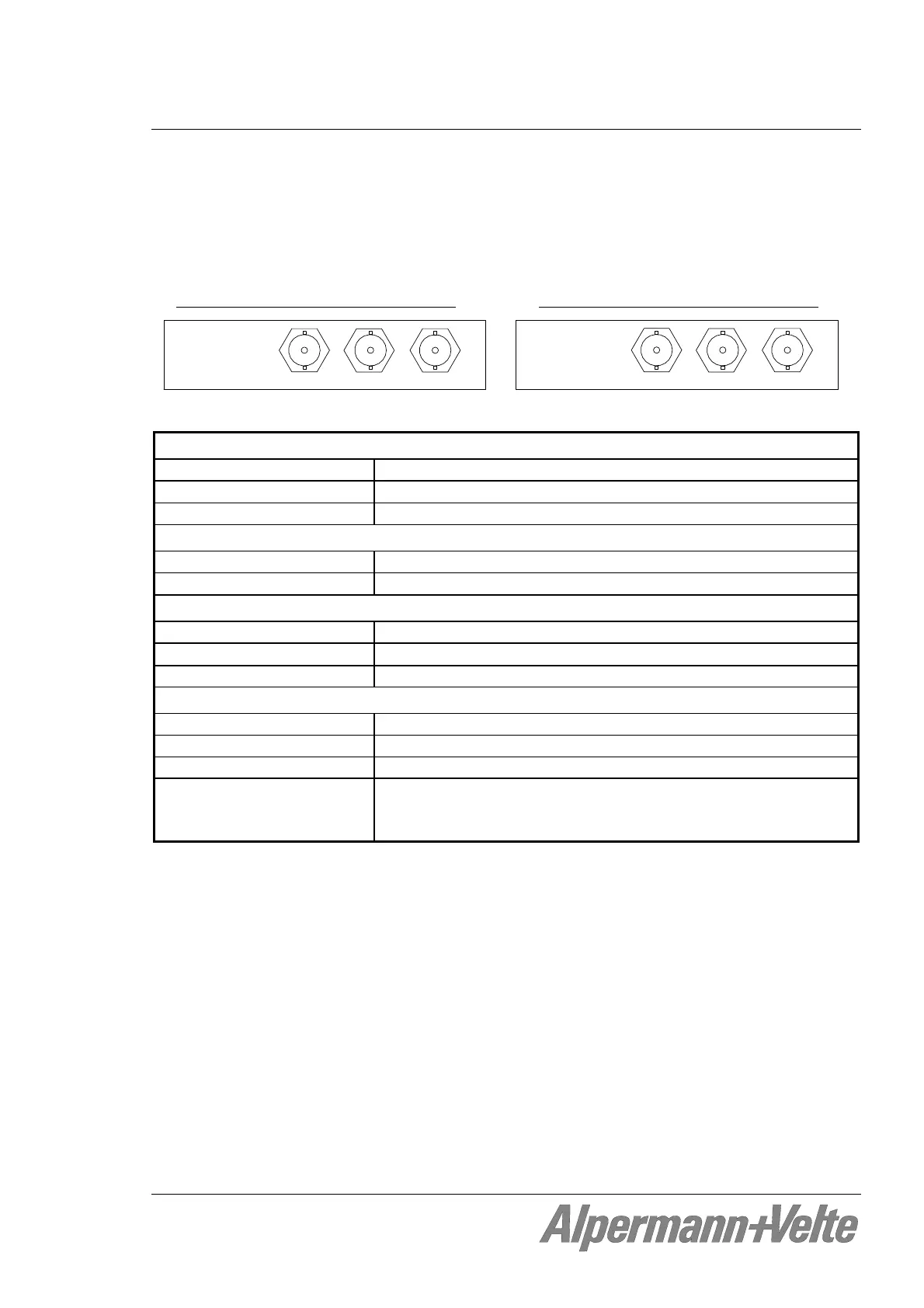

3.6 AV: Analogue Video
The hardware consists of an analogue video channel with character inserter and VITC
reader/generator.
Connections at AV module – version 1
Connections at AV module – version 2
VIDEO OUTVIDEO IN
LOOP OUT
Alpermann+V elte
VIDEO OUT
LOOP OUT
VIDEO IN
Alpermann+V elte
Video input VIDEO IN:
Format CVBS analogue video signal: PAL 625/50, NTSC 525/60
Connector
BNC (IEC169-8), 75
VITC input According to ANSI/SMPTE 12M-1-2008
Video output LOOP OUT:
Format Pass-through output of VIDEO IN
Connector
BNC (IEC169-8), 75
Video output VIDEO OUT:
Format Refer to VIDEO IN
Connector
BNC (IEC169-8), 75
VITC output According to ANSI/SMPTE 12M-1-2008
Others:
Operating voltage 12 - 30 VDC
Power consumption 2.8 W maximum
Weight 0.2 kg approx.
Mechanical Circuit board (W x D): 100 x 160 mm / 3.94 x 6.30 inch
Rear panel: RUB H1: 103 x 44 mm / 4.06 x 1.73 inch
RUB H3: 4HP, 3RU
