3.10 DV: Digital Video
Digital video channel (SD) with character inserter and D-VITC/ATC time code reader and
generator.

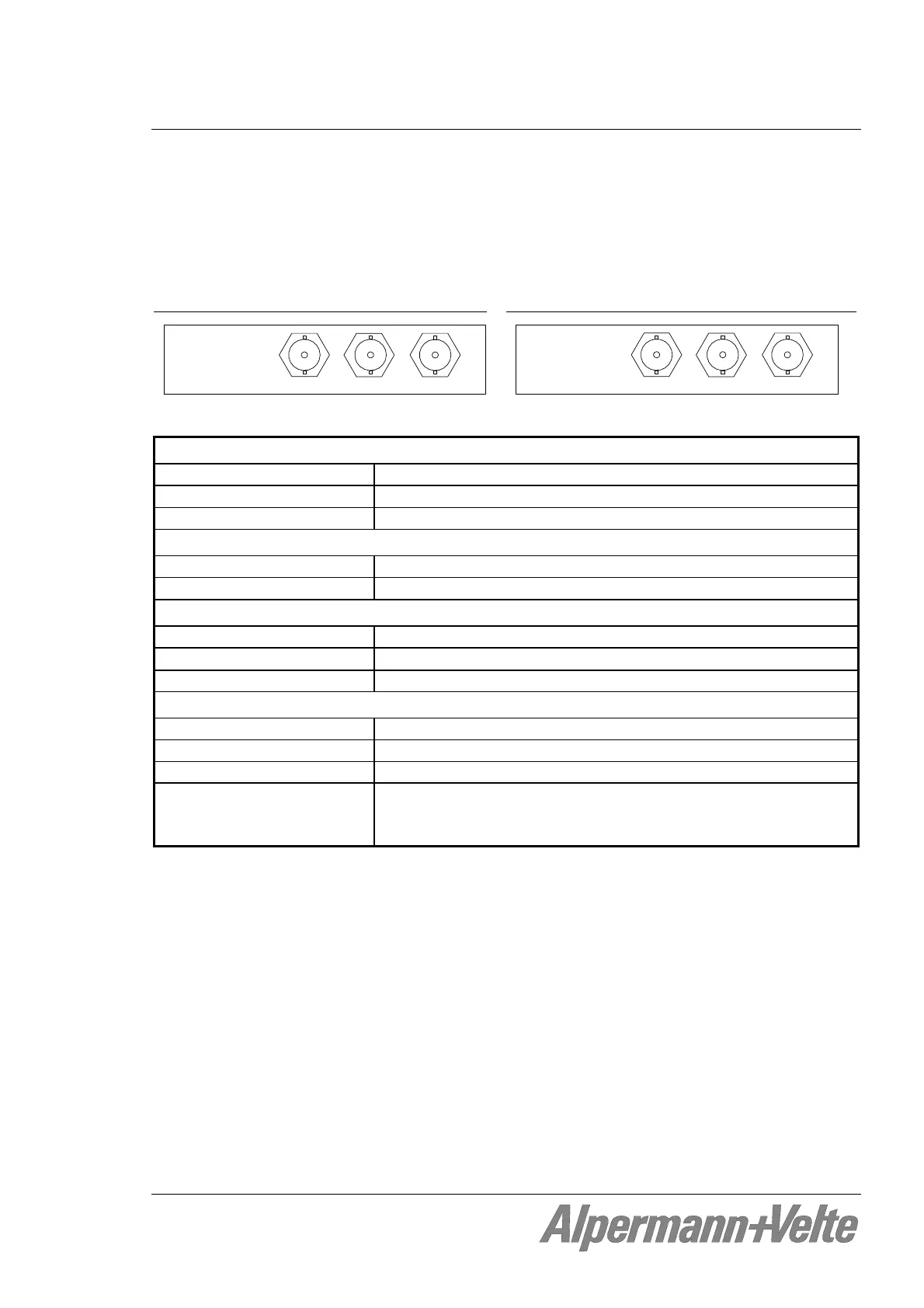

Connections at RUB DV – hardware version 1
Connections at RUB DV – hardware version 2/3
VIDEO OUTVIDEO IN
LOOP OUT
Alpermann+V elte
VIDEO OUT
LOOP OUT
VIDEO IN
Alpermann+V elte
Video input VIDEO IN:
Format Serial digital video, according to ANSI/SMPTE 259M
Connector
BNC (IEC169-8), 75 
Video time codes D-VITC (SMPTE 266M-1994), ATC (SMPTE 12M-2-2008)
Video output LOOP OUT:
Format Serial digital video, according to ANSI/SMPTE 259M
Connector
BNC (IEC169-8), 75 
Video output VIDEO OUT:
Format Serial digital video, according to ANSI/SMPTE 259M
Connector
BNC (IEC169-8), 75 
Video time codes D-VITC (SMPTE 266M-1994), ATC (SMPTE 12M-2-2008)
Others:
Operating voltage 12 - 30 VDC
Power consumption (max.) Version 1: 2.8 W; version 2: 4.2 W; version 3: 3.0 W
Weight 0.2 kg approx.
Mechanical Circuit board (W x D): 100 x 160 mm / 3.94 x 6.30 inch
Rear panel: RUB H1: 103 x 44 mm / 4.06 x 1.73 inch
RUB H3: 4HP, 3RU
