Installation & Systems Manual RUBIDIUM SERIES
Page 69

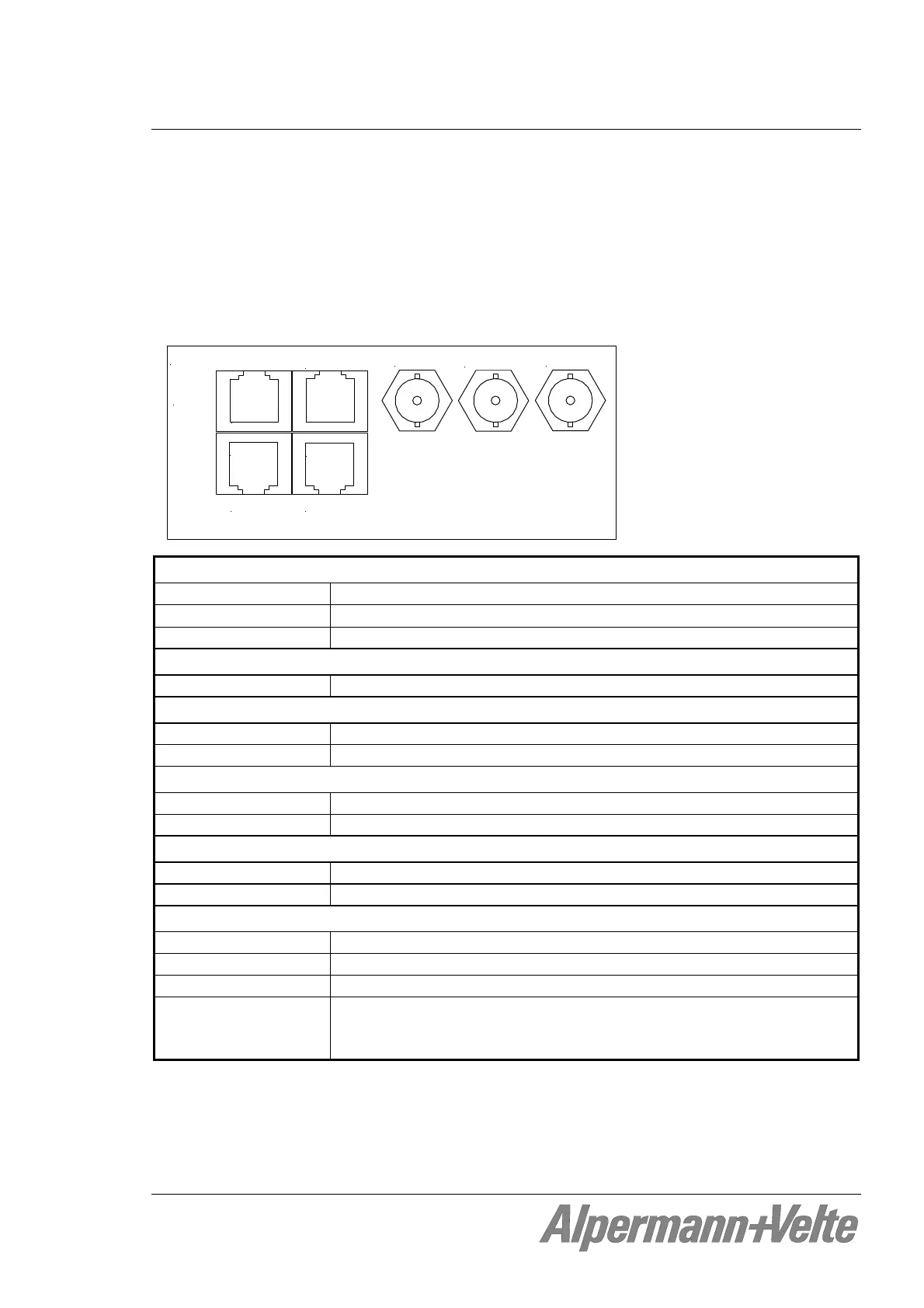

3.34 SV: VITC Monitoring and Changeover Unit
This module can frame accurate and in real-time compare and contrast two incoming VITCs
for indescribable differences. In the event of a failure, “SV” automatically switches to the other
faultless source. The SV module is a must for all time code systems where failure proof VITC is
a requirement. This includes real-time applications. Additionally, it monitors VITC, video and
reference errors, VITC/VITC and VITC/reference differences, and it makes status information
about all sources available.
Alpermann+V elte
VITC OUT
VITC IN 1
VITC IN 2
REF OUT
GPI OUT
REF IN
REF OUT
8 . . . . . 1
8 . . . . . 1
1 . . . . . 8
1 . . . . . 8
VITC IN (2 x BNC):
Video format CVBS analogue video signal: PAL 625/50, NTSC 525/60
Signal level
1 V 6 dB at 75
VITC According to ANSI/SMPTE 12M-1-2008
VITC OUT (BNC):
Video/VITC VITC output, switched via relay to one input
REF IN (RJ45):
PPS IN Pulse per second, input
RXD IN Reference time & date input, serial data string
REF OUT (2 x RJ45):
PPS OUT Pulse per second output, hard-wired with signal at REF IN
TXD OUT Reference time & date output, hard-wired with signal at REF IN
GPI OUT (RJ45):
FAIL Failure signals
WARNING Warning signals
Others:
Operating voltage 12 - 30 V DC
Power consumption 1.5 W maximum
Weight 0.3 kg approx.
Mechanical Standard circuit board (W x D): 100 x 160 mm / 3.94 x 6.30 inch
Rear panel: RUB H1: 103 x 44 mm / 4.06 x 1.73 inch
RUB H3: 8HP, 3RU
