4.2 The RUBIDIUM SERIES HTTP Server
4.2.1 Overview, Connecting the IE Module
The RUBIDIUM SERIES HTTP server was developed so that users have a uniform and easy set-
up of all configurable hardware modules.
The HTTP server is located in the IE module and can be accessed via 10/100base-T Ethernet
and a web-browser.

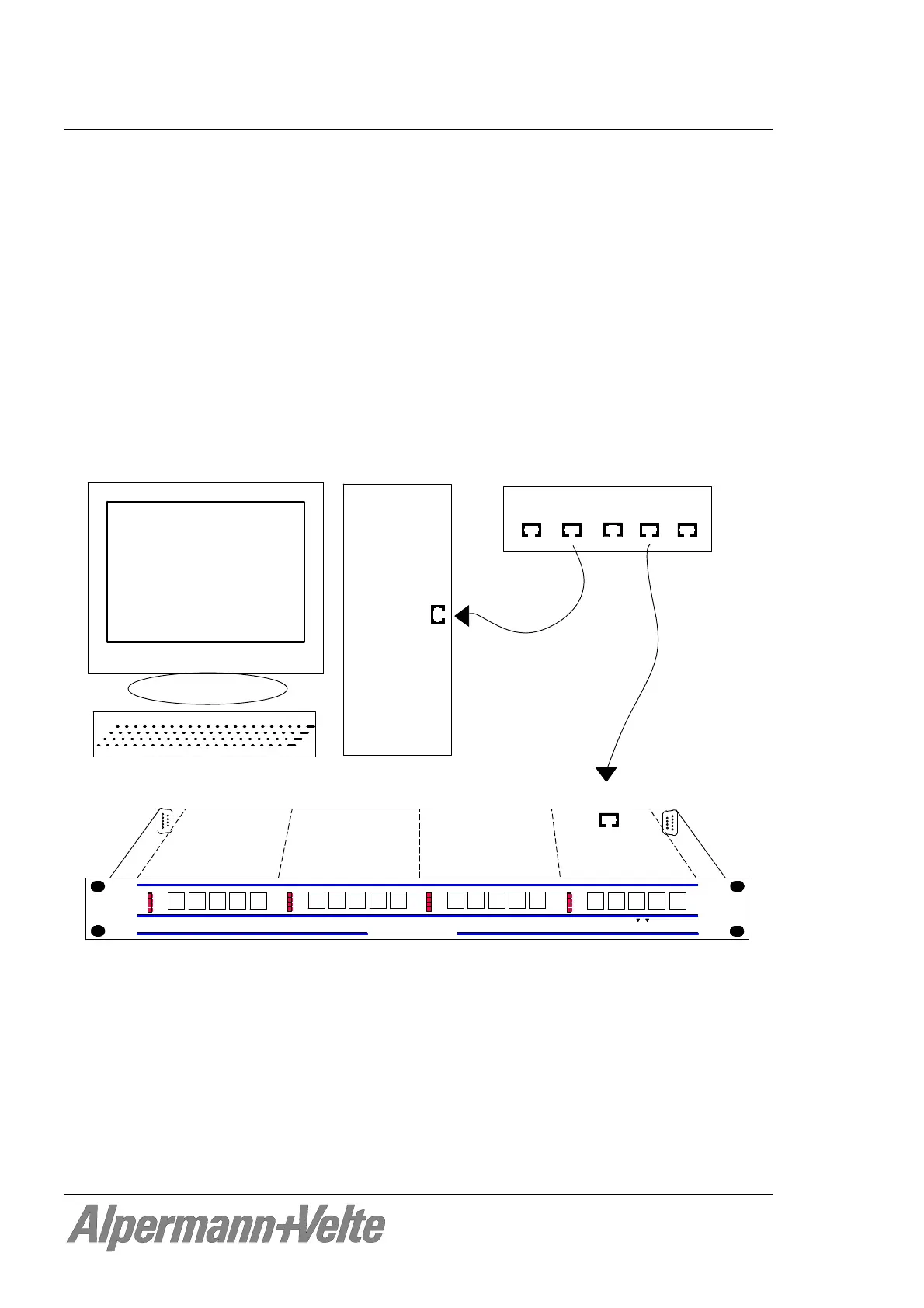

 The IE module has a RJ45 connector for Ethernet interface. Connect a straight CAT5 cable
if you use a hub or a switch. Use a crossover cable if you connect to the Ethernet card of
your computer directly.
Alpermann+V elte
R U B I D I U M SERIES 1
OPER
ERROR
SET
SIGNAL
OPER
ERROR
SET
SIGNAL
OPER
ERROR
SET
SIGNAL
OPER
ERROR
SET
SIGNAL
IE
PC
10/100base-T
10/100base-T
Hub
