Installation & Systems Manual RUBIDIUM SERIES
Page 65
3.30 IE: Interface Ethernet
The Alpermann+Velte Rubidium series “IE” module is a stand alone Ethernet “mini server”.
This unit makes an access to all connected “RUB” modules possible (via our internal bus
connections “TC_link”), thus enabling a configuration of the modules as well as to open a
status monitor. Option “S” includes SNMP functionality. Option “N” includes an NTP time
server, so any reference time base present on the “TC_link” internal bus (for example from a
real-time time code generator or a GPS receiver) can be used as a real time source for the
built-in NTP Time server.

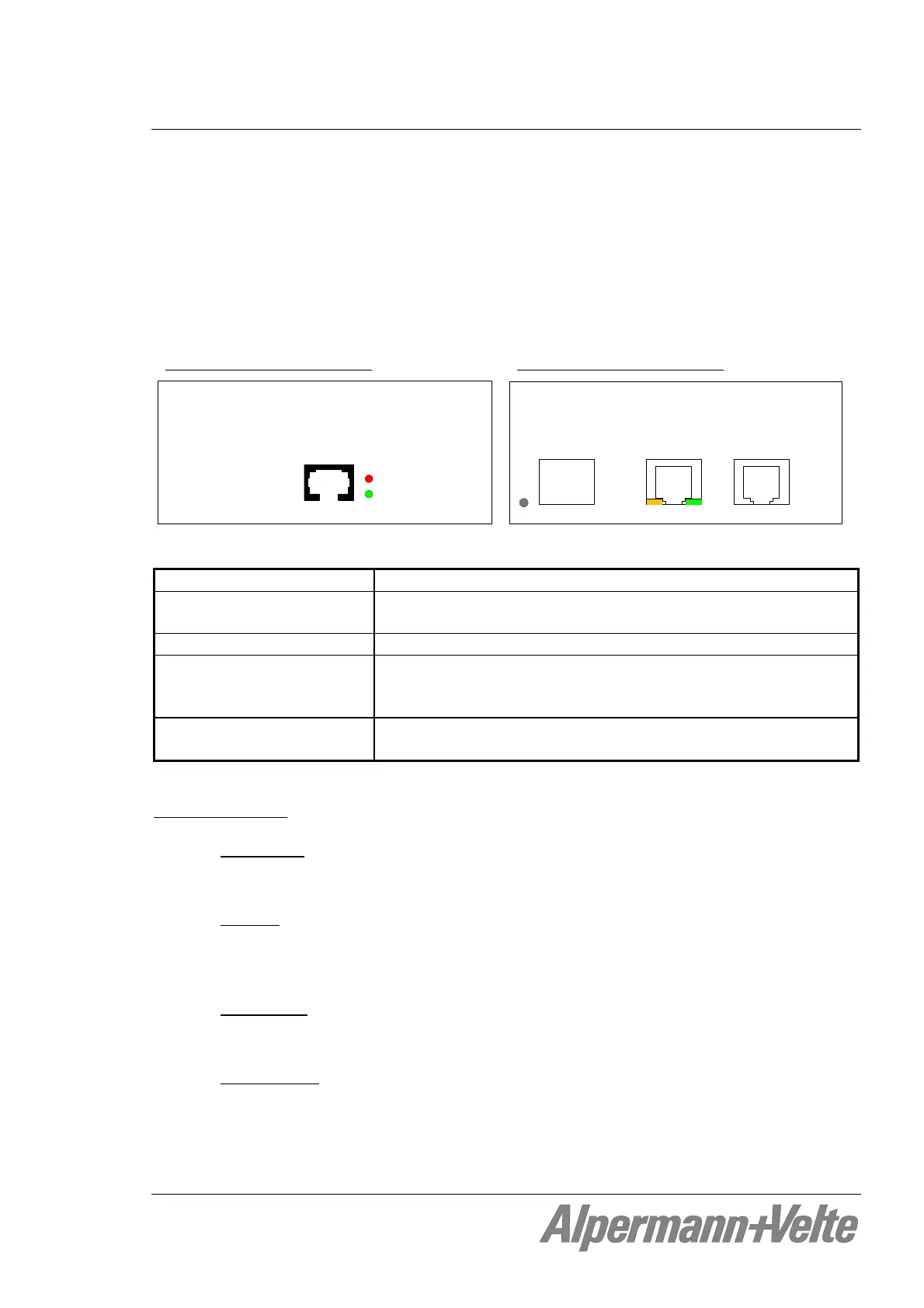

Rear of RUB1 IE – version 1
Rear of RUB1 IE – version 2
Alpermann+V elte
10 BASE-T
SET
LINK / ACT
1 . . . 8
Alpermann+V elte
REFOPTION 10/100 BASE-T
LINK ACT
(RESET)
Operating voltage 12 - 30 VDC
Power consumption Version 1: ≤ 2.7 W
Version 2: ≤ 1.8 W
Weight 0.3 kg approx.
Mechanical Circuit board (W x D): 100 x 160 mm / 3.94 x 6.30 inch
Rear panel: RUB H1: 103 x 44 mm / 4.06 x 1.73 inch
RUB H3: 4HP, 3RU
Ethernet connector Version 1: RJ45 10 BASE-T
Version 2: RJ45 10/100 BASE-T
Available options:
IE-C NTP Client:
The IE module communicates via Ethernet with an NTP server, receives a
time & date reference, and synchronizes this way RUBIDIUM modules.
IE-M MTDoE:
The IE module communicates via Ethernet with MTDoE devices like displays,
studio clocks, and MTD control units. It transfers a time & date reference and MTD
data received via TC_link from an MTD generator.
IE-N NTP Server:
The IE module becomes a time & date reference for other devices in this
network.
IE-S SNMP Agent:
The IE module can be used as an SNMP Network Element. You can
easily monitor and control the RUBIDIUM system using centralized network manage-
ment software.
