14.2 SECURING
TO
THE
WORKBENCH
The force tester is a heavy item and cannot normally tip over. However, if there is the
possibility that users can pull against the vertical column, then there is a risk that the machine
may be pulled over.
It is required that the CS Series force tester is secured to the bench using the 2 tapped holes

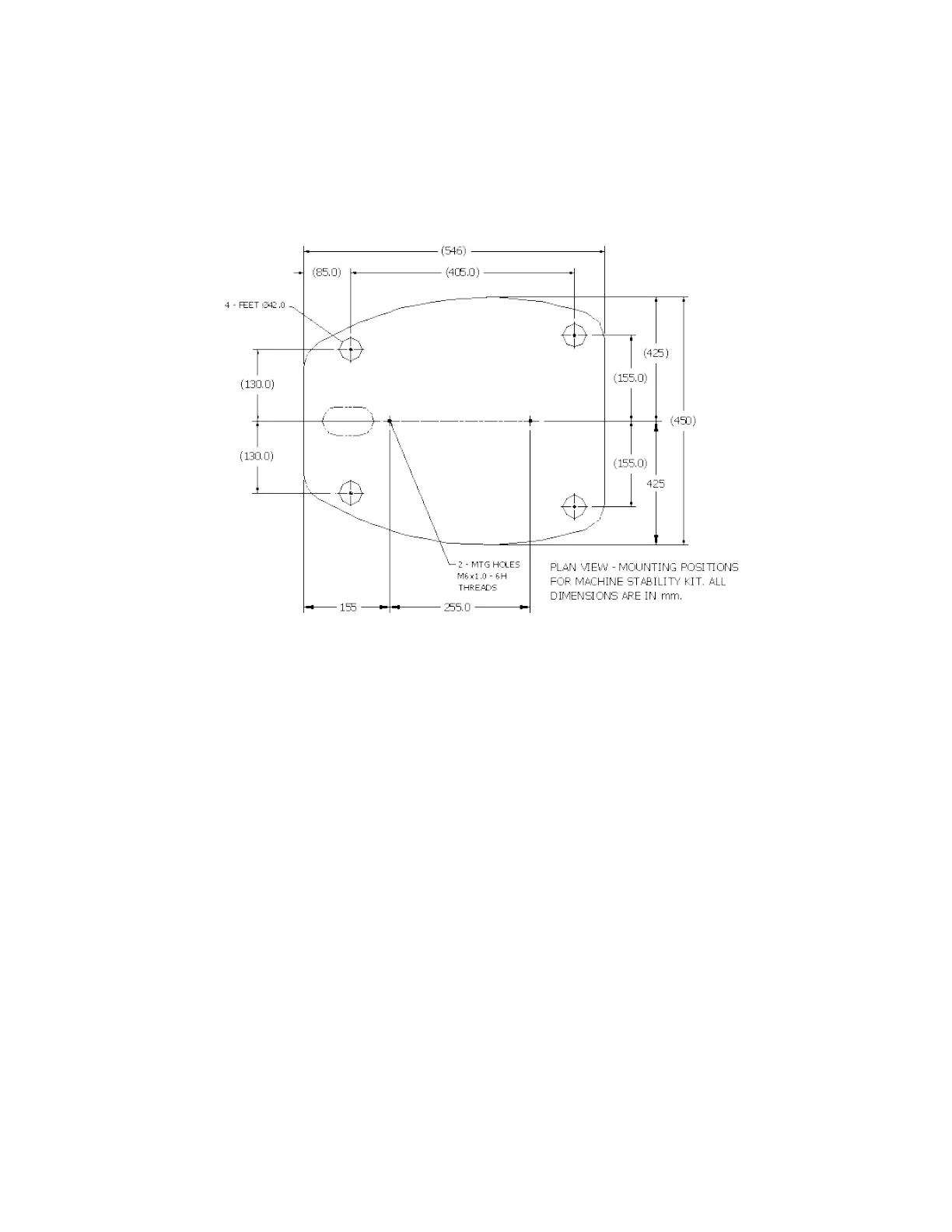

in the base of the machine. The template below shows the location of 2 holes that are
required in the top of the workbench for the two M6 bolts. The CS Series test machine has 2
screws, 2 spacers and two washers as part of the standard accessories to properly mount
the test machine to a standard workbench. If the two mounting screws are the wrong length
you may substitute the screws with standard M6 X P1.0 screws.
