The screen shown above indicates that 7 samples have been tested. This screen also shows
that sample number 4 failed the pass/fail criteria because numbering on the button marked "4"
is shown in red. The 6
th
sample test was aborted and is indicated in yellow.
10.2 MARKERS AND
NOTES

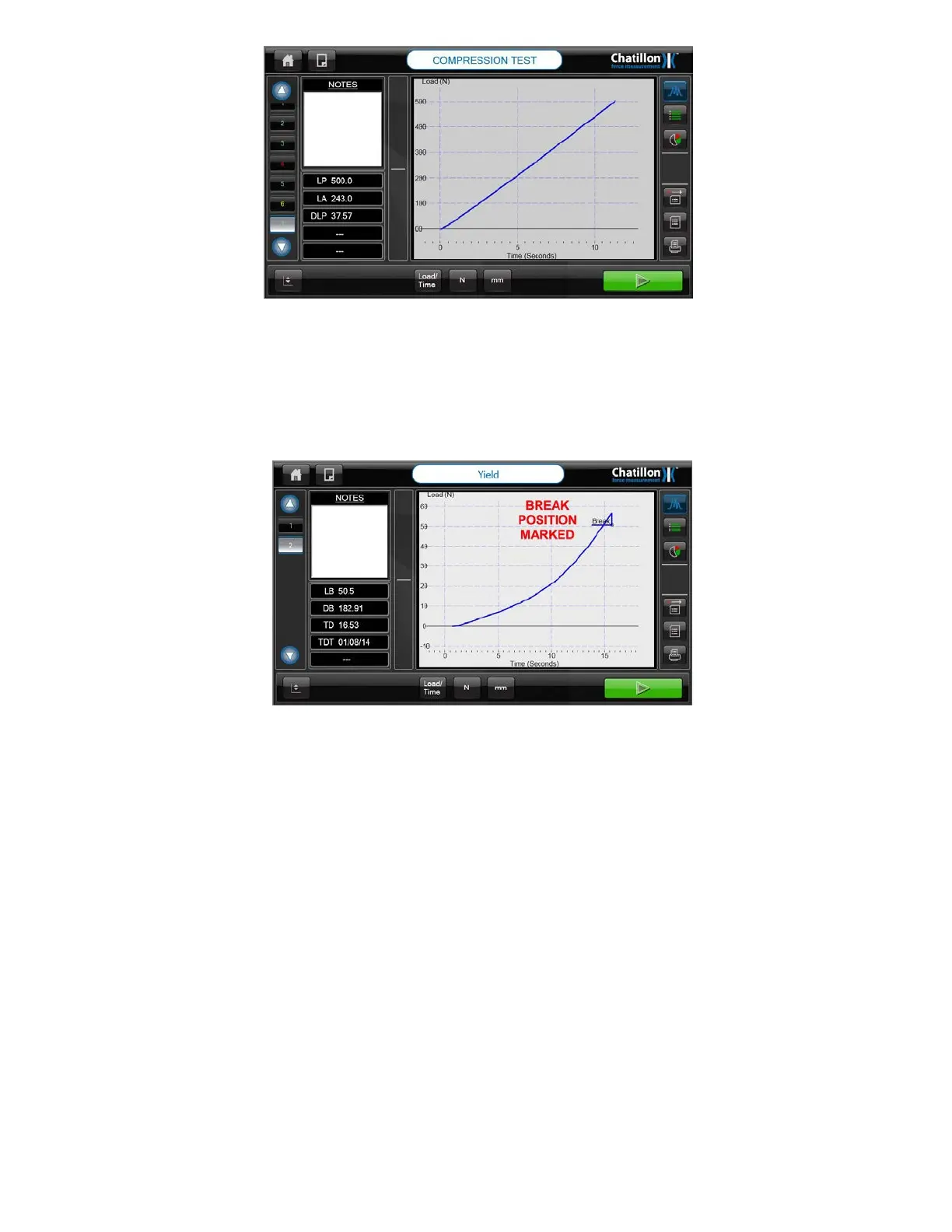

If the "Break Detector" is used and a "Break" is detected, then this is automatically marked
on the graph as shown below: -
A "Marker" can also be placed on the graph for any result by pressing on the required
"Result" button to the left of the graph. The screen above shows that the Peak Load (LP)
result has been calculated but the peak is not marked on the graph.
To mark the "Load Peak" position, press on the "LP" button to the left of the graph.
Note that the button is outlined in blue and the position is marked on the graph as "LP1" as
shown below.
CS User Manual
83
