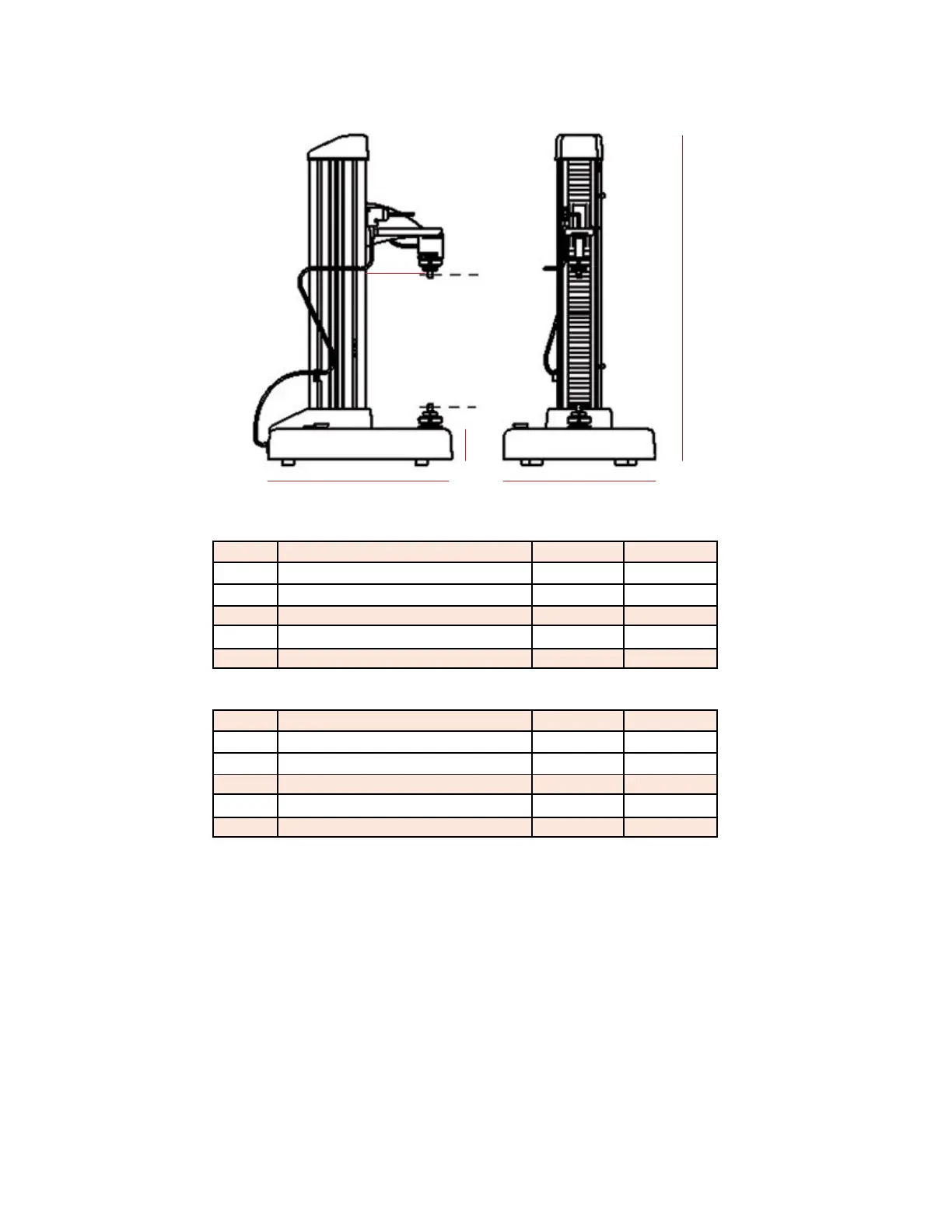

Ametek Chatillon CS1100 - OVERALL DIMENSIONS

19.0 OVERALL DIMENSIONS
E
A
D
C B
CS225
mm in
A
Height
1016
40.0
B Width (excluding control console) 460 18.1
C
Depth
557
21.9
D Base Height 108 4.3
E Throat Depth 180 7.1
CS1100
mm in
A Height 1301 51.2
B Width (excluding control console) 460 18.1
C Depth 557 21.9
D Base Height 108 4.3
E
Throat Depth
150
5.9
CS User Manual 123
