Ensure that the control console power switch (below the DC input socket) is set to ON (1).
Note that the control console is switched on and off using the force tester on/off switch,
which is mounted on the rear of the force tester frame. There is no requirement to
independently switch the control console on and off.
2.7 CONNECTING THE CONTROL CONSOLE USB
CABLE
The control console is connected to the force tester frame using the supplied USB A-B
cable. Connect the cable into one of the USB sockets on the right hand side of the control
console and connect the other end into the USB connector on the rear of the force tester
frame.
2.8 CONNECTING THE LOAD CELL EXTERNAL
CABLE

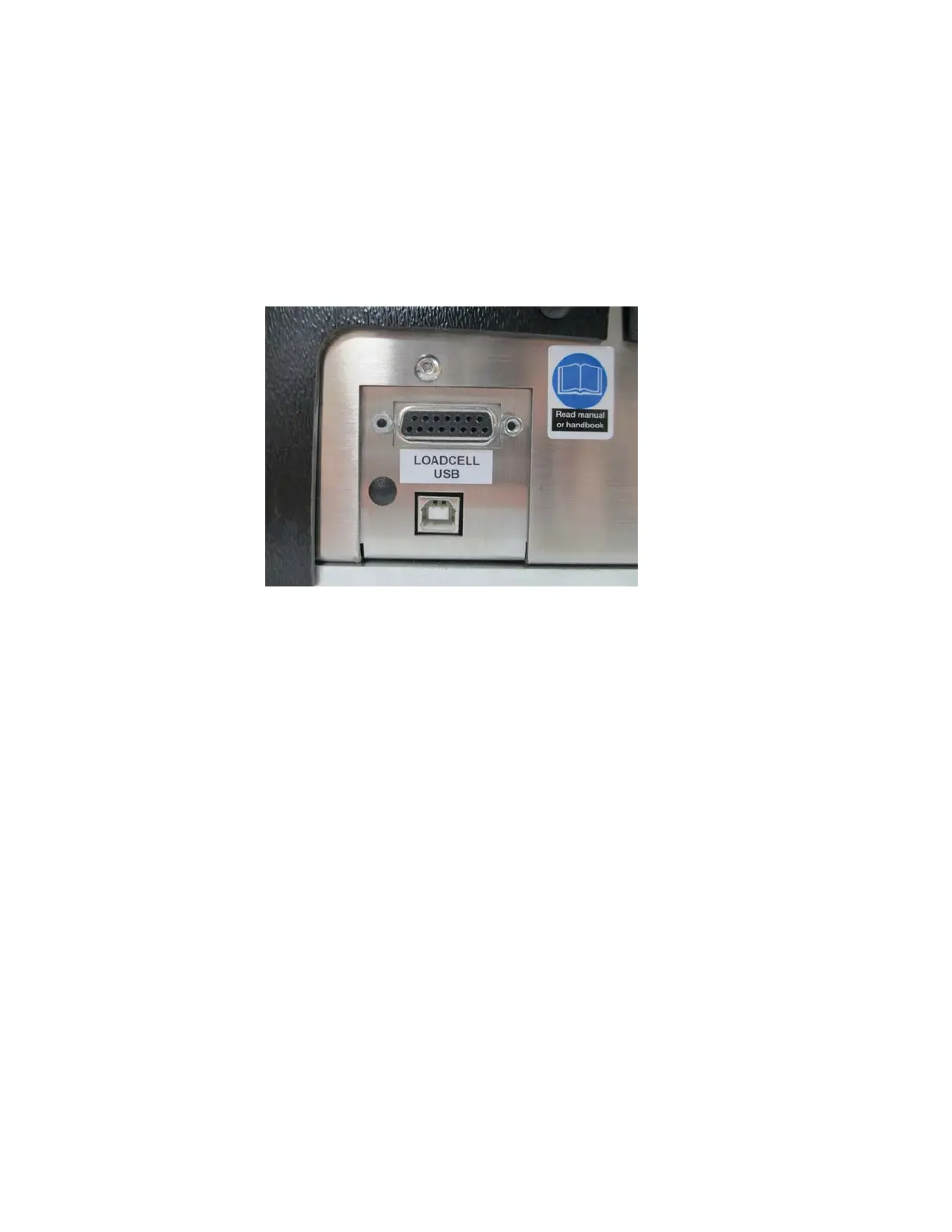

The load cell external cable is connected to the 15-way connector on the rear of
the machine.
2.9
ON-OFF
SWITCH
The power input cable should be inserted into the mains input connector at the rear of the
machine. Before switching on the machine you MUST check the correct voltage has been
selected on the mains input connector.
The main power switch is located above the mains input connector on the rear of the force
tester base as shown in section 2.3. The switch is a rocker type with positions O and l.
Press I to supply power to the machine and press O to turn power off.
ALWAYS HAVE THE CONTROL CONSOLE PLUGGED IN THE REAR OF THE CS
SERIES MACHINE AND POWER ON THE MACHINE AND TABLET TOGETHER USING
THE MAIN POWER SWITCH IN THE REAR OF THE MACHINE. NEVER POWER THE
TABLET FROM A REMOTE POWER SOURCE AND POWER THE TABLET ON PRIOR
TO POWERING ON THE CS SERIES MACHINE.
16 CS User Manual
