Set the communication parameters as shown in the above picture (as listed below)
Baud Rate = 115,200
Data bits = 8
Parity = None
Stop bits = 1
Flow control = None
The computer will need to run an RS232 communications program, e.g. Hyperterminal
and this must be set to use the same communication parameters as the Force Tester.
17.2 USING THE
COMMUNICATIONS

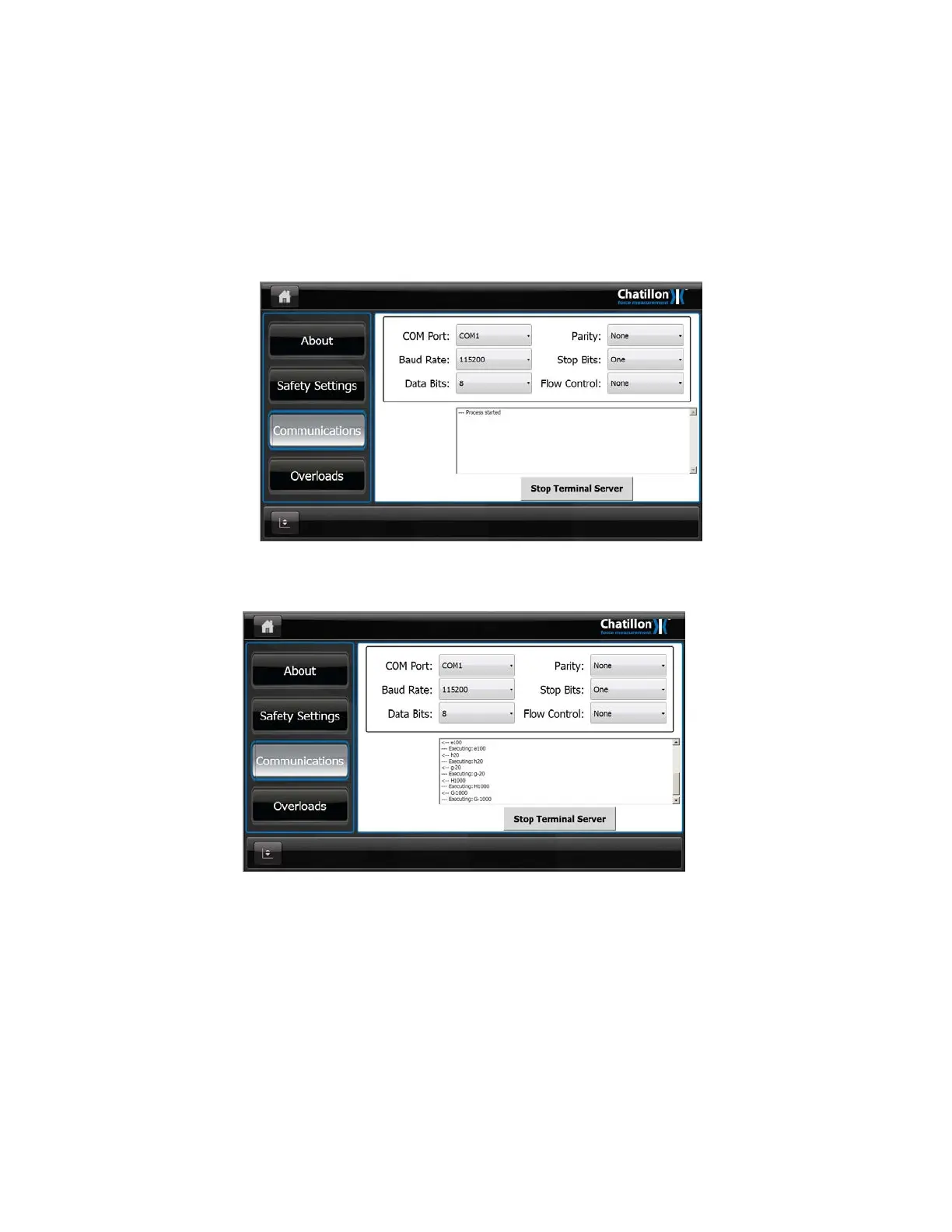

Start the computer RS232 communications program then press on the "START TERMINAL
SERVER" button at the bottom of the screen to connect the Force Tester to the computer.
The Force Tester will now respond to ASCII commands sent by the computer as
shown in the example screen below.
CS User Manual
115
