The Sharp Break detector will detect a break if the force falls quickly so is suitable for
samples that break quickly, usually with some noise.
The Percentage Drop detector will detect a break if the force falls to a specified percentage
of the maximum load so is suitable for samples that crack or tear so that the load falls too
slowly for the Sharp Break Detector to operate correctly.
Therefore this is mainly used as a safety feature or as a special Force Drop indicator so it is
important to note that the "Break Load" value may NOT give a useful result.
In both cases, the Break Detector is inhibited at low load values to prevent it from triggering if
the load falls slightly due to grip movement or noise etc. and the required threshold load
(starting load) is entered in the Activate box.

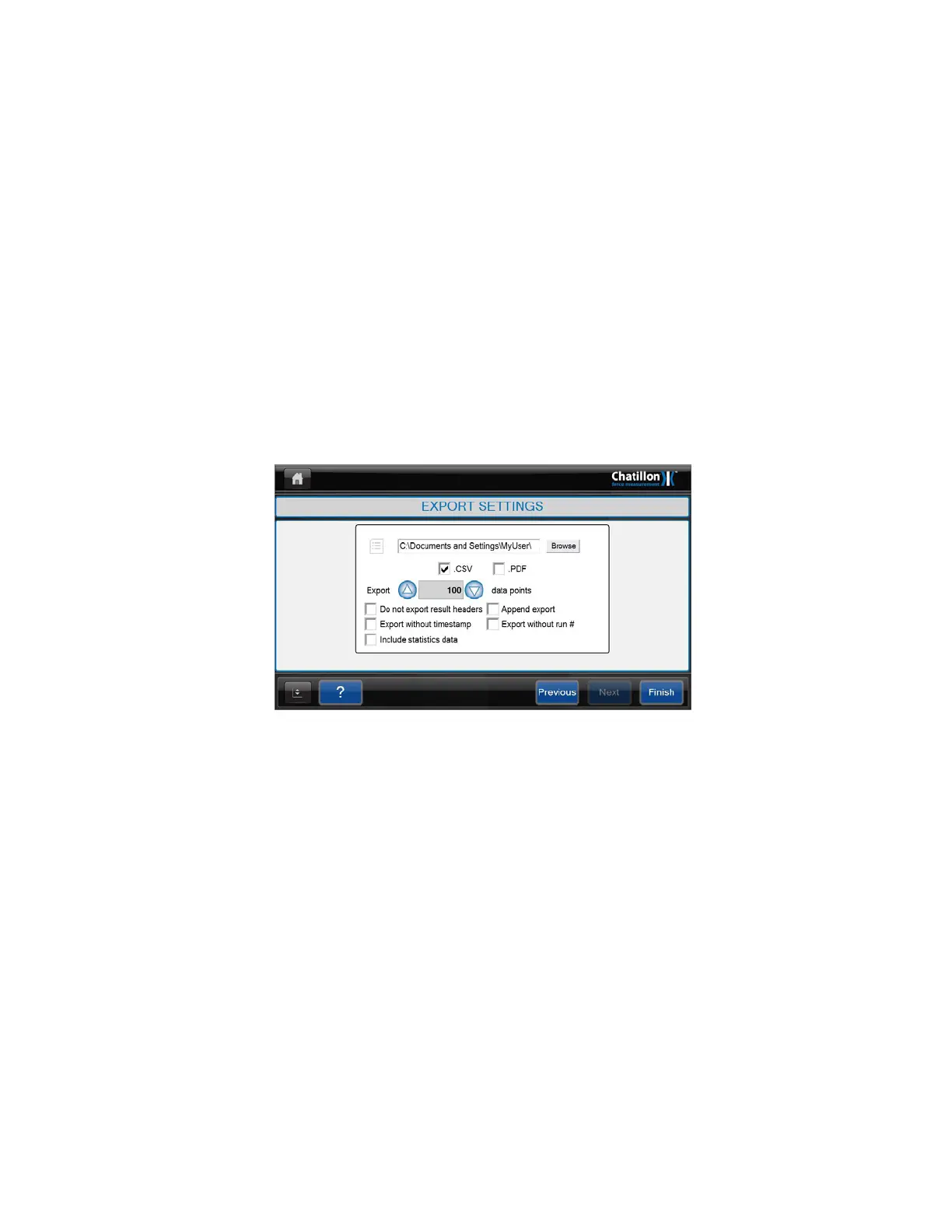

7.3 EXPORT SETTINGS SCREEN
After the Limits have been set, press on the "NEXT" button at the bottom of the screen to
display the "EXPORT SETTINGS" screen. If NO results are to be exported or printed, press
on the "FINISH" button at the right of the screen to display the "QUICK TEST
-TEST
GRAPH
" screen.
If the measured results are to be exported or printed, then press on the "File Name" entry
area to display an alphanumeric keypad. Enter the required File name then press on the
ENTER button. Press on the "BROWSE" button to display a "Browse for Folder" dialog then
select (or create) the required folder to contain this information.
7.4 DISPLAYING THE TEST SCREEN
After the Export Settings have been set, press on the "FINISH" button at the bottom of the
screen to display the "QUICK TEST -TEST GRAPH" screen.
