To remove the marker, press on the "LP" button again. The blue outlining around the button
is removed and the marker is also removed.
Note that if the "Load Peak" is requested on 2 or more "Stages", then the markers on the
graph will be suffixed by the "Stage Number", e.g. "LP1", "LP3" etc (assuming that Stages 2
and 4 are “Return” strokes to create a 2 cycle test).

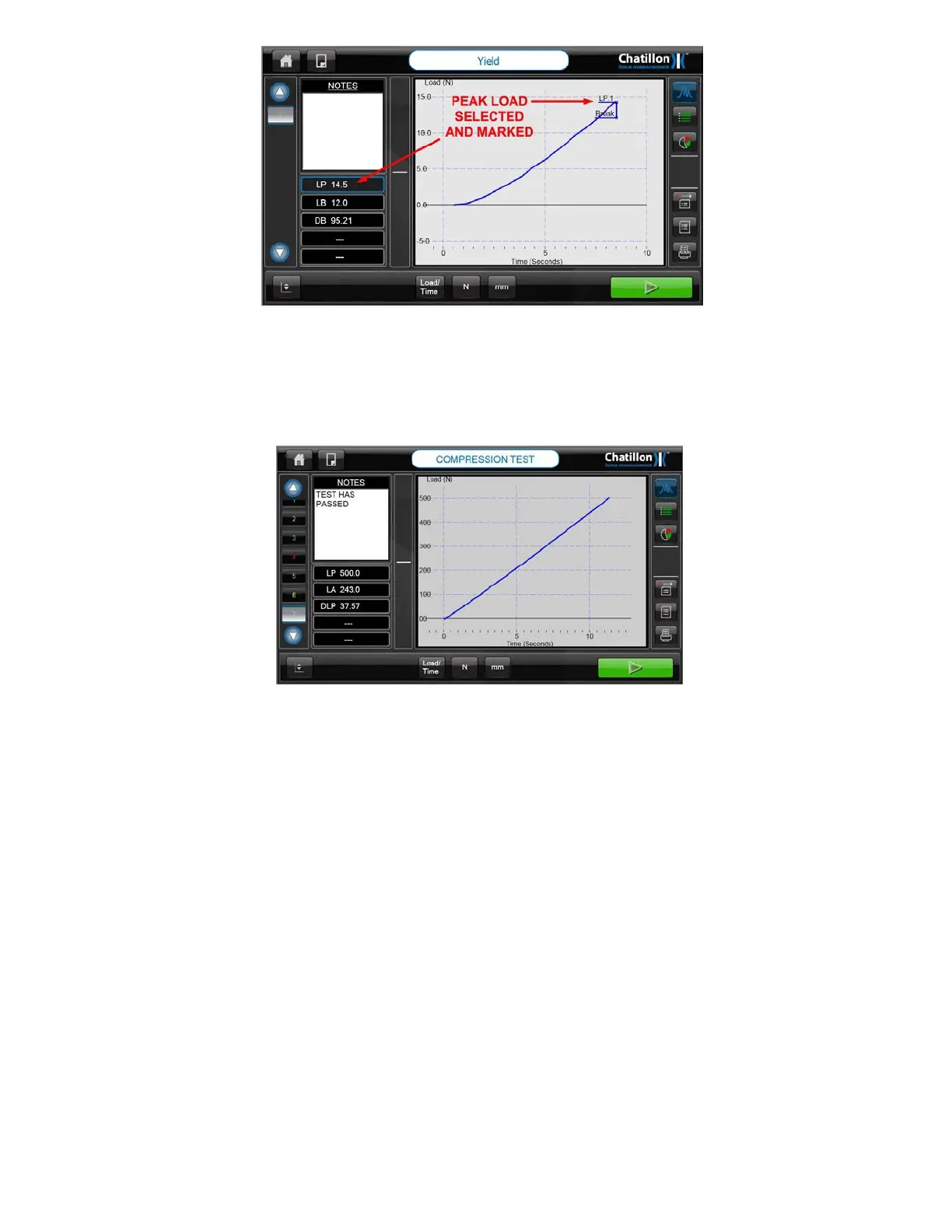

A note can be added to any test by pressing on the white block in the "Notes" area and
entering the required note or comment. The next screen shows an example note.
10.3 PRINTING AND EXPORTING GRAPH DATA
When a test graph is displayed, the graph can be printed to a PDF document by pressing the
“PRINT GRAPH” button on the right hand side of the screen.
The Raw Graph Data Points can be exported to a CSV file by pressing the “EXPORT DATA”
button on the right hand side of the screen.
