7.0
SINGLE STAGE TEST WITHOUT SAVING
DATA
This "Quick Test" feature is provided to allow a quick test to be performed on a sample, in
either Tension or Compression mode, where the test results and graphical data are not
required to be stored in a test file. However, the test data can be exported and/or printed if
required.
7.1
BASIC SETTINGS
SCREEN

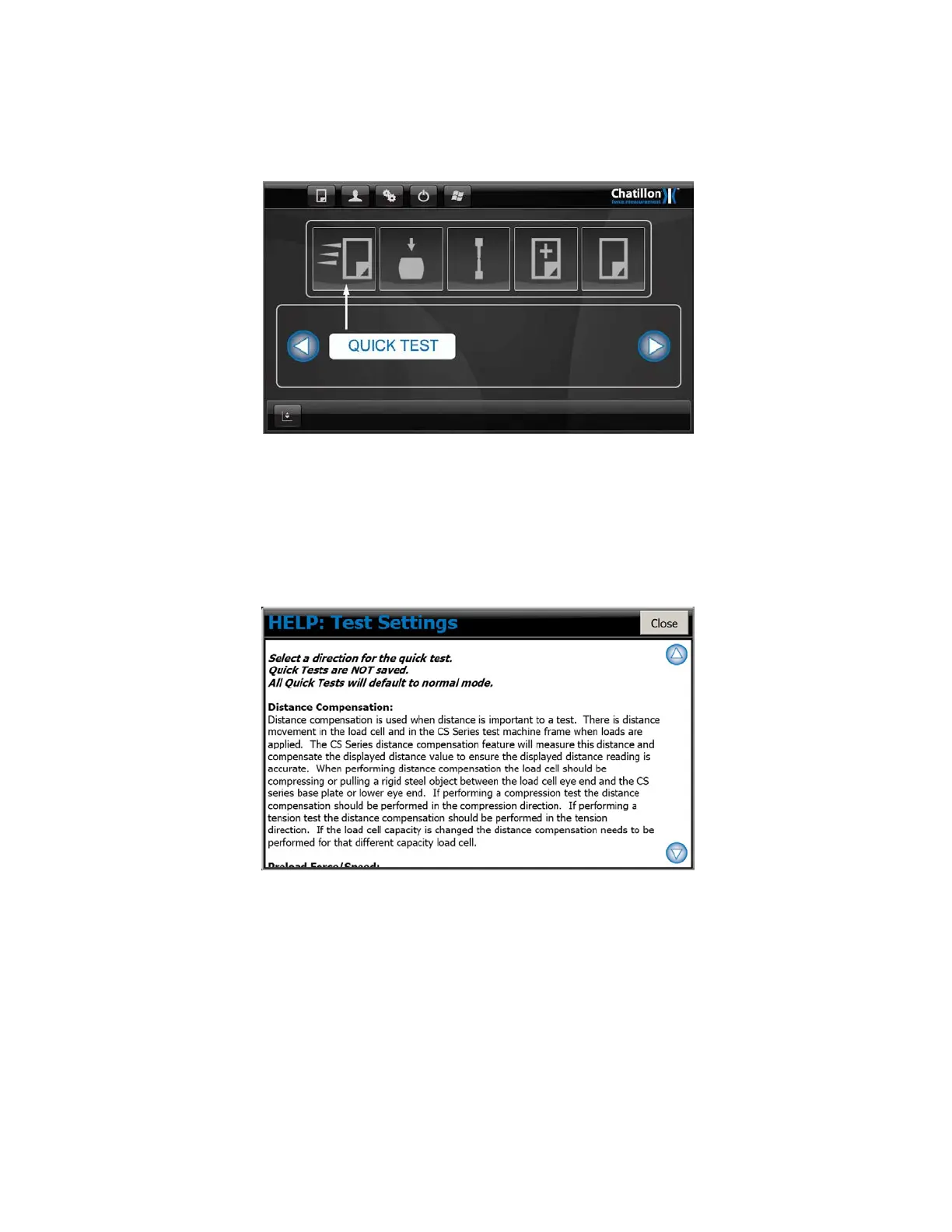

Press the large "QUICK TEST" Icon on the "HOME" screen to display the "TEST
SETTINGS" screen.
A test is created by moving through a sequence of configuration screens which is intuitive
and easy to use.
Each configuration screen has a "HELP (?)" button at the bottom of the screen and pressing
this “?” button will display relevant "HELP" information. Each help screen only displays the
information for the displayed configuration screen for ease of use.
44 CS User Manual
