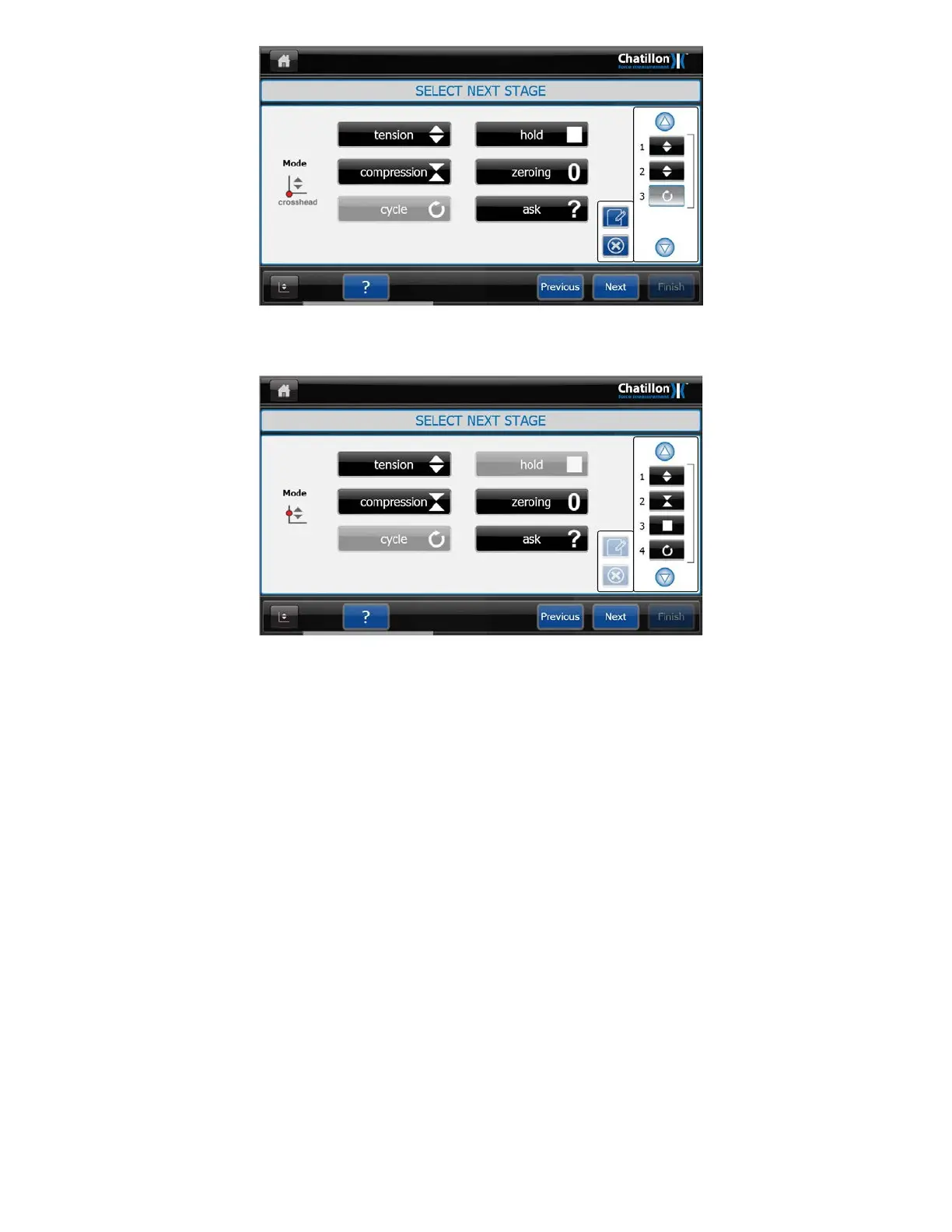

If the "HOLD" stage button is pressed, then a "HOLD" stage will be inserted between stages
2 and 3 so that the "CYCLE" stage now becomes stage 4. Note that the Cycle Loop
"Bracket" now encloses stages 1 to 4.
If another stage is required at the BOTTOM of the stage list and a stage is selected, press
on the "EDIT" button to view the stage then close the stage. All stages will be de-selected in
the "STAGE LIST" so the next stage will be added at the bottom of the "STAGE LIST".
9.13
TEST RESULTS
SCREEN
After all stages have been set, press on the "NEXT" button at the bottom of the screen to
display the "TEST RESULTS" screen.
Press on the top left drop down button labeled "NONE" to display a drop down list containing
a list of every stage shown in the "STAGE LIST" on the right hand side of the
"
SELECT NEXT
STAGE" screen.
This list could contain "NONE", "OVERALL RESULTS", "TENSION STAGE",
"COMPRESSION STAGE", "HOLD STAGE", "ZEROING STAGE", "QUESTION STAGE"
and /or "CYCLE STAGE".
CS User Manual
71
