A dialog can be displayed during the test sequence to prompt the user to perform some
action or to request information from the user. This information is stored in the test file but
cannot be used to control the test.
Press on the "Label" entry area to display an alphanumeric keypad. Enter the required Label
then press on the ENTER button. Press on the "Question" entry area to display an
alphanumeric keypad. Enter the required Question then press on the ENTER button.
Note that the "Label" cannot be more than 7 characters long but the "Question" can consist
of up to 22 characters. The "Label" is used to display the information on the screen but the
"Question" is used to display a user prompt on the question dialog. (See later).
9.11
EDITING OR DELETING
A STAGE
A previously defined stage can be edited or deleted as required. Select the required stage
by pressing on it in the "STAGE LIST" shown on the right hand side of the screen, to enable
the "EDIT" and "DELETE" buttons.
Press the "EDIT" button to redisplay the relevant configuration screen then change the
settings as required.
Press the "DELETE" button to remove the stage from the "STAGE LIST".
Note that there is NO undo feature to restore a deleted stage.
9.12
ADDING
A STAGE
Pressing on one of the 6 stage buttons will normally add the new stage to the bottom of the
"STAGE LIST" which is shown on the right hand side of the screen.
However, a stage may be inserted WITHIN the "STAGE LIST" by selecting the stage
BELOW the required new stage and then pressing on one of the 6 stage buttons to add the
new stage ABOVE the selected stage.

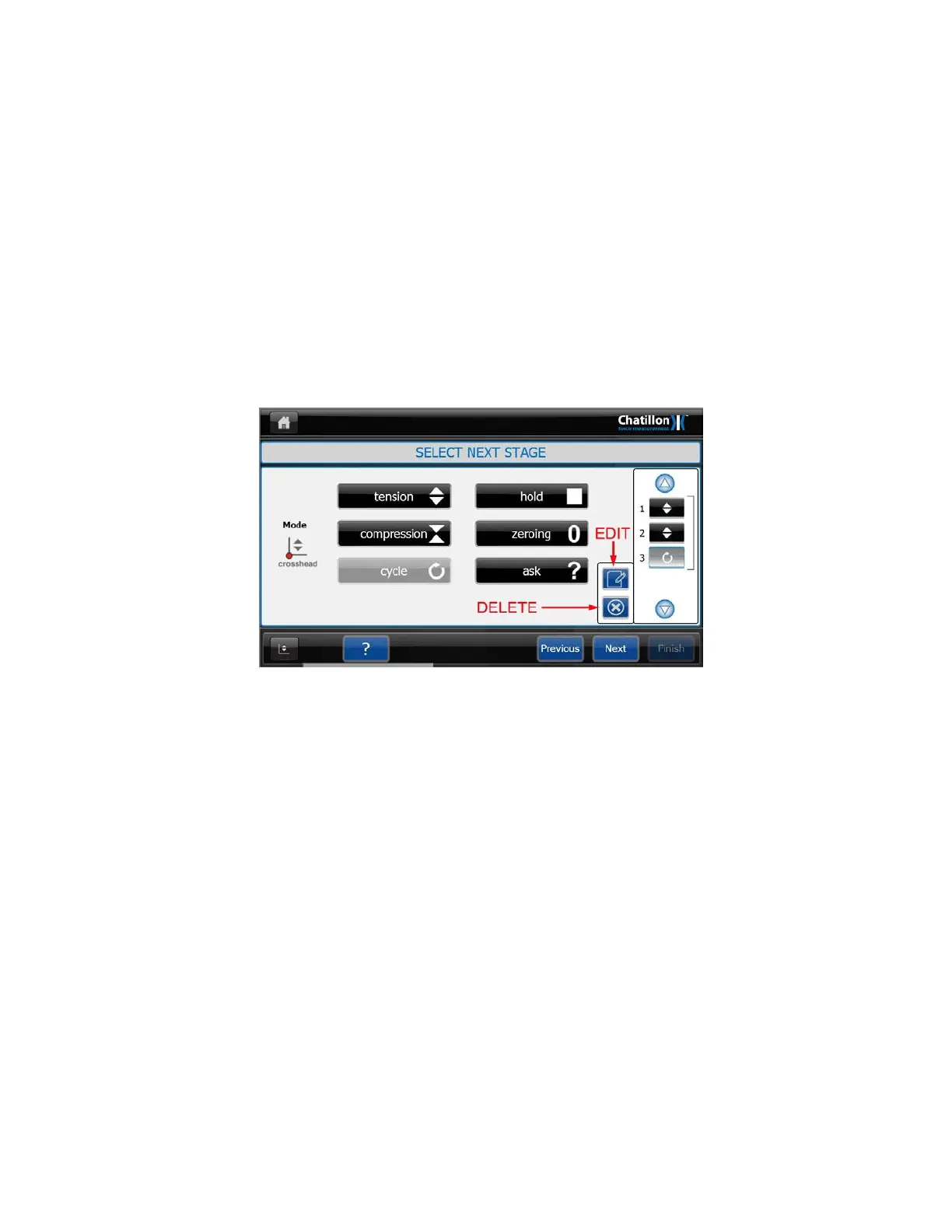

The screen below shows that stage 3 is selected.
70 CS User Manual
