17.0
COMMUNICATIONS
The CS Console has a 9-pin, D-type, RS232 connector which may be used for ASCII
command and control inputs from a computer.
This feature is only to allow the Force Tester to be "simply" controlled by a
computer.
Note
that a computer is not required to operate the Force Tester "Stand-Alone". Connect
the computer to the CS Console using the optional cable accessory part number
SPK/CS/0051. This cable is fitted between the RS232 connection (9 Pin D-Type) on the left
hand side of the CS Control Console and the USB connection on the computer.
17.1 CONFIGURING THE
COMMUNICATIONS

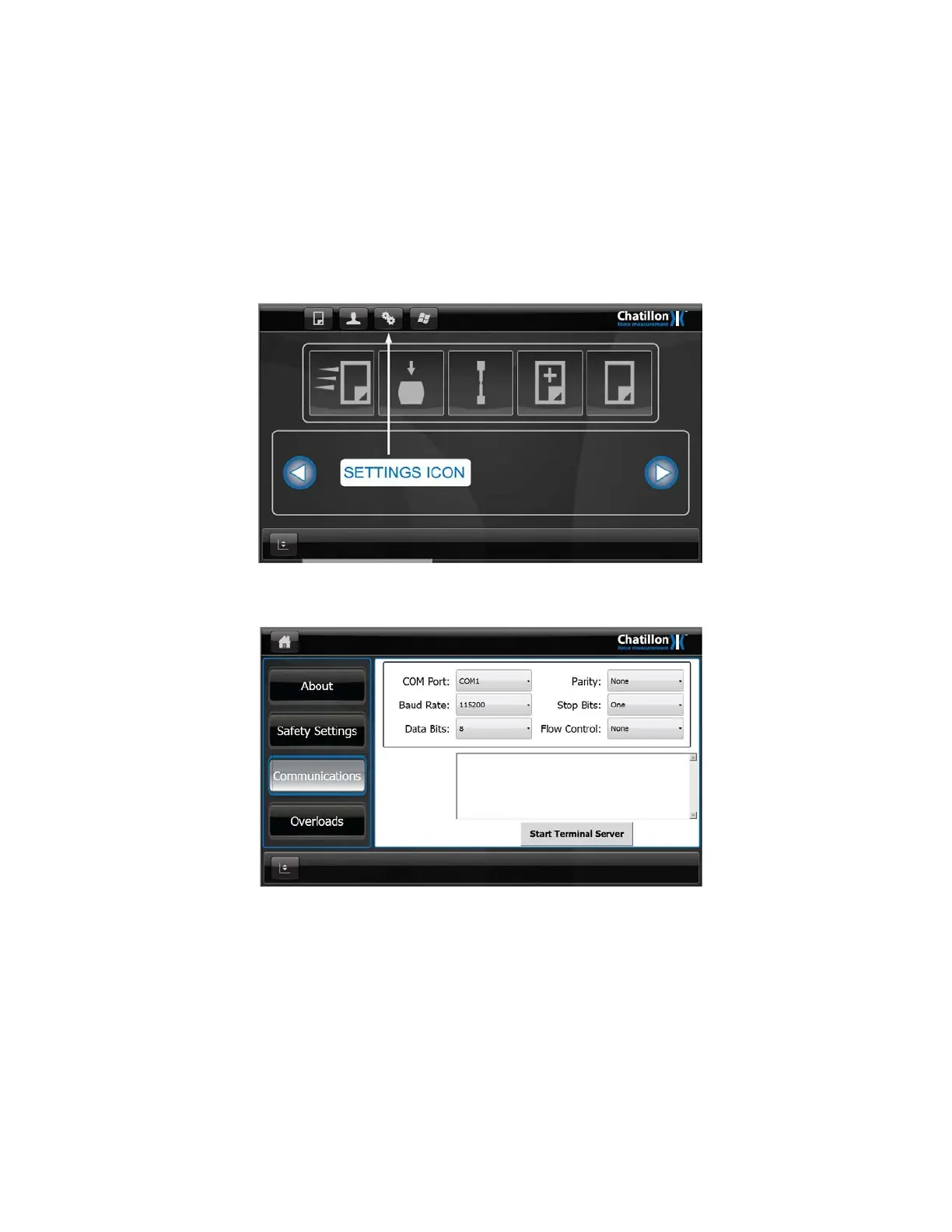

Press the "SETTINGS" Icon at the top of the screen (3rd Icon from the left) to display the
"CONFIGURATION" screen.
Press the "COMMUNICATIONS" button on the left hand side of the screen (if not already
selected) to display the "COMMUNICATIONS" screen.
114 CS User Manual
