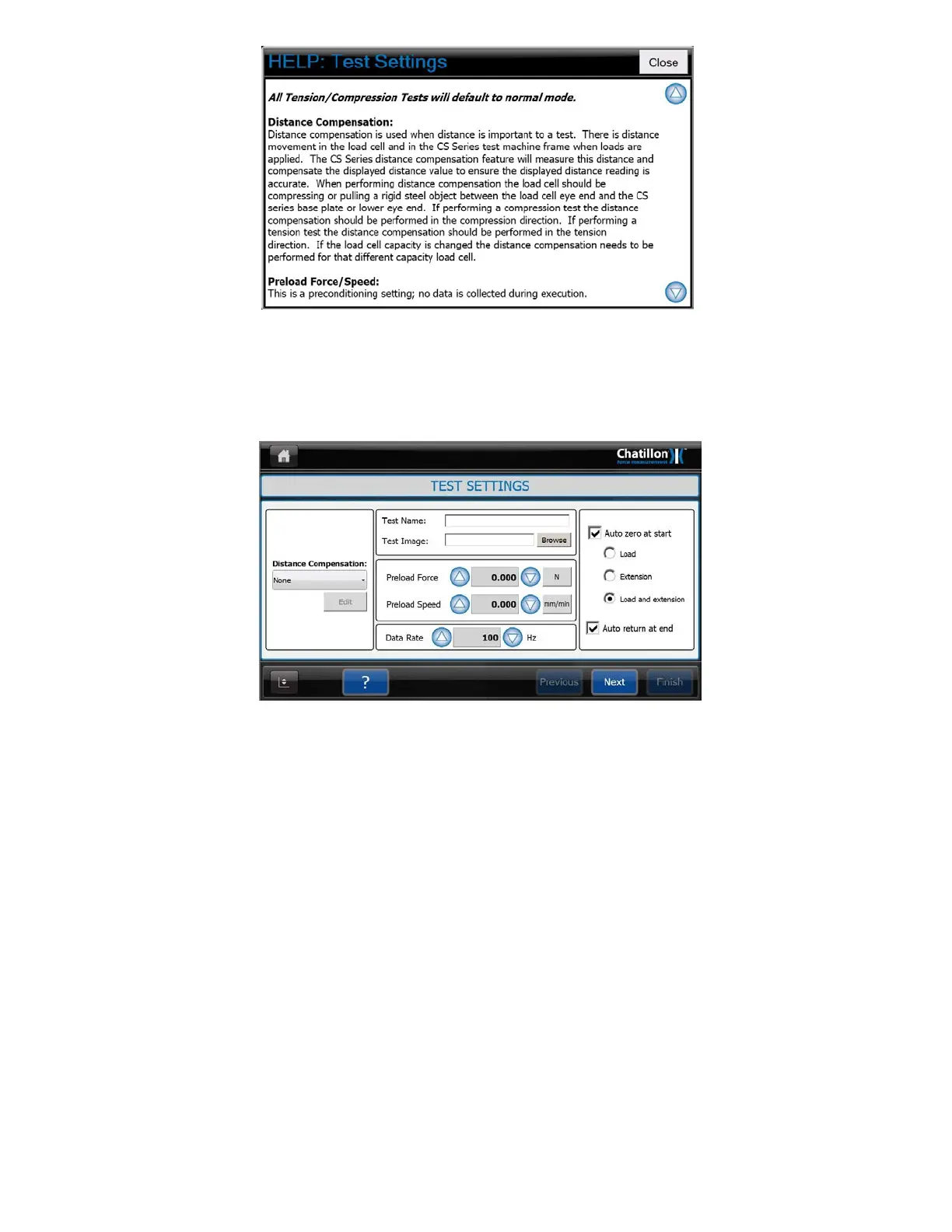

The first configuration screen displays the "Basic Settings" for the test and includes "Test
Name", "Test Image", "Distance Compensation", "Preload", "Data Rate", "Auto Zero" and
Auto Return".
Note that there is NO "Direction" selector because the test direction has already been
selected using the large Icons on the "Home" screen.
Press on the "Test Name" entry area to display the alphanumeric keypad then enter the
required name for the test file.
Please note that if a Test Name is NOT entered, then the system will automatically name the
test files "New Test" followed by a sequential test number in brackets, e.g. "New Test(1)",
"New Test(2)", "New Test(3)" etc.
For information, the test files are stored in the control console in a folder called
"C:\Documents and Settings\MyUser". The operator does not have to use Windows to
select, use or store these test files because these functions are built into the Dedicated Test
Program.
CS User Manual
51
