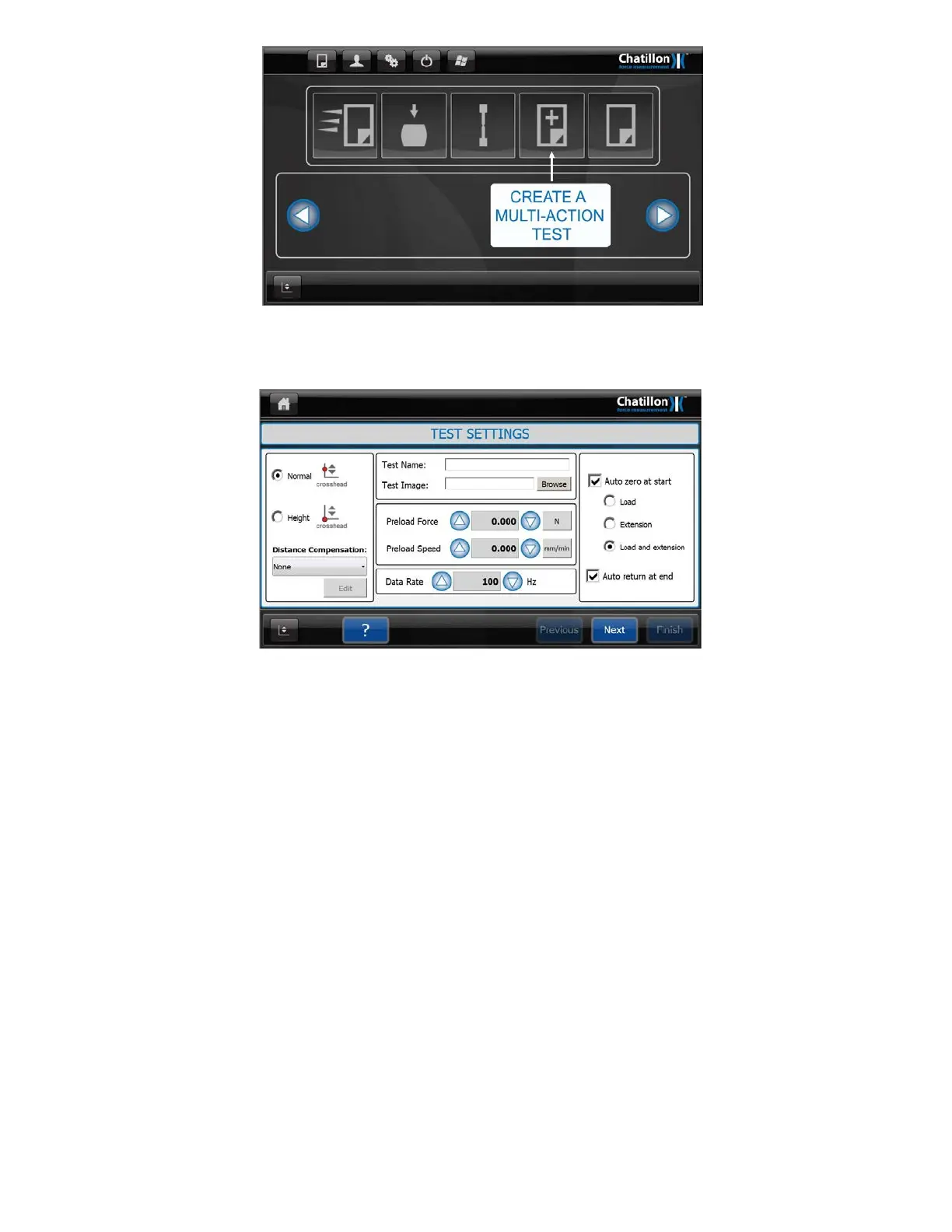

The first configuration screen displays the "Basic Settings" for the test and includes "Test
Name", "Test Image", "Height Mode", "Distance Compensation", "Preload", "Data Rate",
"Auto Zero" and Auto Return".
Press on the "Test Name" entry area to display the alphanumeric keypad then enter the
required name for the test file.
Please note that if a Test Name is NOT entered, then the system will automatically name the
test files "New Test" followed by a sequential test number in brackets, e.g. "New Test(1)",
"New Test(2)", "New Test(3)" etc.
For information, the test files are stored in the control console in a folder called
"C:\Documents and Settings\MyUser". The operator does not have to use Windows to
select, use or store these test files because these functions are built into the Dedicated Test
Program.
A small picture can be displayed in the Test Selector area (see later) to assist the operator
when selecting a test file. The picture should be in .jpg format and this needs to be stored in
the "C:\Documents and Settings\MyUser" folder.
CS User Manual
