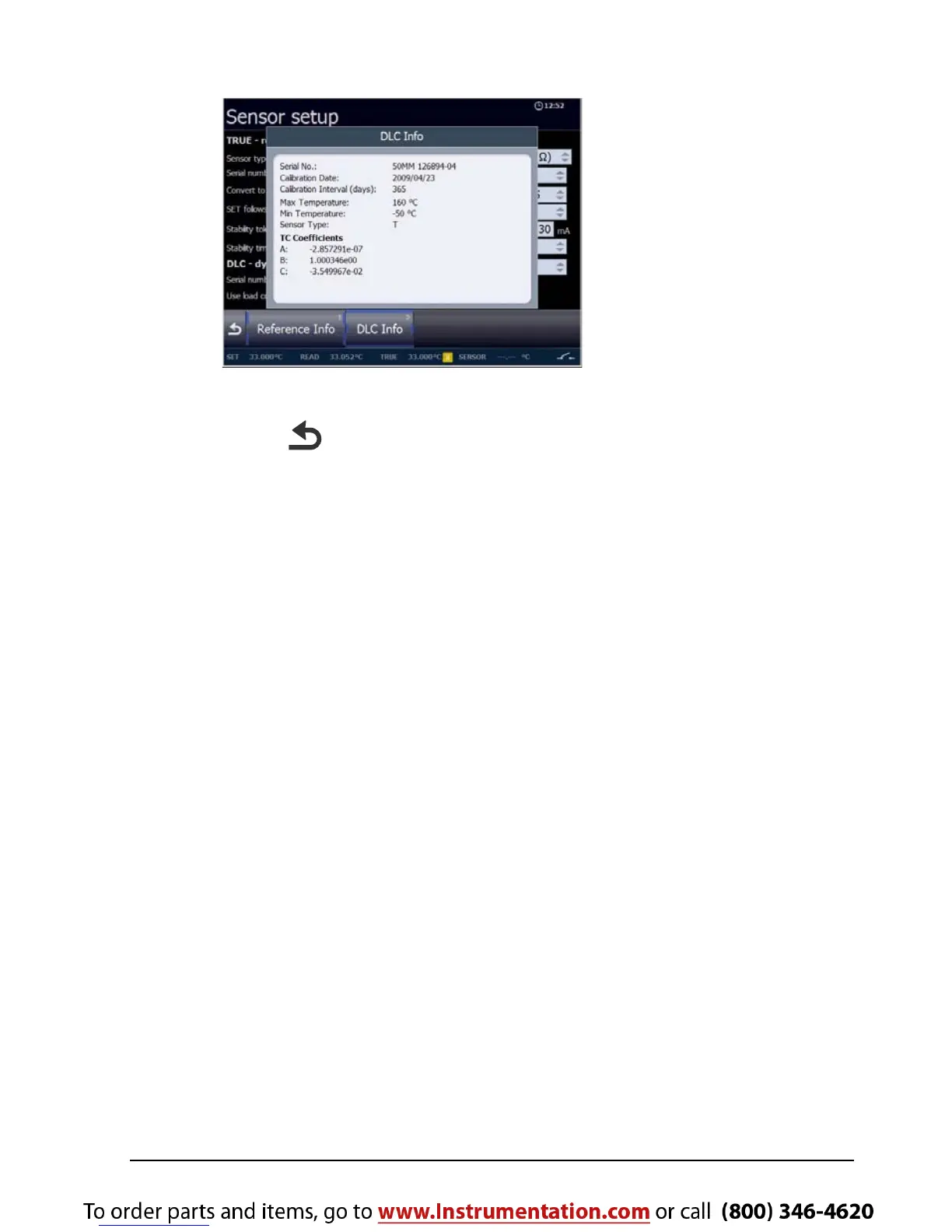

View the DLC Info box by selecting “DLC Info
2
”.
The DLC Info box is displayed.
Press to return to the Sensor setup menu.
84
86
Table of Contents
Default Chapter
3
About this Manual
3
Table of Contents
4
1 Introduction
7
Warranty
9
2 Safety Instructions
10
3 Setting up the Calibrator
17
Receipt of the Calibrator
17
Preparing the Dry-Block Calibrator
20
When Setting up the Dry-Block Calibrator, You Must
22
Choice of Insertion Tube
24
Inserting the Sensors
25
Preparing the Liquid Bath Calibrator (RTC-158/250 A/B/C Only)
27
When Setting up the Liquid Bath Calibrator, You Must
29
Selection of Fluids
34
Handling of Lids
35
Inserting the Sensors
36
Programming Intelligent Sensors
37
4 Operating the Calibrator
38
Standard Connections
38
Input Modules (B and C Versions Only)
40
Keyboard and Main Screen Display Overview
42
Main Screen Display Information
45
Main Screen Temperature Values
47
Stability of Temperature Values
47
Operating Principle
48
Horizontal Menu
48
Vertical Menu
49
Parameter Fields
50
Working with Lists
52
Starting the Calibrator
55
Setting the Temperature
56
Calibration
56
Running a Calibration
58
Viewing Calibration Results
62
Displaying Calibration Information
63
Deleting Workorders
65
Switch Test Menu
66
Running a Switch Test
67
Showing Switch Test Results
69
Auto Step Menu
73
Running an Auto Step Calibration
73
Auto Step Test Results
76
4.10 Sensor Setup Menu
78
Setting the Additional Stability Time (a Version)
78
Setting the Parameters for TRUE - Reference Sensor (B and C Versions Only)
79
Setting the Parameters for DLC- Dynamic Load Compensation (B and C Versions Only)
81
Setting the Parameters for SUT- Sensor under Test (B Versions Only)
81
Viewing the Reference and DLC Data (B and C Versions Only)
84
4.11 Calibrator Setup Menu
86
Setting the Temperature Parameters
86
Setting the Temperature Resolution
88
Setting the Sound, Volume and Operating Mode
89
Setting Calibration Interval
90
Changing the Date and Time
90
Saving a Setup
91
Loading a Setup
92
Resetting the Instrument Setup to Factory Defaults
93
Network Configuration (for Service Use Only)
93
Selecting the Stirrer Speed (RTC-158/250 A/B/C Only)
94
4.13 Information Screen
95
4.14 about the Calibrator
96
4.15 Simulation or Training
96
5 After Use
98
Storing and Transporting the Calibrator
98
Transporting the Dry-Block Calibrator
100
Transporting the Liquid Bath Calibrator
101
Emptying the Well (Liquid Baths Only)
101
6 Replacing the Main Fuses
103
Error Messages
104
Returning the Calibrator for Service
106
7 Maintenance
109
Cleaning
109
Adjusting and Calibrating the Instrument
111
Maintenance of STS-Reference Sensor
112
Maintenance of DLC-Sensor
114
8 Technical Specifications
115
List of Accessories
167
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ametek JOFRA RTC-156 B and is the answer not in the manual?
Ask a question
