4.2 Input modules (B and C versions only)
Warning
 The input terminals must NEVER be connected to
voltages exceeding 30V with reference to ground.
Description of sockets for external connections

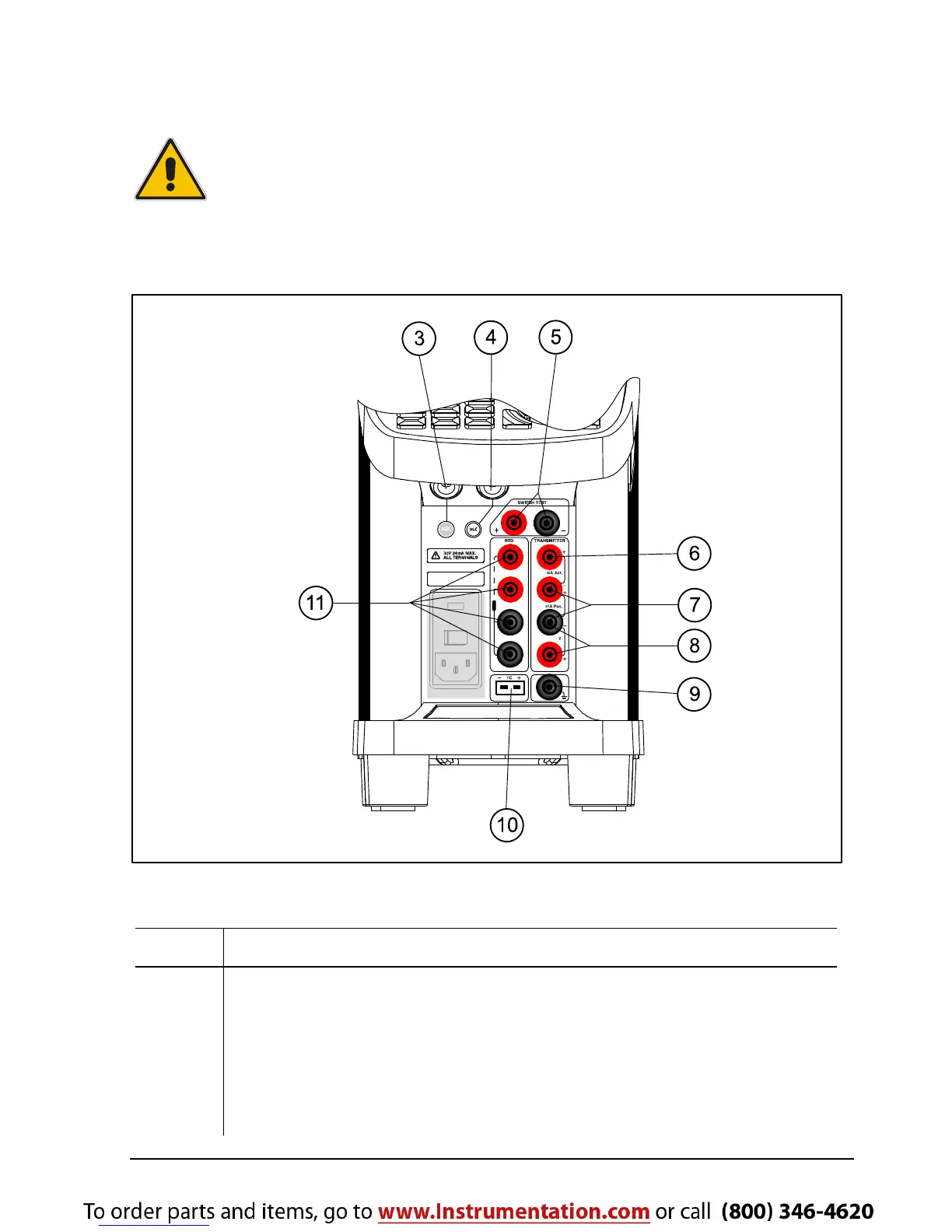

Fig. 8
Pos. Description
3 Input for reference sensor (B and C versions)
4 Input for DLC sensor (B and C versions)
5 Connection for thermostat switch test (B-version)
Note that this connection is for voltage free switches
