OXYvisor Analyzer Dimensions
OXYvisor Analyzer Overview

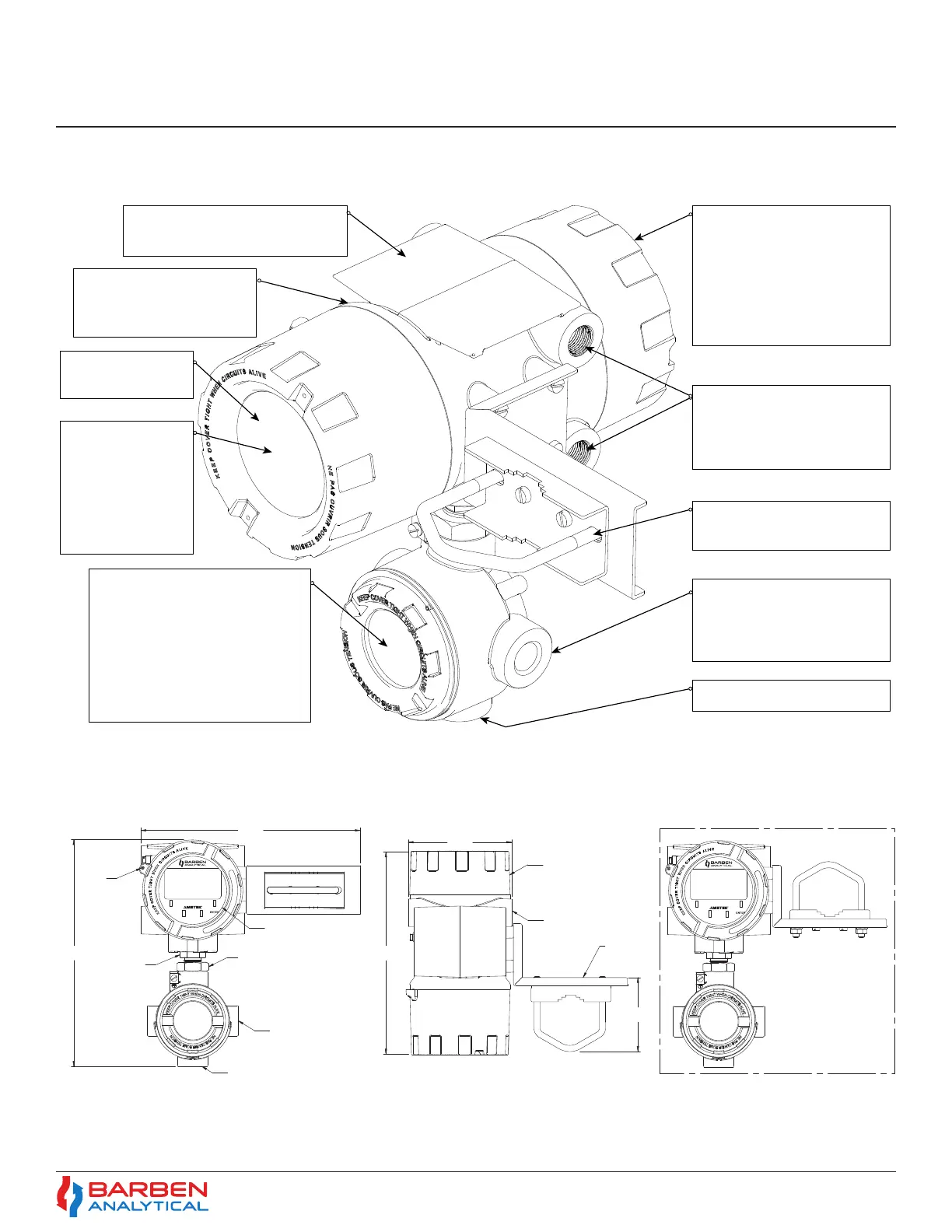

Figure 4 - OXYvisor overview of hardware features
Rear (Wiring) Compartment -
Contains the connection termi-
nals for power and all I/O’s
except oxygen sensor. The cap
(cover) is threaded, sealed via
O-ring and secured with a set
screw. The features allow easy,
but controlled, access to wiring
terminals.
Conduit Entries-
There are four 3/4” FNPT or
M25x1.5 6H conduit entries
(size selected during ordering)
for the Rear (Wiring) Compartment.
Conduit Entries (Junction Box)-
There are two 3/4” FNPT or
M25x1.5 6H conduit entries
(size selected during ordering)
for the Junction Box
Nameplate / Label -
Contains the part number, company
info, and the Hazardous Area Markings.
Pipe Mount Bracket-
316 SS, 2” Pipe / Field Mounting
Bracket.
Oxygen Sensor Entry
1/2” FNPT for the Oxygen sensor
Flameproof glass (Ex d)-
Protects the HMI, LCD
and other electronics.
Human Machine Interface
The HMI, located
behind the flameproof
glass, includes backlit
LCD and Through-the-
glass keypad for user
configuration and full
interactive use.
Junction Box -
Contains easily accesible sensor
connection(s).
All analyzer models -
SMA connector for optical O2 sensor
or optical fiber wand assembly.
All analyzer models except Zone 1
Molex connector for Pt1000 RTD
Rugged Industrial Enclosure -
IP66 / NEMA4x, pressure die-
casting with yellow chromating
and chemically resistant paint.
Figure 5 - OXYvisor Overall Dimensions
Section 2
Technical Product Specication
11.4"
288mm
DISPLAY AND THROUGH-
THE-GLASS TOUCH
KEYPAD
3/4" FNPT (X2)
or M25 x 1.5 6H
conduit entries
1/2" FNPT (X1)
11.7"
298mm
FIBER OPTIC
BUSHING
P/N B3907-1SFP
or B3907-2SFP
JAM NUT
(FOR J-BOX ROTATION)
2 mm
Hex Lock
ESC




OXYvisor
5.4"
136mm
10.5"
266mm
REAR WIRING
COMPARTMENT
2” MOUNT
BRACKET
B5008-1125
3.8"
97mm
ALTERNATE MOUNT STYLE
HORIZONTAL PIPE
ESC




OXYvisor
3/4" NPT (X4)
or M25 x 1.5 6H
conduit entries
FRONT VIEW TOP VIEW
FRONT VIEW
(ALTERNATE MOUNT)
