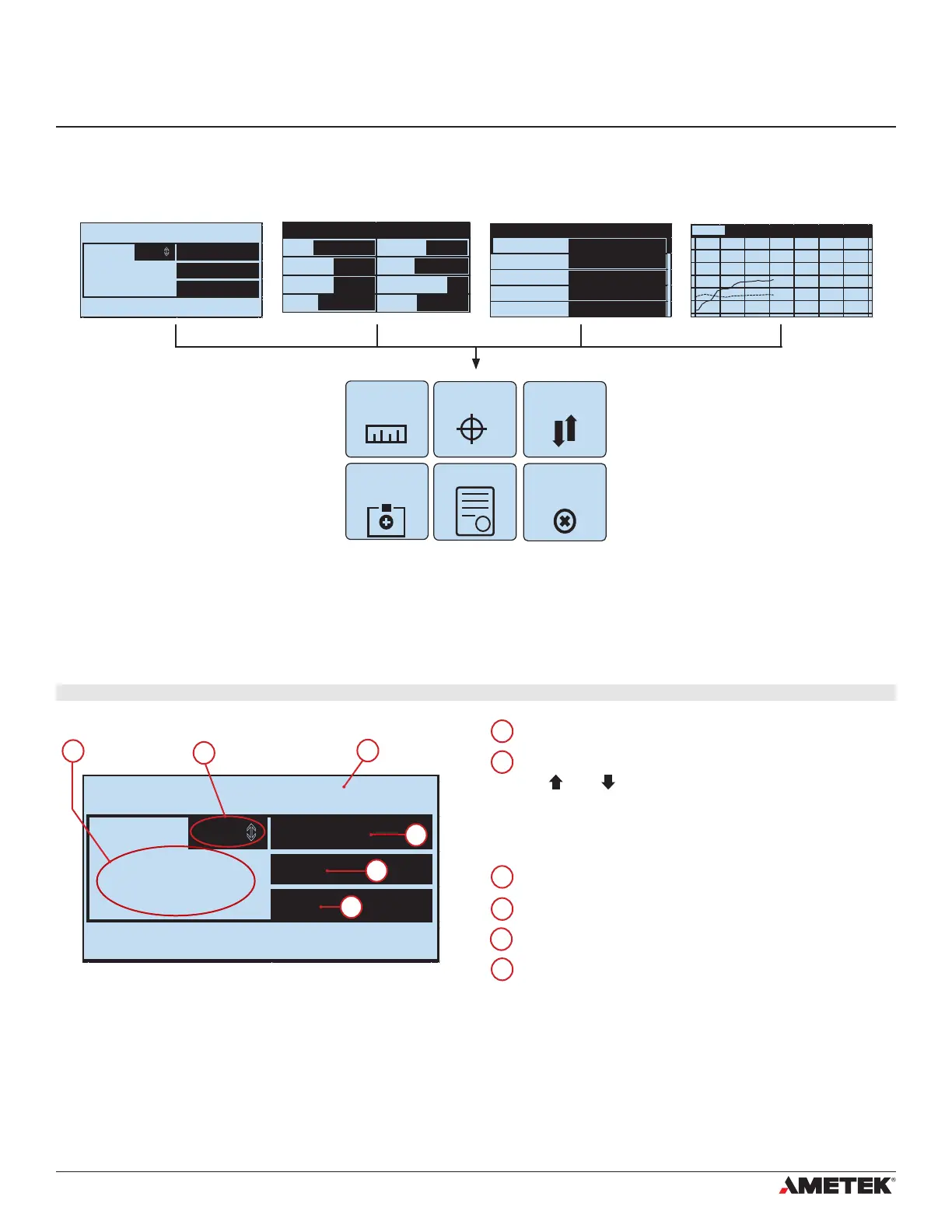

Ametek OXYvisor - Main Display - Functions and Use; Figure 28 - Main Display (Four Viewing Options) and Sub-Menu Options

46
Installation, Operation and Maintenance Manual
OXYvisor Optical Oxygen Analyzer
Oxygen measurement value
Date MM/DD/YYYY and 12 hr clock (am/pm)
Pressure - Measured and Compensated
Temperature - Measured and Compensated
Error Code - Will show any error value. If multiple
errors exists it will sequentially show each of them.
“0” is no errors.
5.6 Main Display - Funcons and Use
The Oxygen Units can be temporarily changed
via the and arrows for convenience. This
does not a󰀨ect the 4-20 output. The units will
reset to the selected parameter upon exiting the
screen.
3
4
5
6
1
2
Oxygen
01/06/2017 10:55 AM
850.9 mBar
67.9°F
Err: 0
20.946

% O2

3
4
5
6
1
2
Oxy Phase
Sample Amp
Temp Error
Pres Time
Alternate Main Display
67.9°F
20.948 %O2
5 sec
850.9 mBar
29.34°
28,716
0
10:55 AM
Input/Output Display
1. Analog Out 1
2. Analog Out 2
3. Analog In
4. Relay Out 1
5. Relay Out2
17.49 mA (Oxy)
0.0mA (N.A)
12.21mA (Temp)
Open (Cal)
Open (Cal)
˗
100% O
2
212°F
˗
˗
˗
˗
˗
˗
˗
˗
˗
˗
˗
20.948 % O
2
67.9
°
F 3h 50m 21s
O2 & Temp
↕
Oxygen
01/06/2017 10:55 AM
850.9 mBar
67.9°F
Err: 0
20.946

% O2

Calibration
Measurement
& Units
Input Output
Datalogging

Help Error
Codes
Diag-Test
Security
MAIN DISPLAY (FOUR VIEWING OPTIONS)
SUB-MENU OPTIONS
ESC ◄ TO ENTER SUB-MENUS
Figure 28 - Main Display (Four Viewing Options) and Sub-Menu Options
Section 5
Operations
