41
Installation, Operation & Maintenance Manual
OXYvisor Optical Oxygen Analyzer

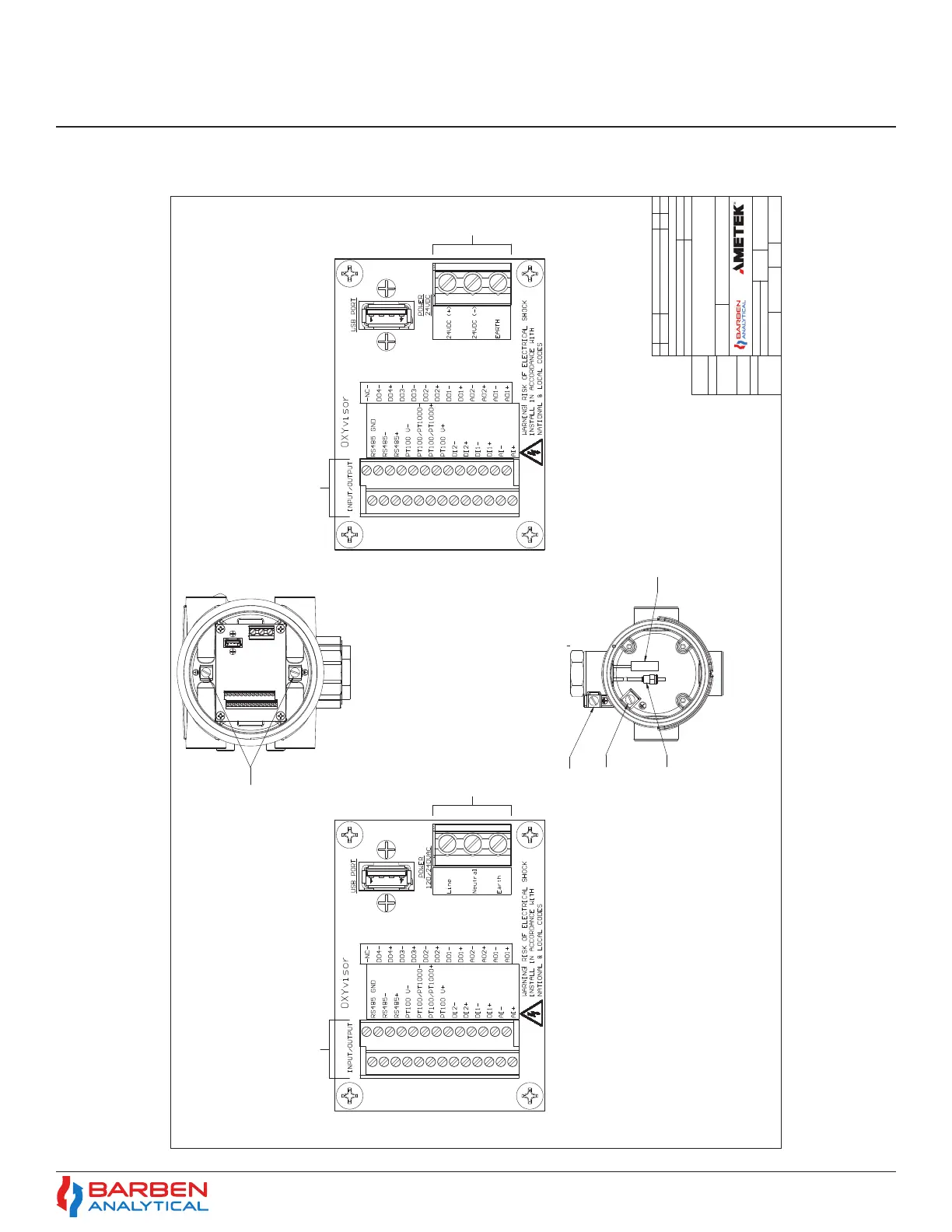

Figure 25 - Class I Div. 2 HazLoc - Installation Control DWG - 2P0335 (p.2)
AC OPTION
DC OPTION
FRONT VIEW OF JUNCTION BOX
(DOOR REMOVED)
COMMUNICATION, TRANSMITTER, RELAY,
AND CONTROL BLOCK WIRING
1. ALL FIELD WIRING MUST HAVE 300V INSULATION, MINIMUM. POWER WIRING: 12 TO 14 AWG, STRANDED COPPER CONDUCTOR. COMMUNICATION, TRANSMITTER, RELAY AND CONTROL WIRING: 16 TO 24 AWG, STRANDED COPPER CONDUCTOR.
POWER
INPUT
WIRING
BLOCK
COMMUNICATION, TRANSMITTER, RELAY,
AND CONTROL BLOCK WIRING
POWER
INPUT
WIRING
BLOCK
2 OF 3
C. SHIELDS
OXYvisor HAZARDOUS LOCATION
REAR TERMINAL BOARD VIEWS
UNLESS
OTHERWISE
SPECIFIED
ALL ± .015"
FRACTIONAL
.000 ± .005"
.00 ± .010"
.0 ± .015"
APVD BY DRAWN BY
DRAWING NO
DATE SCALE SIZE SHEET
PART NO.
MATERIAL/DESCRIPTION
APVD
DWNDESCRIPTION
DATE
REV
REVISIONS
ANGLES ± 1/4°
TOLERANCES
DIMENSIONS
IN INCHES
ECO#
5200 Convair Drive Carson City, NV 89706 PH(775)883-2500 FAX (775)297-4740
B. WOLF
01/26/2018
2P0335
-
OXYvisor
PART NO.
D
NTS
FOR
REAR VIEW OF ENCLOSURE
TERMINAL COMPARTMENT
(DOOR REMOVED)
INTERNAL PROTECTIVE CONDUCTOR TERMINAL
INTERNAL PROTECTIVE
CONDUCTOR TERMINAL
FIBER OPTIC
CONNECTION
RTD CONNECTION
A 09/26/18 U.L. CHANGES CS BW
EXTERNAL PROTECTIVE
CONDUCTOR TERMINAL
