Ametek OXYvisor - Figure 31 - Sub-Menu Calibration

54
Installation, Operation and Maintenance Manual
OXYvisor Optical Oxygen Analyzer
5.12 Sub-Menu - Calibraon
Calibration
Basic Setup
Advanced
Setup
Factory O2
Sensor
Calibration
Last Cal
Status
Enter Zero Phase Angle
Enter Span Calibration Point
Enter Span Cal Phase Angle
Enter Calibration Temperature
Enter Atmospheric Pressure
Send Factory Cal Data
Manual O2
Calibration
Cal-Temp On
Cal-Temp Off
Enter Temp
Single Point Calibration
Two Point Calibration
Zero Gas Calibration
Span Gas Calibration
Input Span
Gas
Zero Gas Calibration
Span Gas Calibration
Input Span
Gas
Is Humidity Present During Cal
Use Ambient Pressure Sensor
Manual Pressure Input
*Auto O2
Calibration
Setup
Description
Schedule (1
st
, 2
nd
, 3
rd
, 4
th
)
Calibration
Yes / No
Calibration
Frequency
Calibration Time and Interval Time Calibration Should Occur
Time Calibration Should Occur
Interval Between Calibrations
Time to Next
Calibration
Is Humidity Present During Cal
Use Ambient Pressure Sensor
Manual Pressure Input
Enter Span Gas Value
Zero Cal Drift Tolerance
Span Cal Drift Tolerance
Zero Gas Purge Time
Span Gas Purge Time
Calibration Recovery Time
Enable Auto Calibration
*Initiate O2
Auto
Calibration
Start Auto Calibration – 1
st
Time
Start Auto Calibration
Press Esc to Stop AutoCal
*Temperature
Sensor
Calibration
PT100 / PT1000 RTD
Calibration
Pressure Sensor Analog Input
Calibration
*Pressure
Sensor
Calibration
Ambient Temperature Sens
Calibration
OR
* Only accessible in advanced

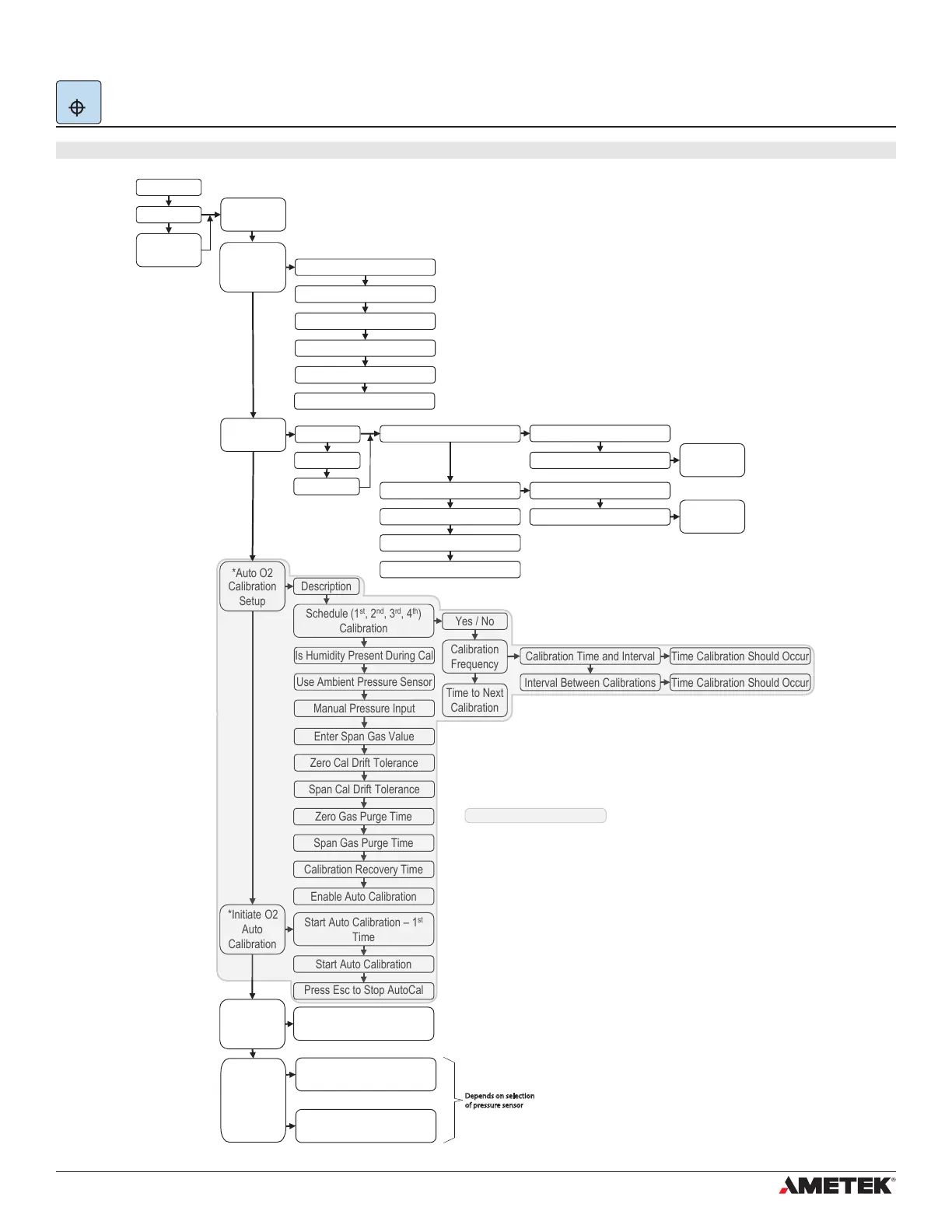

Figure 31 - Sub-Menu Calibration
Calibration
