Ametek Thermox WDG-VC User Manual

3-8 | Thermox WDG-V / VC / VCM with Blow Back
TYP
C
L
PNEUMATIC ACTUATOR
PNEUMATIC DRIVE
SOLENOID VALVE
SOLENOID VALVE
[
[
[
[
[
[
]
]
]
]
]
]
.42
[10.70]
.94
[23.88]

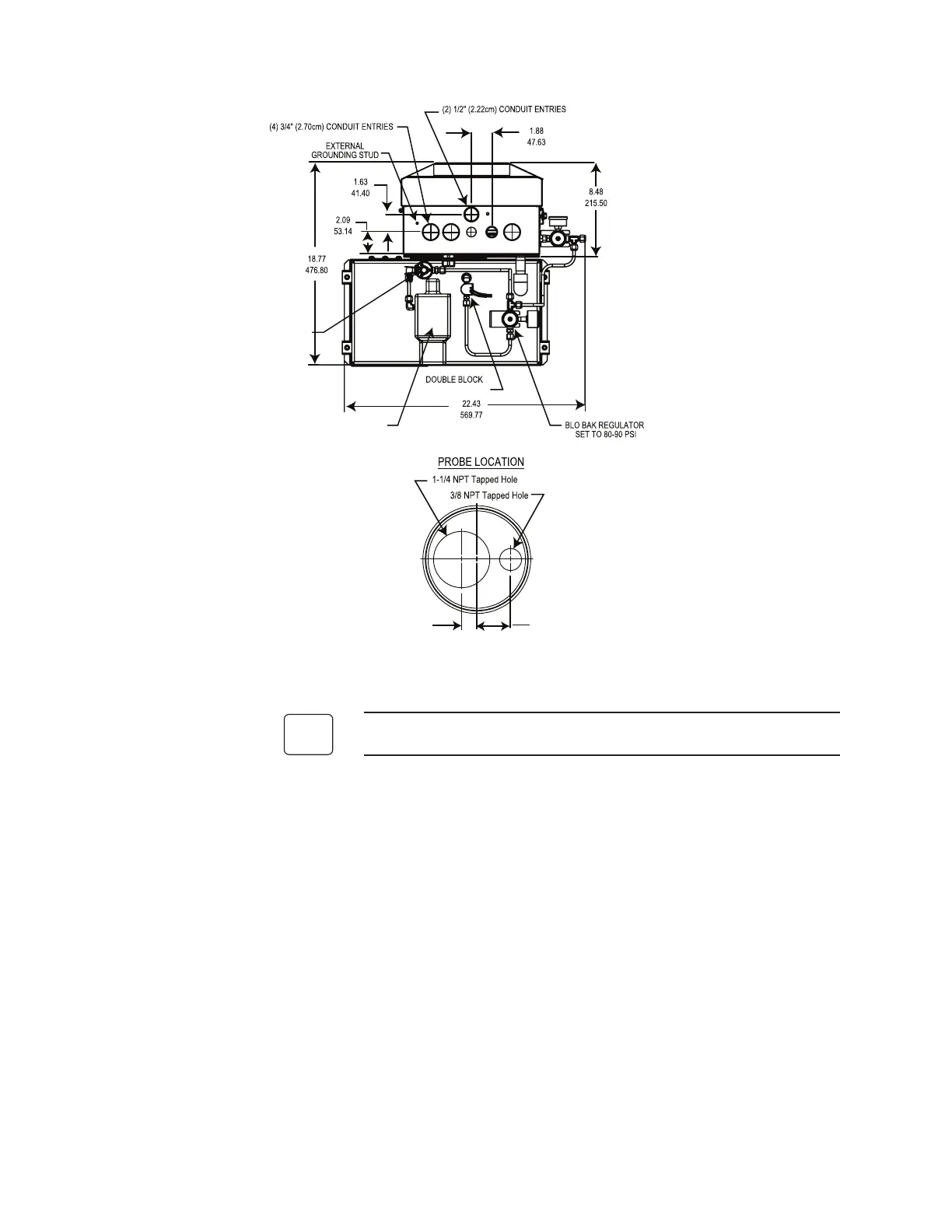

Figure 3-7. Mounting Dimensions - Hinged Sensor.
A 7/16” wrench is required to open both doors to the sensor.
Sensorushmount(PreferredMethod)
Weld the 7” x 7 5/8” (17.78 cm x 19.37 cm) mounting plate (P/N 70626SE)
supplied with the sensor to the process wall over a 3 3/4” (9.52 cm) diam-
eter hole as shown in Figure 3-5. Then bolt the sensor to the mounting
plate. This method positions the sensor as close to the process as possible
and minimizes any chance that the sample gas will cool below its dew-
point.
NOTE

