CAED ADJUSTMENT
Starting the Machine
The procedure of starting the CAED machinel is the same like for the machine BH of the model S-4000.
See the page 1-13 for more instructions. Edge of the material must be minimally aligned with the center line
of the needle slot in the throat plate and the reflective tape of the fibre optic must be covered. Adjust the
correct position of the material by using the movable stop, located on the right side from the clapm feet.
Stitch Length Identification
Set the stitch length gauge to the maximum. The maximal stitch length is 1.57” (40 mm), illiustrated page
1-16. To stitch shorter tack use the fiber optic function, which will automatically toggle the machine for the
second row of stitches at the moment when the material uncoveres the reflective tape.
Caution! If you wish to adjust the stitch length manualy, disconnect the optical fibre from the amplifier. The
signal amplifier is attached to the left side of the main machine switchboard plastic cover .
Home position is when:
The drive spring is before detent on the left shifter arm,
The right horizontal bevel gear is slightly engaged with the vertical bevel gear,
The clamp plate is to the right (towards the head casting),
The needle bar is set on its upper stroke and the first needle penetration must be made to the right
from the operator.
First Row of Stitches:
Tip the machine back on the rest pin. Move the machine to the first row of stitches by rotating the hand
wheel counterclockwise. The main cam is rotating clockwise until the drive spring is dropping into the detent
on the left shifter block. The first row of stitches is finished at the moment when the reflective tape of the
fibre optic is uncovered by the material.

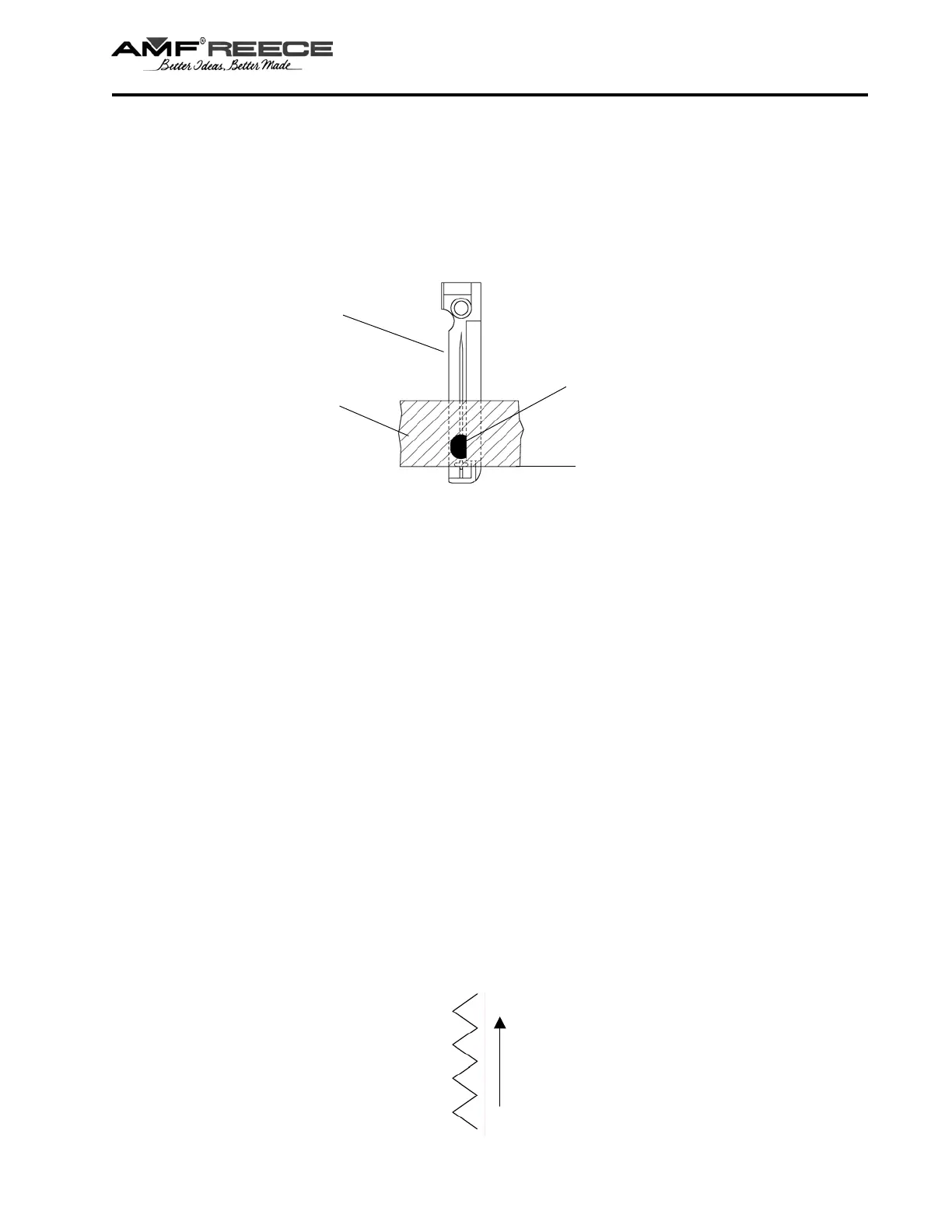

Throat plate
Material
Reflective tape
Direction of feed
Covered needle slot
