Ammann ARX 16 - Draining Engine Oil

Maintenance 101
1201281 A | 24.07.2013
NOTE In order to guarantee operating safety of the engine for the long term, you must
not put any additives in the engine oil.
9.9.3 Draining engine oil
The engine oil drain is located at the front left, between the front and rear chassis.
1 Turn the roller all the way to the right. This provides easier access to the
engine oil drain (1).

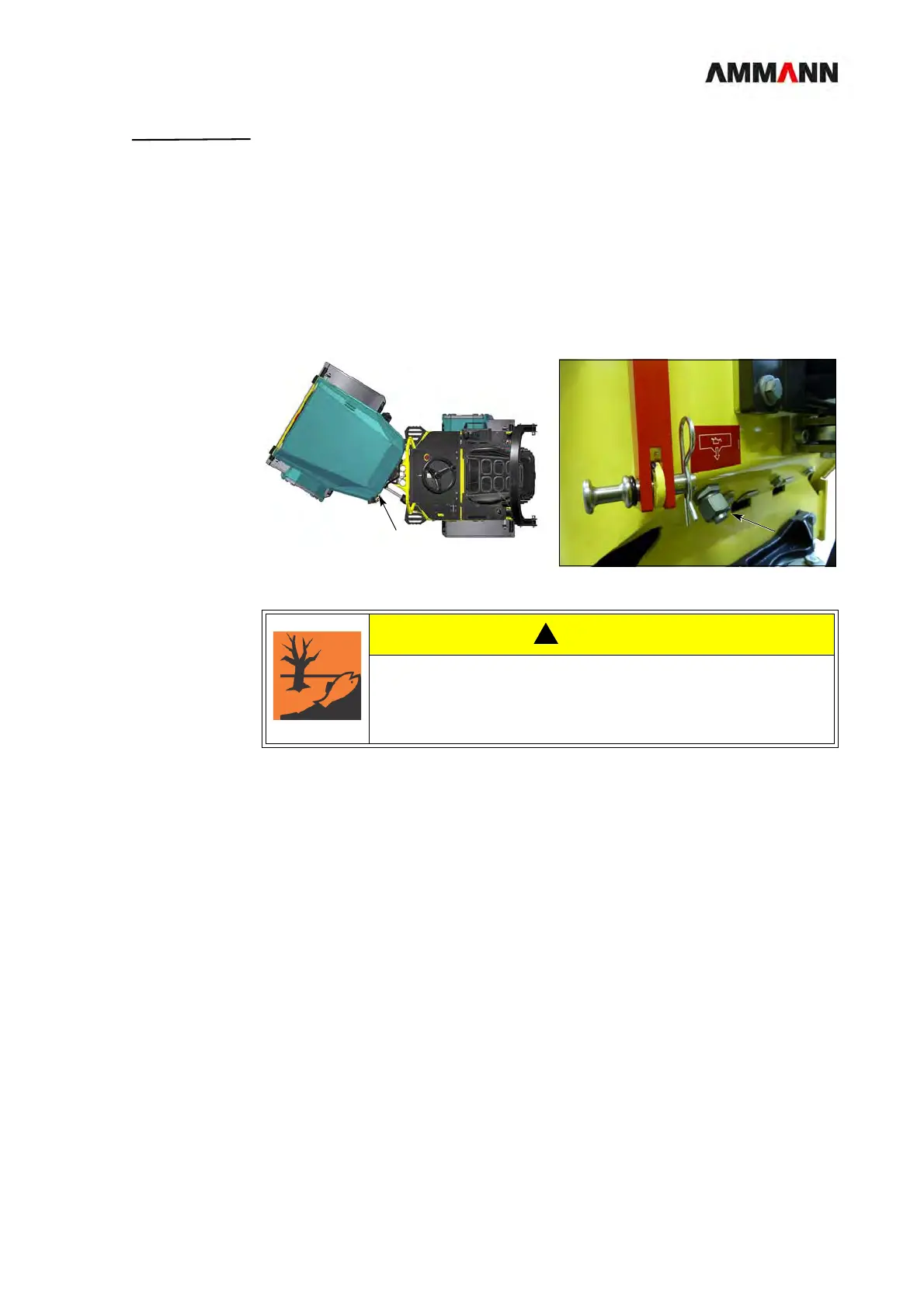

Fig. 9-10 Roller turned fully / Engine oil drain
2 Place a container under the drain.
3 Open the union by turning it anti-clockwise (size 27wrench).
The oil starts to flow out immediately.
CAUTION
Environmental hazard through operating materials!
• Do not allow any liquids to enter drains, the soil or the environ-
ment.
