Ammann ARX 16 - Securing the Roller on the Transporter

140 ARX 1
1201281 A | 24.07.2013

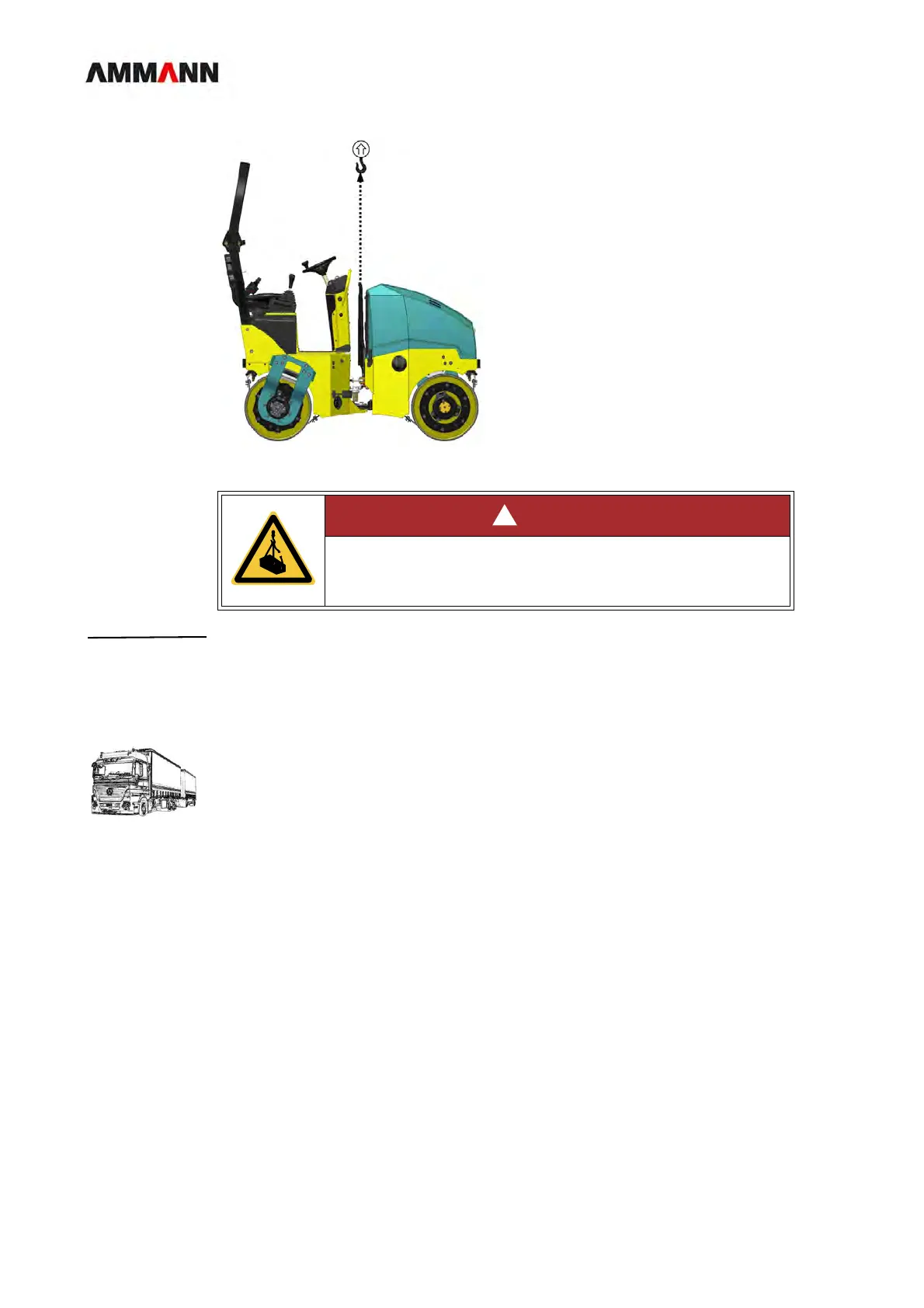

Fig. 12-3 1-point lifting eye
NOTE The roller will weight less if the water tanks are drained before transporting.
12.2.2 Securing the roller on the transporter
1 Bring the joint protection into place.
2 Attach the lashing straps to the lashing rings on the roller and on the truck
2.1 Lashing method: Direct lashing/diagonal lashing as shown in photo
2.2 Use a lashing strap with a permissible tensile force of LC = 2,500 daN
The lashing rings on the roller are designed for a permissible tensile force of
2,500 daN.
Permissible angle ranges for diagonal lashing:
● 0° ≤ α ≤ 60°
● 30° ≤ β ≤ 60°
DANGER
Danger to life through suspended loads!
• Persons should not linger beneath suspended loads!
!
