9.13.8 Pendulum support
Inspect the pendulum support once a year for excessive play (2mm in the joint
bearing).
1 Attach the roller to a crane (1-point lifting eye).
The play can be checked by alternately applying and releasing upward pressure to
the roller (visual inspection).

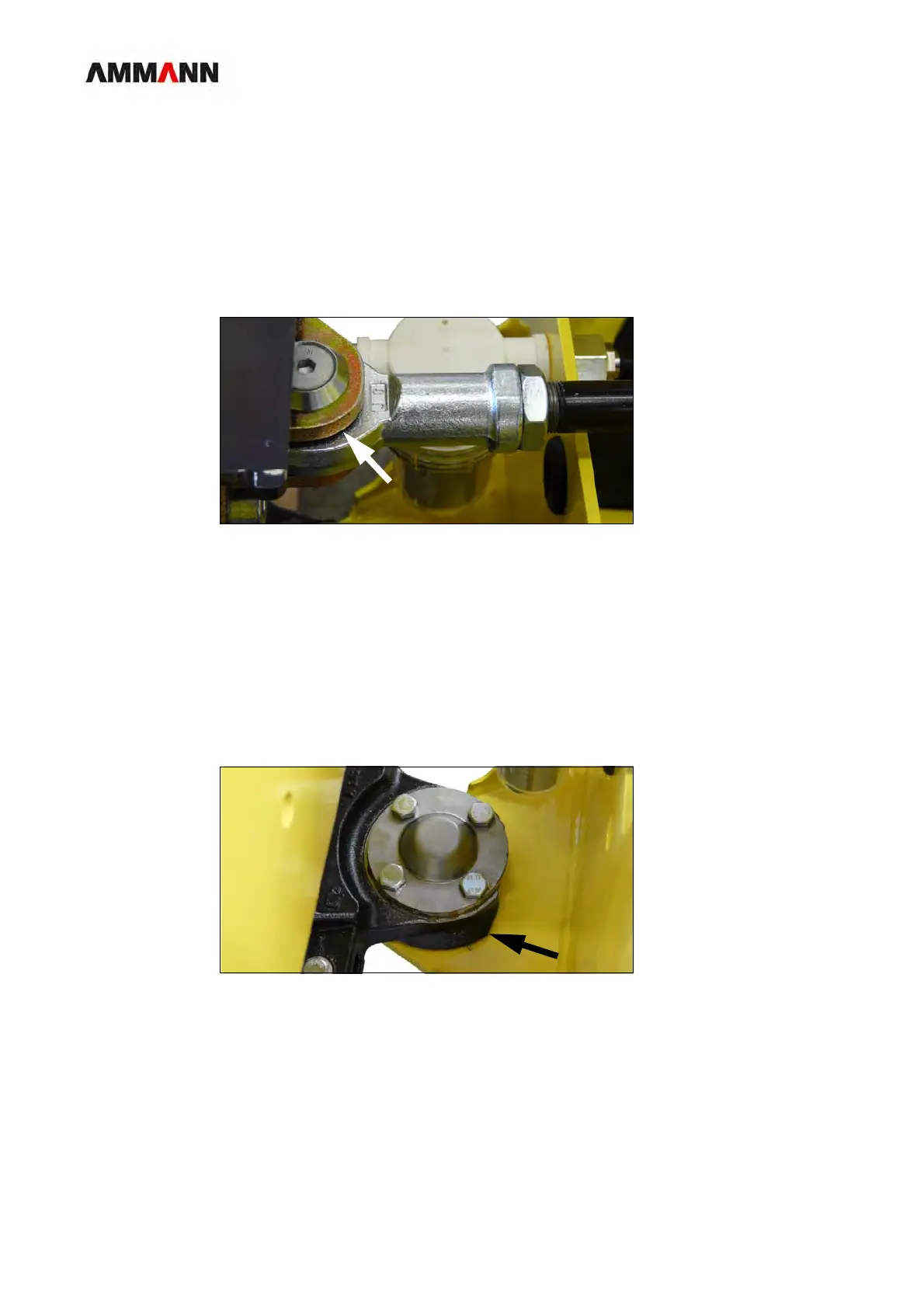

Fig. 9-31 Pendulum support
9.13.9 Articulated joint
Inspect the articulated joint once a year for excessive play (2mm in the joint bearing).
1 Attach the roller to a crane (1-point lifting eye).
The play can be checked by alternately applying and releasing upward pressure to
the roller (visual inspection).
Fig. 9-32 Articulated joint
