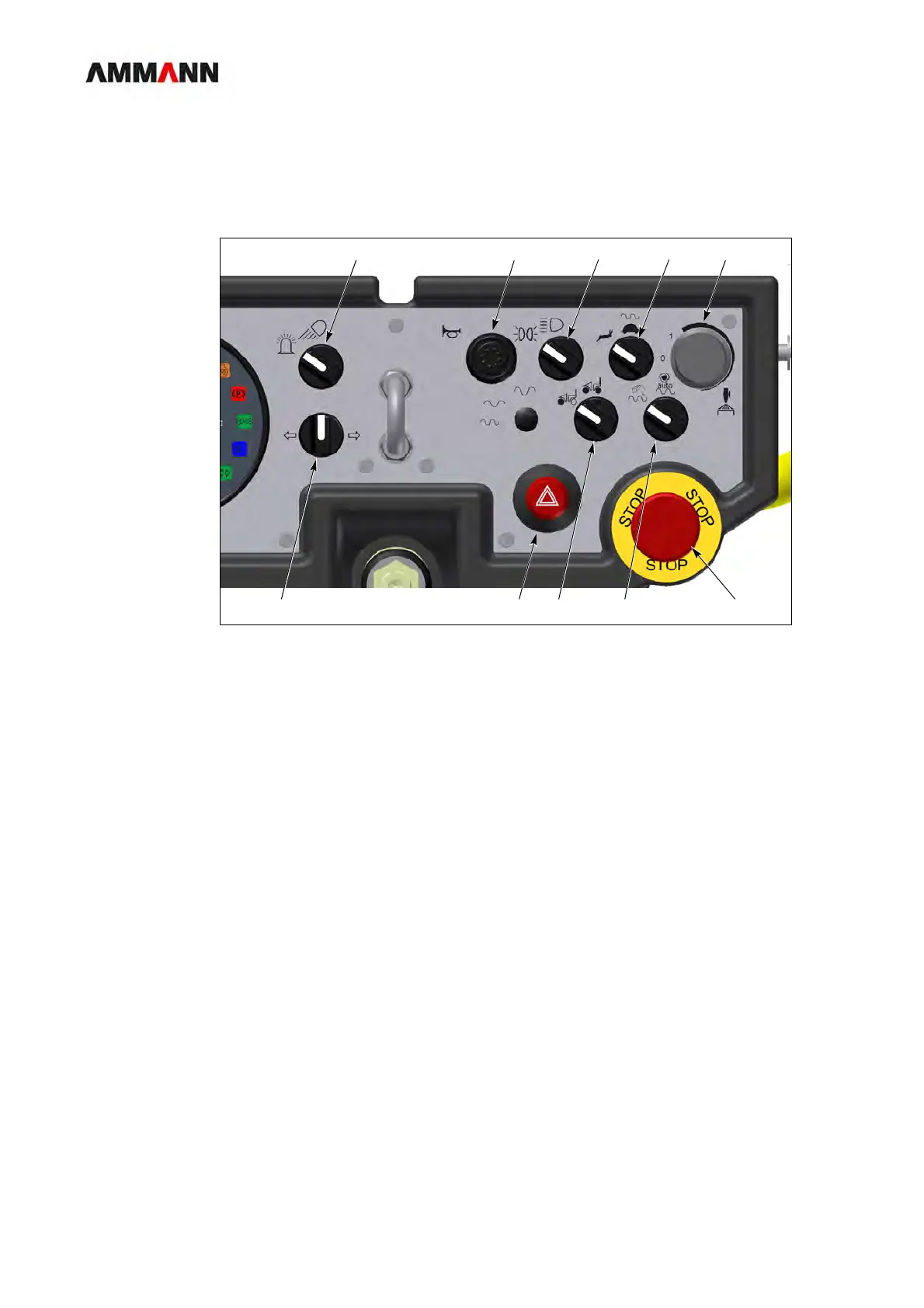

5.1 Instrument panel
5.1.1 Switch functions
1 Operating switch for revolving warning light (option) and work light (option)
2Horn
3 Operating switch for light
4 Operating switch for work gear / transport gear
5 Sprinkling interval switch
6 Indicator switch left / right (optional)
7 Operating switch for hazard flasher (optional)
8 Selector switch - vibration front or front and rear
9 Operating switch for vibration automation
10 Emergency stop
