Ammann ARX 16 - Water Separator Filter Element

Maintenance 99
1201281 A | 24.07.2013
3 Remove the old filter element (1).
4 Insert new filter element (1).
5 Screw the filter housing (3) on.
6 Open stop cock (2).
6.1 Move to ON.
9.8.6 Water separator filter element

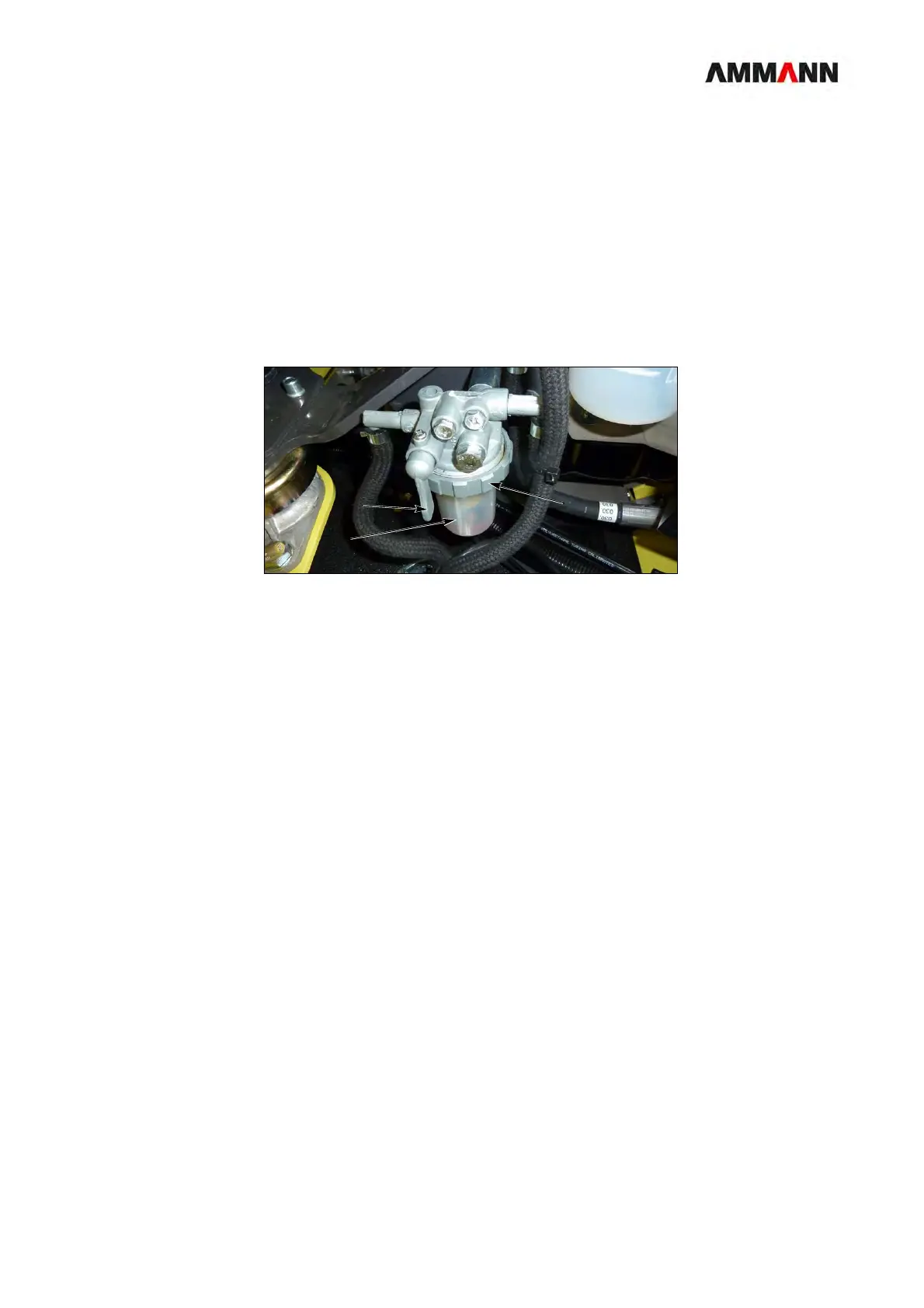

Fig. 9-7 Water separator
Drain filter
housing
If there is water in the filter housing, the housing must be drained at once.
1 Close stop cock (3).
1.1 Move to OFF.
2 Unscrew filter housing and empty.
3 Screw the filter housing on.
4 Open stop cock (3).
4.1 Move to ON.
Clean
filter element
Clean water separator element (1) according to the maintenance plan.
1 Close stop cock (3).
1.1 Move to OFF.
2 Unscrew the filter housing (2).
3 Clean filter element (1).
4 Screw the filter housing (2) on.
5 Open stop cock (3).
5.1 Move to ON.
1
3
2
