NOTE If the roller is not fitted with a revolving warning light, the “revolving warning
light” switch position has no function.

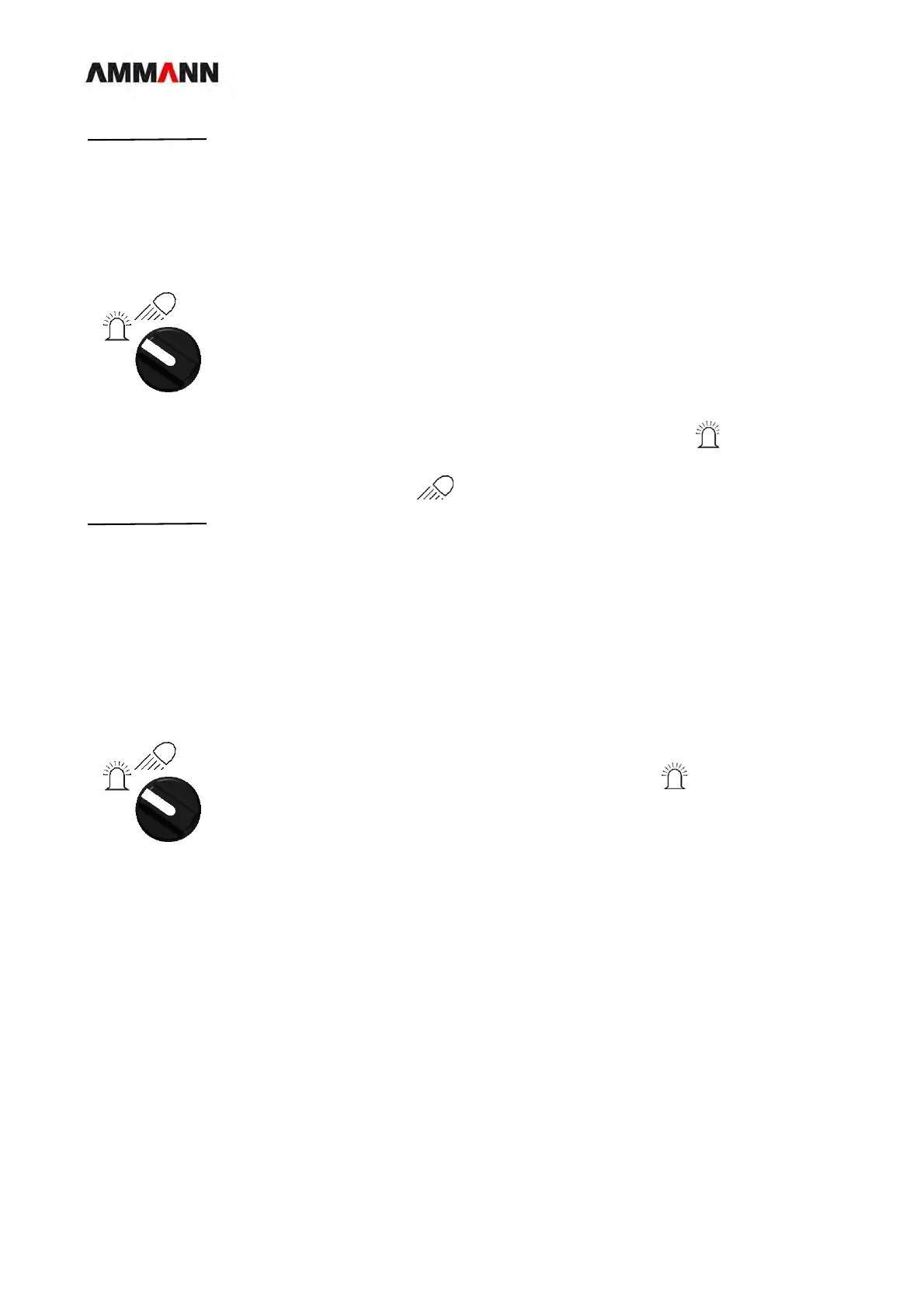

8.7 Working light and revolving warning light
Switching the rear work light, the working light on the ROPS and the revolving
warning light on and off:
1 Turn the switch:
2a to position 0: The work light, the working light and the revolving warning light
are switched off.
2b to position 1: The rear revolving warning light is switched on.
2c to position 2: The rear work light, the working light and the revolving warning
light are switched on.
NOTE If the roller is not fitted with a revolving warning light, only the work light and
the working light are lit.
8.8 Revolving warning light
8.8.1 Switching on the revolving warning light
1 Turn the switch:
2a to position 1: The revolving warning light is switched on.
The roller may be fitted with a revolving warning light, but the corresponding switch
may be missing. In this case the revolving warning light operates continuously as
soon as the ignition key is in position II.
8.8.2 Positions of the revolving warning light
in operation The revolving warning light is located at the rear on the rollover bar (ROPS) during
operation.
not in operation Fold the rollover protection (ROPS) down for transport or during extended periods of
non-use.
1 Move the driver's seat to the center.
2 Fasten the revolving warning light to the mounting on the inner left side of the
rollover bar (ROPS).
Secure the parking brake firmly.
