Repair 127
1201281 A | 24.07.2013

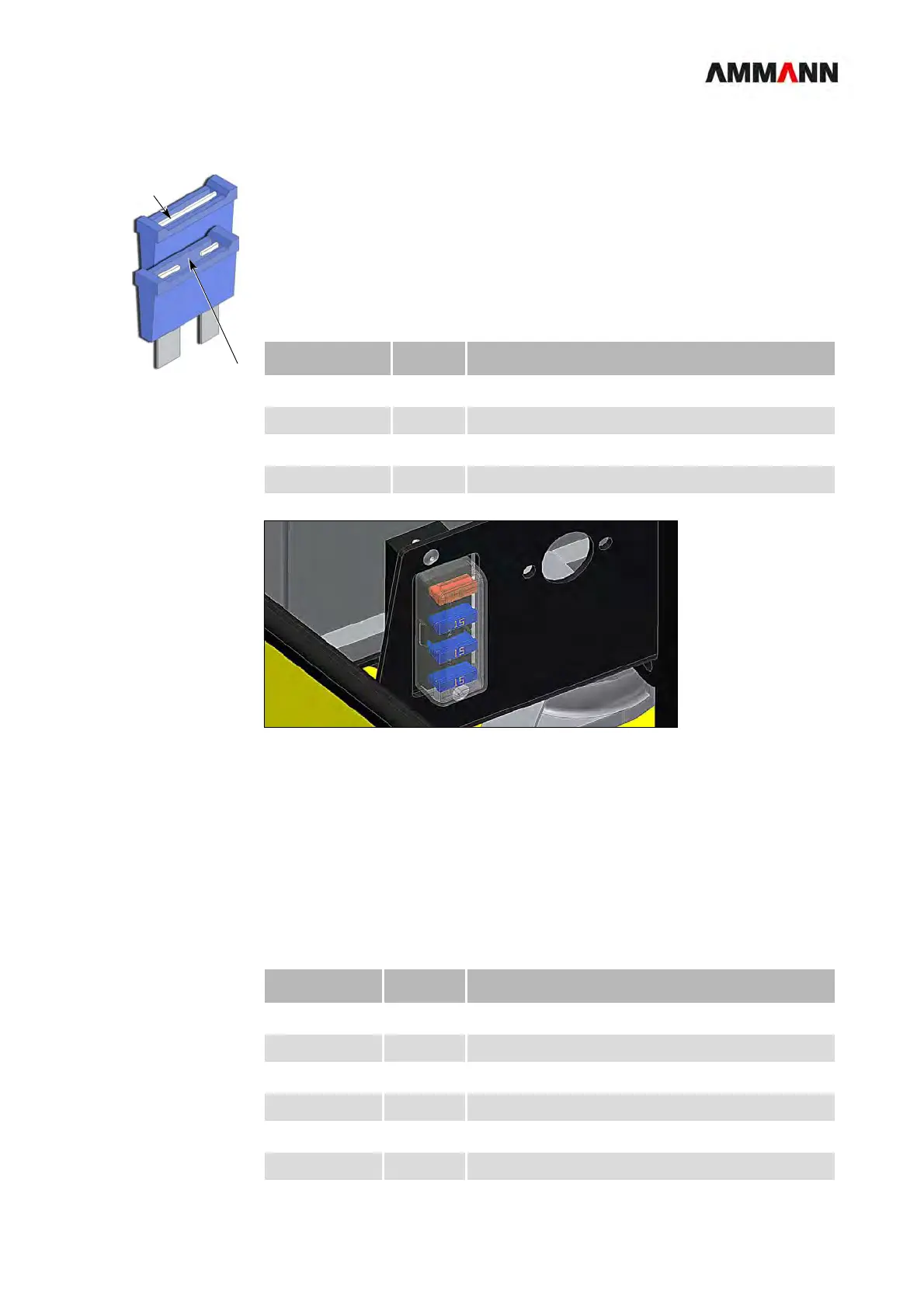

10.2.1 Engine compartment fuses
The fuses are located on the right of the engine, at the front between the engine and
the water tank.
The fuse numbers are indicated on the fuse box.
Always replace a defective fuse (1) with a functioning fuse (2) of the same amperage
(according to the label or color of the fuse).
Tab. 10-1 Engine compartment fuses
Fig. 10-4 Fuses in ARX 1 engine compartment
10.2.2 Steering column fuses
1 Remove the four fastening screws on the fuse box and
2 Remove the cover.
3 Replace the defective fuse.
Tab. 10-2 Steering column fuses
Fuse No. Power Fuse-protected circuit
F21 40 A Pull-in solenoid
F22 15 A Diesel pump, alternator
F23 15 A Reserve
F24 15 A Reserve
Fuse No. Power Fuse-protected circuit
F1 10 A Hazard warning light
F2 7.5 A Parking light, front right, rear left
F3 7.5 A Parking light, front left, rear right
F4 10 A Dipped lights
F5 15 A Revolving warning light, work light
F6 7.5 A Horn
F7 10 A Display unit, blinker, reverse alarm
