Transport 139
1201281 A | 24.07.2013
5 Secure the lock bolt with the compression spring (2).

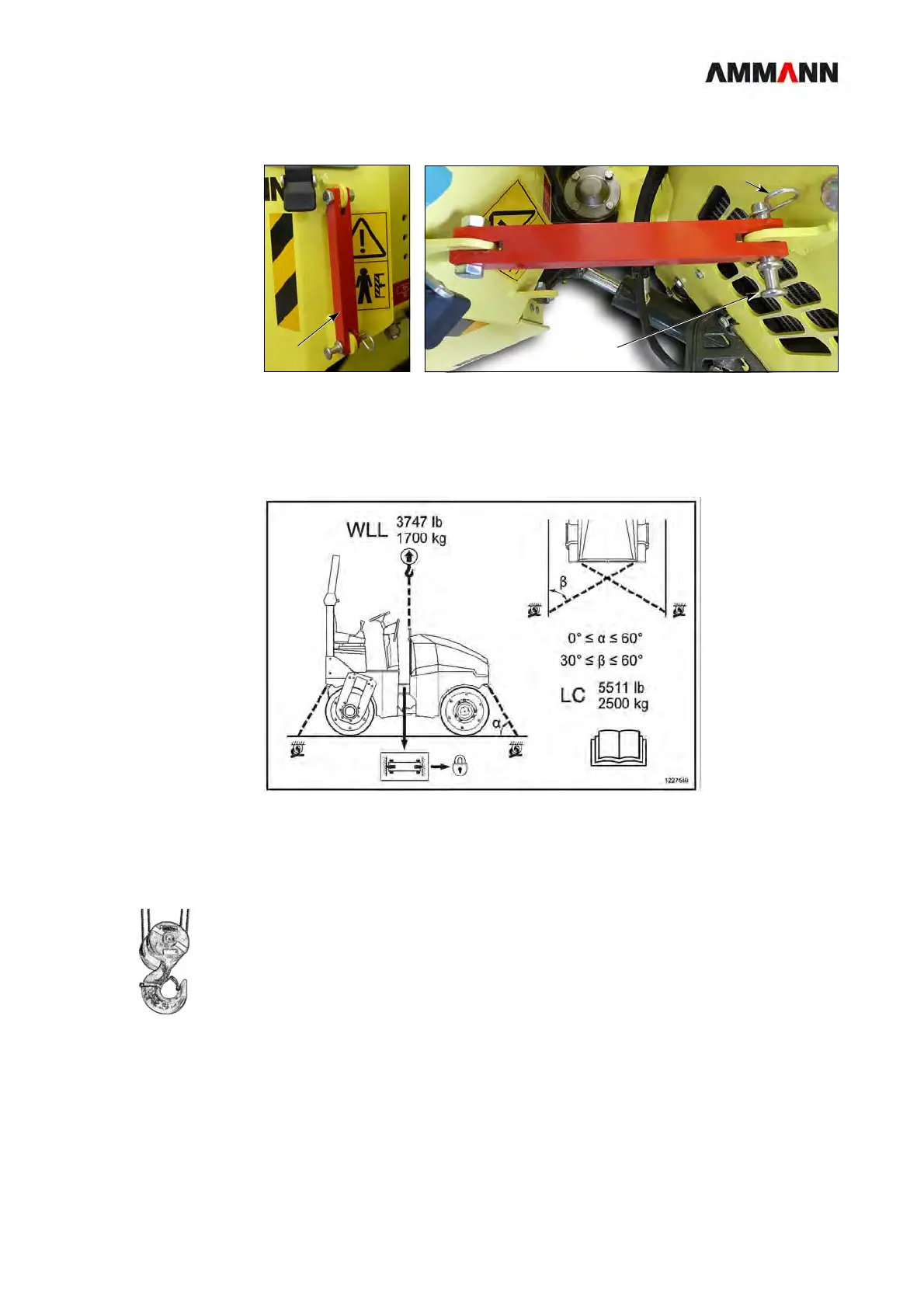

Fig. 12-1 Joint protection open / joint protection locked in place
12.2 Lifting and securing the roller
Fig. 12-2 Stickers for lifting and tie-down points
12.2.1 Lifting at the 1-point lifting eye
1 Bring the joint protection into place.
2 Lift the roller vertically with suitable hoisting tackle.
2.1 Use suitable hoisting tackle having the same length as the ARX 1.
The 1-point lifting eye is designed for a WLL of 1.7 tons (Working Load Limit).
1
3
2
