Options 77
1201281 A | 24.07.2013
8.10 Lockable ROPS
Advantages of a locked ROPS:
● The padlock serves to prevent loss of the threaded bolt.
● Prevent vandalism to the ROPS by third parties.
NOTE Every single lock has its own key. The keys are not interchangeable with each
other.
8.10.1 Mounting the loss-prevention retainers
1 Mount the bolts for the padlocks in a crosswise pattern.
1.1 One in the front and one in the back (see figure to the left)
2 Tighten all screws to the torque indicated.

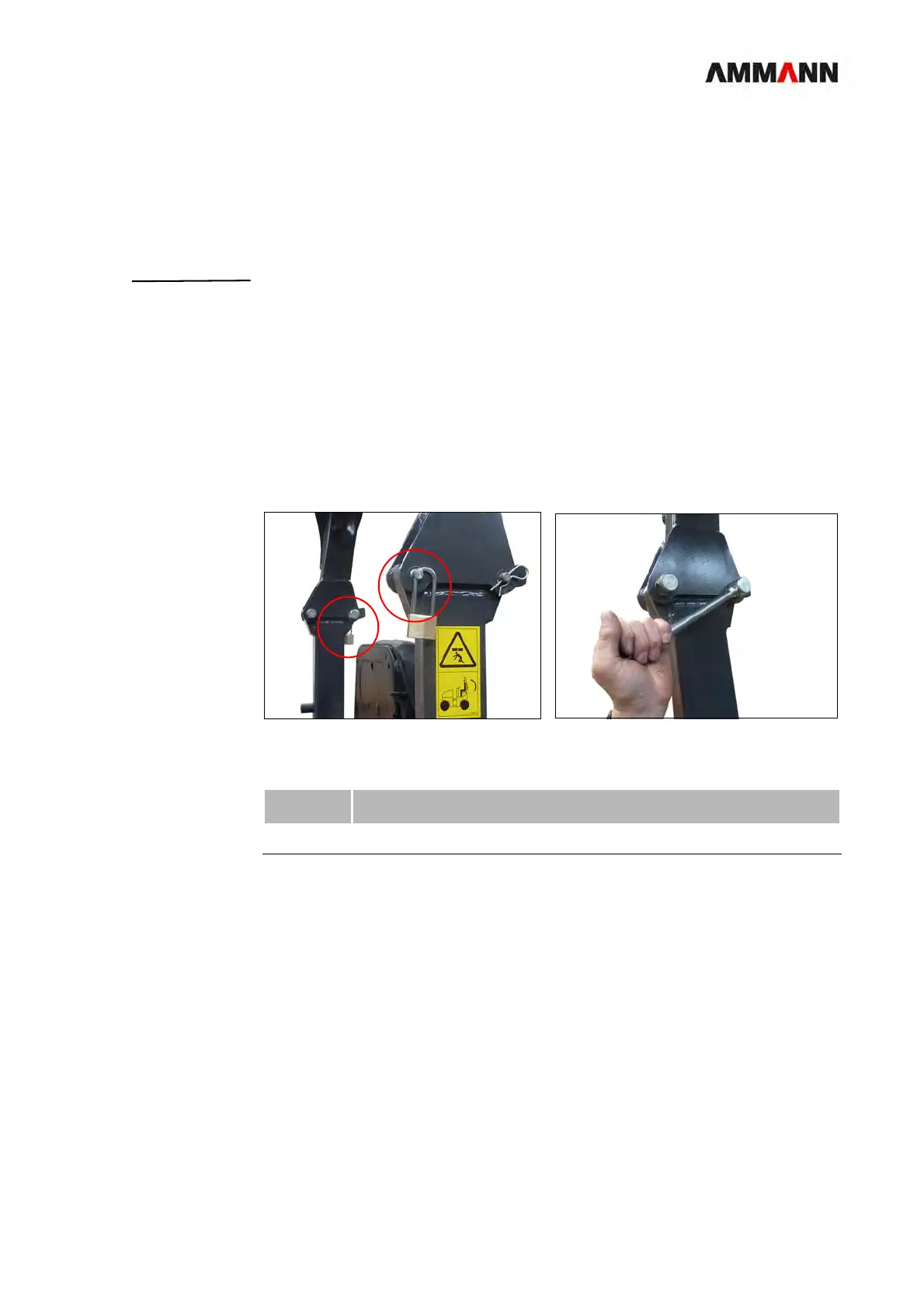

Fig. 8-7 Connecting point
Tab. 8-1 Tightening torques for ROPS upper section fastening bolts
3 Install pins, padlocks and threaded bolts (lifting points).
4 Secure the padlocks firmly using a hook and pile fastener.
Upper section fastening bolts
ARX 1 M18 - S355 147 Nm (30 kg with a lever length of 50 cm)
