Ammann ARX 16 - Engine Compartment Overview

Maintenance 95
1201281 A | 24.07.2013
9.7 Engine compartment overview

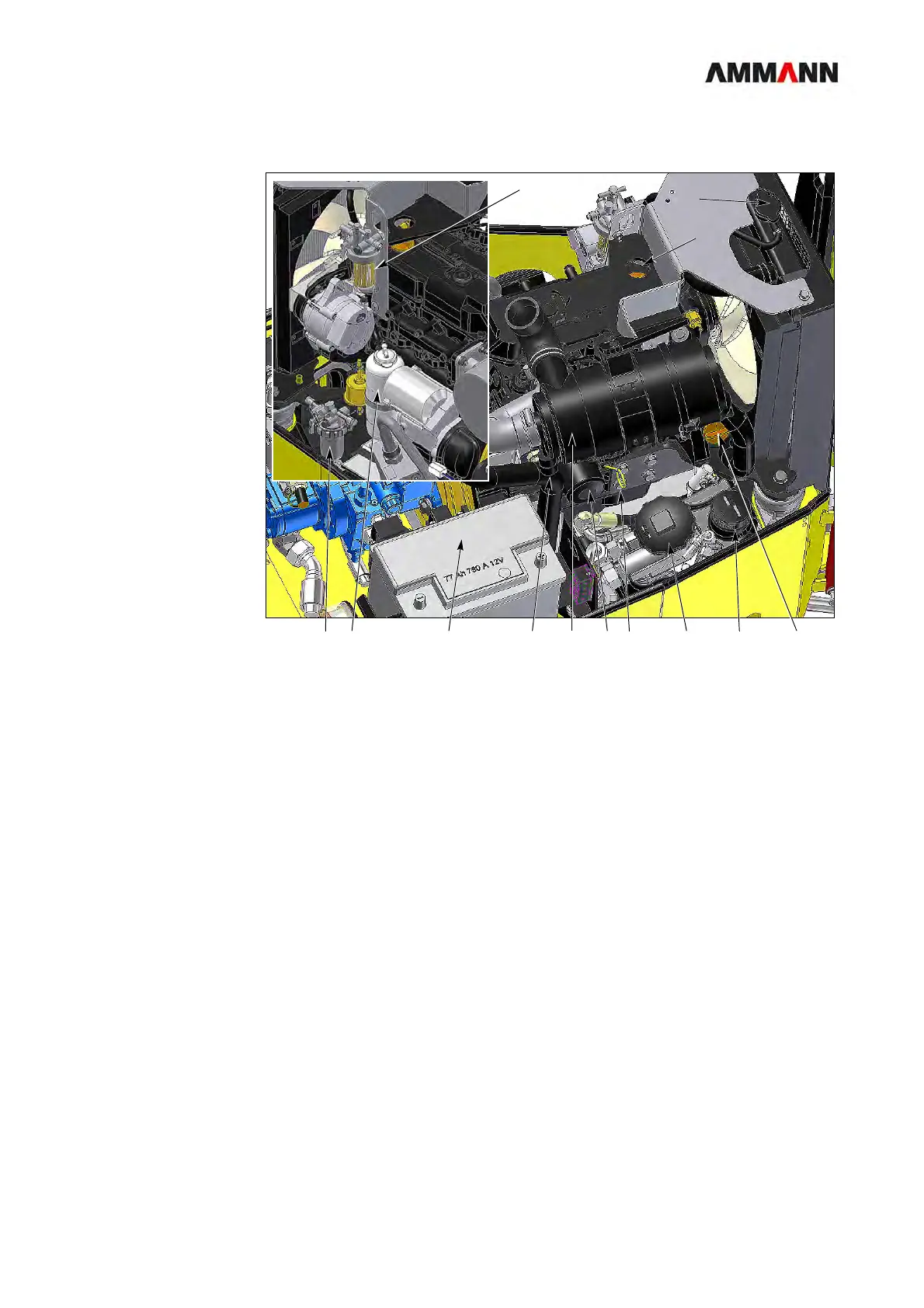

Fig. 9-3 ARX 1 engine compartment
1 Battery
2 Engine oil filler neck
3 Air-intake filter
4 Soiling indicator for air-intake filter
5 Oil dipstick
6 Coolant level display
7 Hydraulic oil filler neck
8 Hydraulic oil filter
9 Engine oil filter
10 Fuel filter
11 Coolant filler neck
12 Water separator
912
4
78
5
61
2
2
3
10
11
