Disposal 145
1201281 A | 24.07.2013

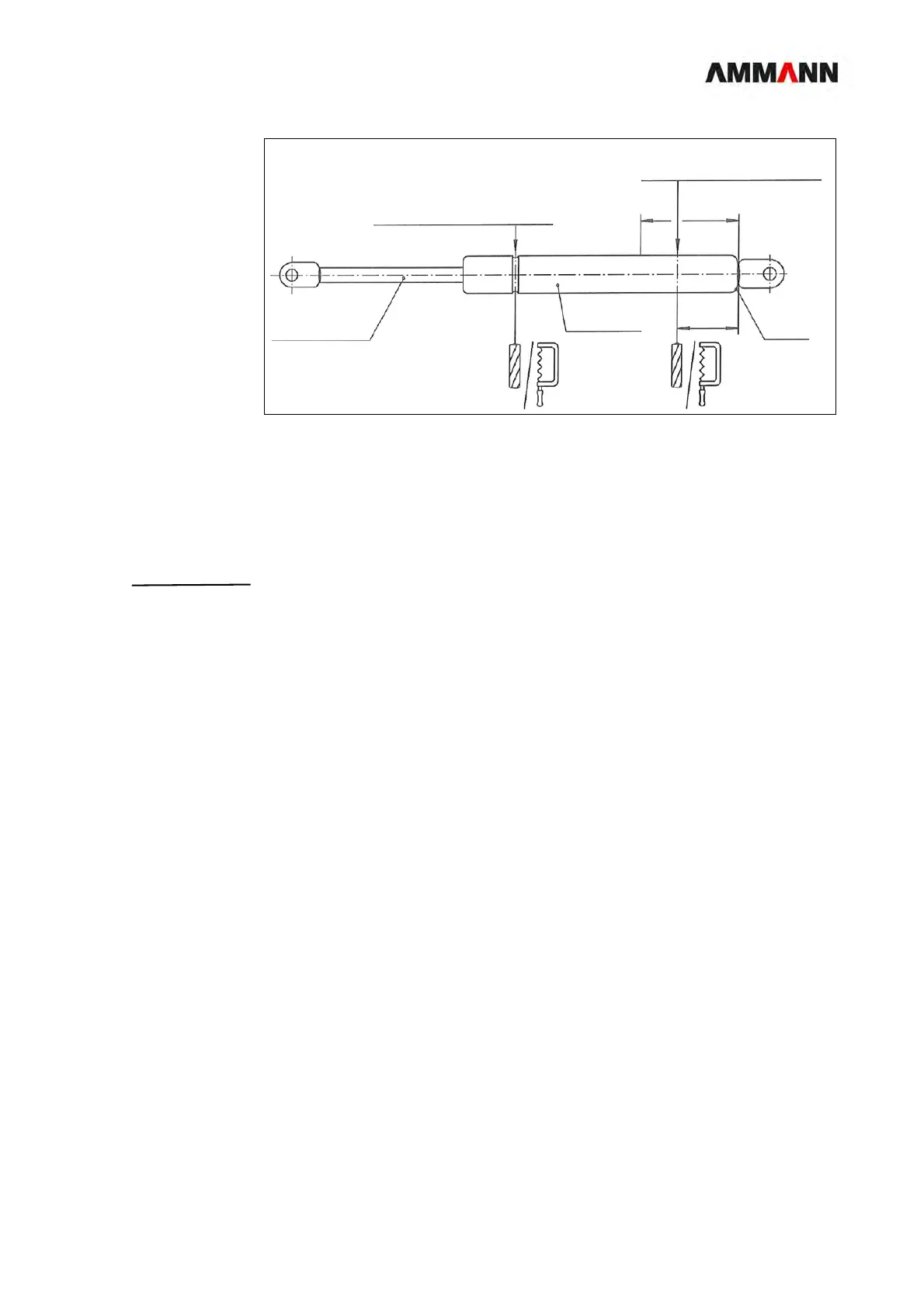

Fig. 13-1 Removal and depressurization of the gas strut
NOTE If disposal according to these regulations is not possible, ask your authorized
dealer.
1st saw cut / hole position: Cut or drill into the pressurized tube about 20mm from
the bottom.
2nd saw cut / hole position: Cut or drill into the pressurized tube in the bead.
2nd saw cut / drilled hole
1st saw cut / drilled hole
Piston rod
Bottom
about 20mm
Pressurized
tube
X
